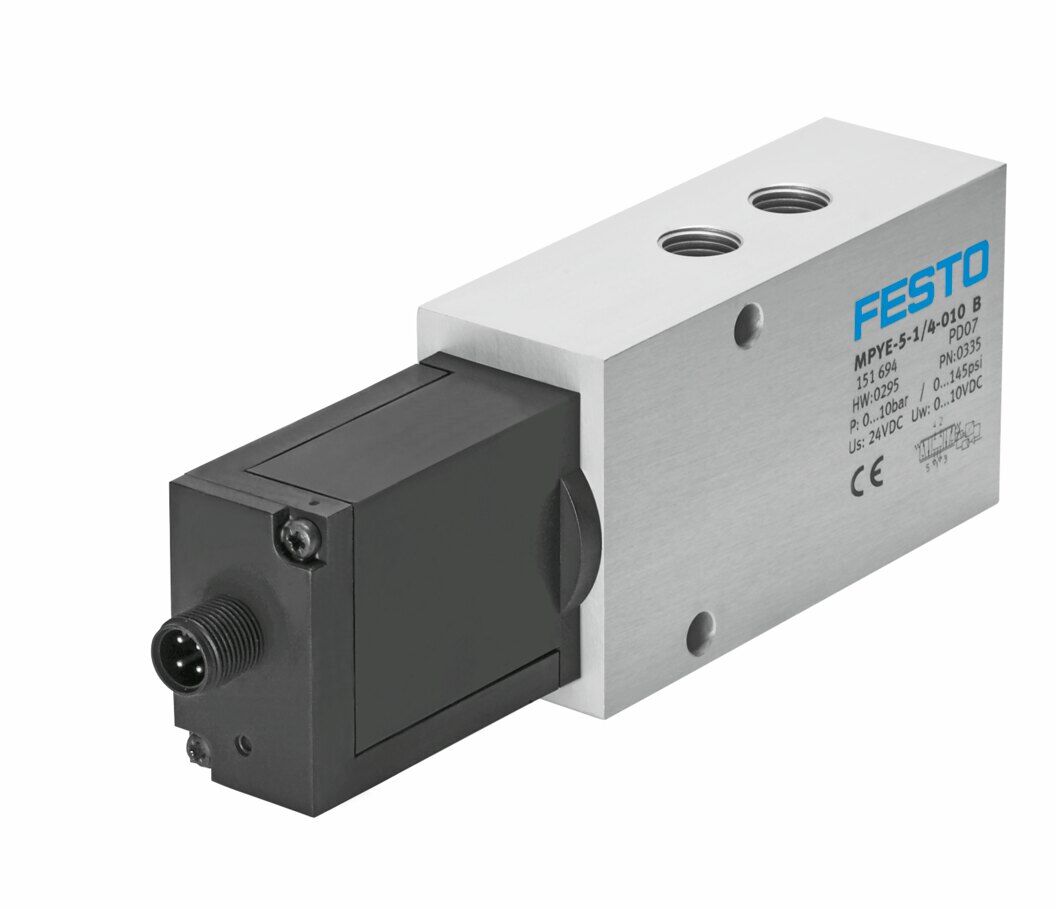

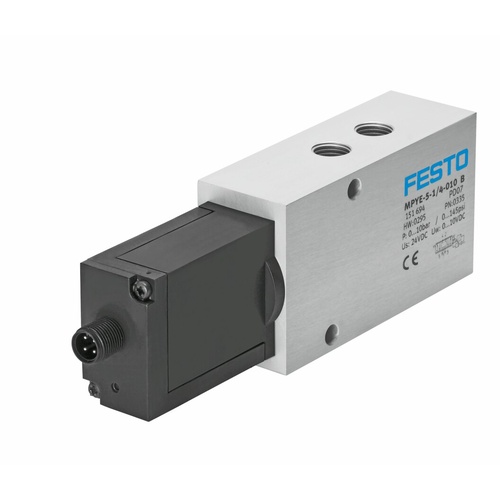

Proportional directional control valve

MPYE-5-3/8-010-B

151695





GTIN: 4052568117085

Valve function
5/3 closed
Pneumatic connection, port 1
G3/8
Standard nominal flow rate (standardised to DIN 1343)
2000 l/min
Operational voltage range DC
17 V - 30 V

Technical Data

  • Nominal size10 mm
  • Type of actuationElectric
  • Sealing principleHard
  • Mounting positionoptional
  • DesignPiston gate valve
  • Type of resetMagnetic spring
  • Safety instructionsSafety position MPYE: if the power supply cable is blocked, the valve assumes the closed mid-position.
  • Type of pilotingDirect
  • Flow directionNon-reversible
  • Symbol00995308
  • Valve function5/3 closed
  • Reverse polarity protectionFor all electrical connections
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • b value0.21
  • C value9 l/sbar
  • Standard nominal flow rate (standardised to DIN 1343)2000 l/min
  • Limit frequency70 Hz
  • Max. hysteresis0.4 %
  • Operational voltage range DC17 V ... 30 V
  • Residual ripple5 %
  • SETPOINT/ACTUAL valuesVoltage type 0 - 10 V
  • ApprovalRCM trademark
  • KC markKC-EMV
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature5 °C ... 40 °C
  • Degree of protectionIP65
  • Ambient temperature0 °C ... 50 °C
  • Product weight685 g
  • Electrical connectionM12x1 Plugs Round design
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Pneumatic connection, port 3G3/8
  • Pneumatic connection, port 4G3/8
  • Pneumatic connection, port 5G3/8
  • Note on materialsRoHS-compliant
  • Material coverABS Coated
  • Material sealsNBR
  • Material housingAluminium Anodised



SKU 151695
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
