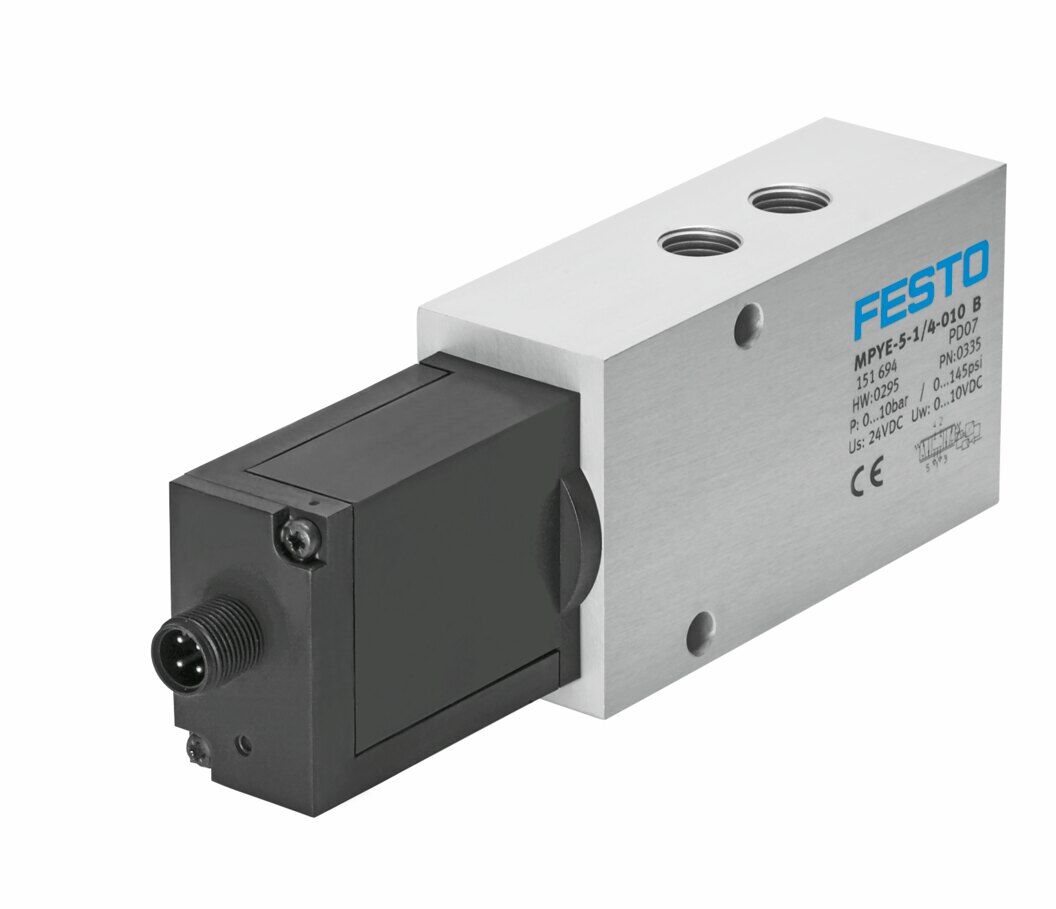

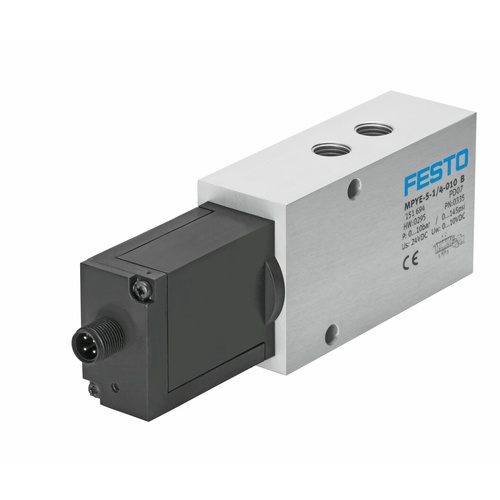

Proportional directional control valve

MPYE-5-M5-420-B

162959





GTIN: 4052568133047

Valve function
5/3-way, closed
Pneumatic connection, port 1
M5
Standard nominal flow rate (standardised to DIN 1343)
100 l/min
Operational voltage range DC
17 V - 30 V

Technical Data

  • Nominal size2 mm
  • Type of actuationElectrical
  • Sealing principleHard
  • Mounting positionAny
  • DesignPiston gate valve
  • Type of resetMagnetic spring
  • Safety instructionsSafety position MPYE: if the power supply cable is blocked, the valve assumes the closed mid-position.
  • Type of pilotingDirect
  • Flow directionNon-reversible
  • Symbol00995308
  • Valve function5/3-way, closed
  • Reverse polarity protectionFor setpoint value
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • b value0.21
  • C value0.45 l/sbar
  • Standard nominal flow rate (standardised to DIN 1343)100 l/min
  • Limit frequency115 Hz
  • Max. hysteresis0.4 %
  • Operational voltage range DC17 V ... 30 V
  • Residual ripple5%
  • SETPOINT/ACTUAL valuesCurrent type 4-20 mA
  • ApprovalRCM
  • KC markKC-EMV
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]
  • Note on operating and pilot mediumLubricated operation not possible
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature5 °C ... 40 °C
  • Degree of protectionIP65
  • Ambient temperature0 °C ... 50 °C
  • Product weight255 g
  • Electrical connectionM12x1 Plug Round design
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1M5
  • Pneumatic connection, port 2M5
  • Pneumatic connection, port 3M5
  • Pneumatic connection, port 4M5
  • Pneumatic connection, port 5M5
  • Note on materialsRoHS compliant
  • Material coverABS coated
  • Material sealsNBR
  • Material housingAluminium anodised
