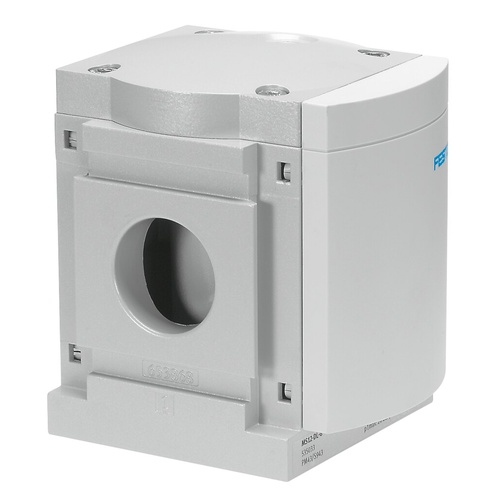

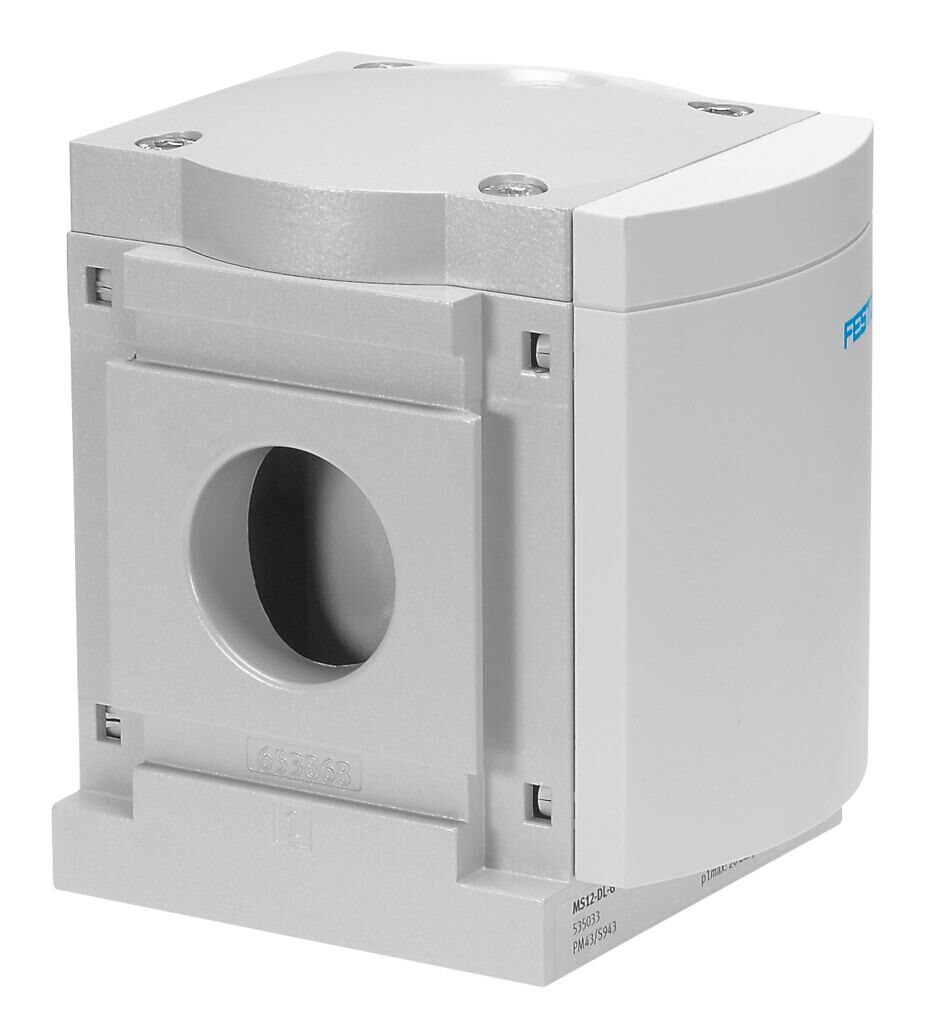

Soft start valve

MS12-DE-G-V24

541498





GTIN: 4052568179700

Pneumatic connection, port 1
Manifold module
Standard nominal flow rate (standardised to DIN 1343)
25000 l/min - 42000 l/min
Operating pressure
3 bar - 16 bar
Type of actuation
Electric

Technical Data

  • Exhaust-air functionWith flow control option
  • Type of actuationElectric
  • Mounting positionoptional
  • Manual overrideDetenting Non-detenting
  • DesignPiston seat
  • Type of resetMechanical spring
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible

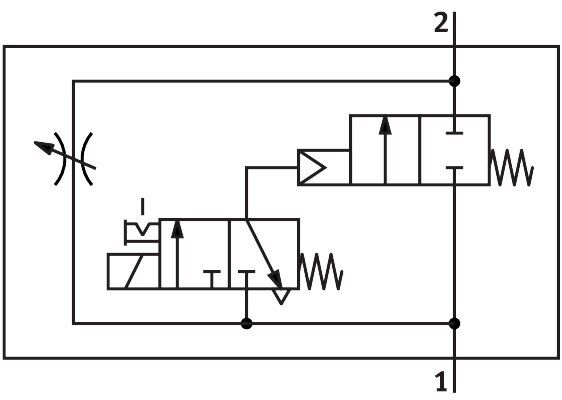

  • Symbol00991501
  • Valve function2/2
  • Switching position indicatorWith accessories
  • Operating pressure3 bar ... 16 bar
  • Standard nominal flow rate (standardised to DIN 1343)25000 l/min ... 42000 l/min
  • Duty cycle100%
  • Characteristic coil data24 V DC: 8.4 W 42 V AC: 50 Hz, pick-up power 14.0 VA, holding power 10.0 VA 42 V AC: 60 Hz, pick-up power 12.0 VA, holding power 7.0 VA
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 50 °C
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 50 °C
  • Product weight3800 g
  • Electrical connectionTo DIN EN 175301-803 Square design
  • Signal status displayWith accessories
  • Type of mountingWith accessories
  • Pneumatic connection, port 1Manifold module
  • Pneumatic connection, port 2Manifold module
  • Material sealsNBR
  • Material housingDie-cast aluminium



SKU 541498
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
