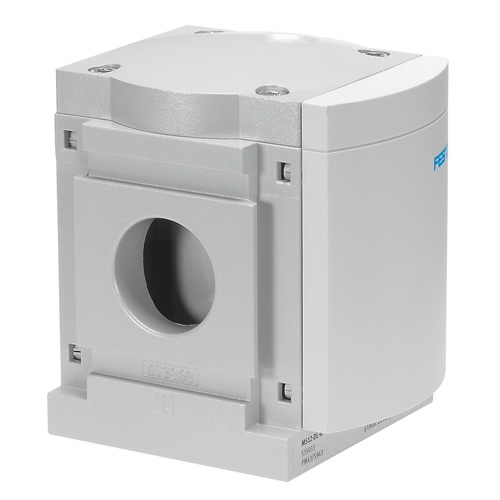

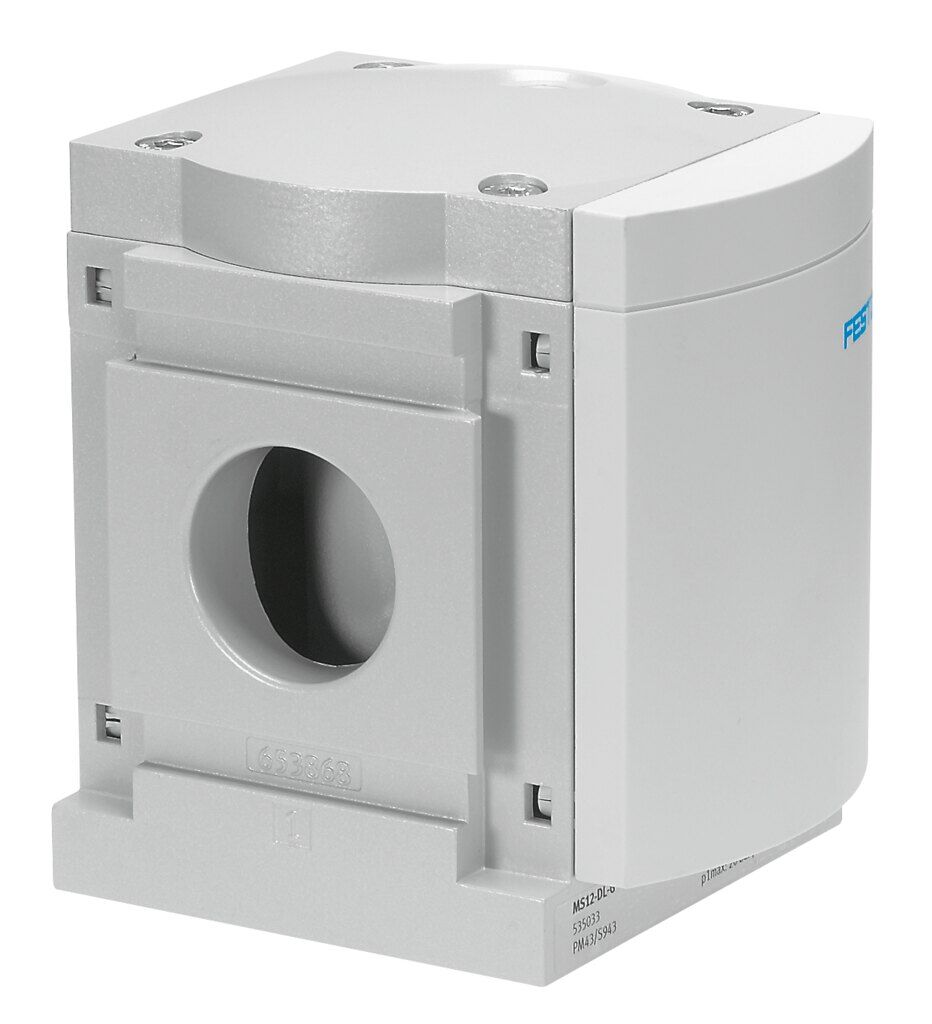

Soft start valve

MS12-DL-G

541497





GTIN: 4052568179694

Pneumatic connection, port 1
Manifold module
Standard nominal flow rate (standardised to DIN 1343)
25000 l/min - 42000 l/min
Operating pressure
2 bar - 20 bar
Type of actuation
Pneumatic

Technical Data

  • Exhaust-air functionWith flow control option
  • Type of actuationPneumatic
  • Mounting positionoptional
  • Manual overrideNone
  • DesignPiston seat
  • Type of resetMechanical spring
  • Type of pilotingDirect
  • Pilot air supplyInternal
  • Flow directionNon-reversible
  • Symbol00991513
  • Valve function2/2
  • Operating pressure2 bar ... 20 bar
  • Standard nominal flow rate (standardised to DIN 1343)25000 l/min ... 42000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight3600 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1Manifold module
  • Pneumatic connection, port 2Manifold module
  • Material sealsNBR
  • Material housingDie-cast aluminium





SKU 541497
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
