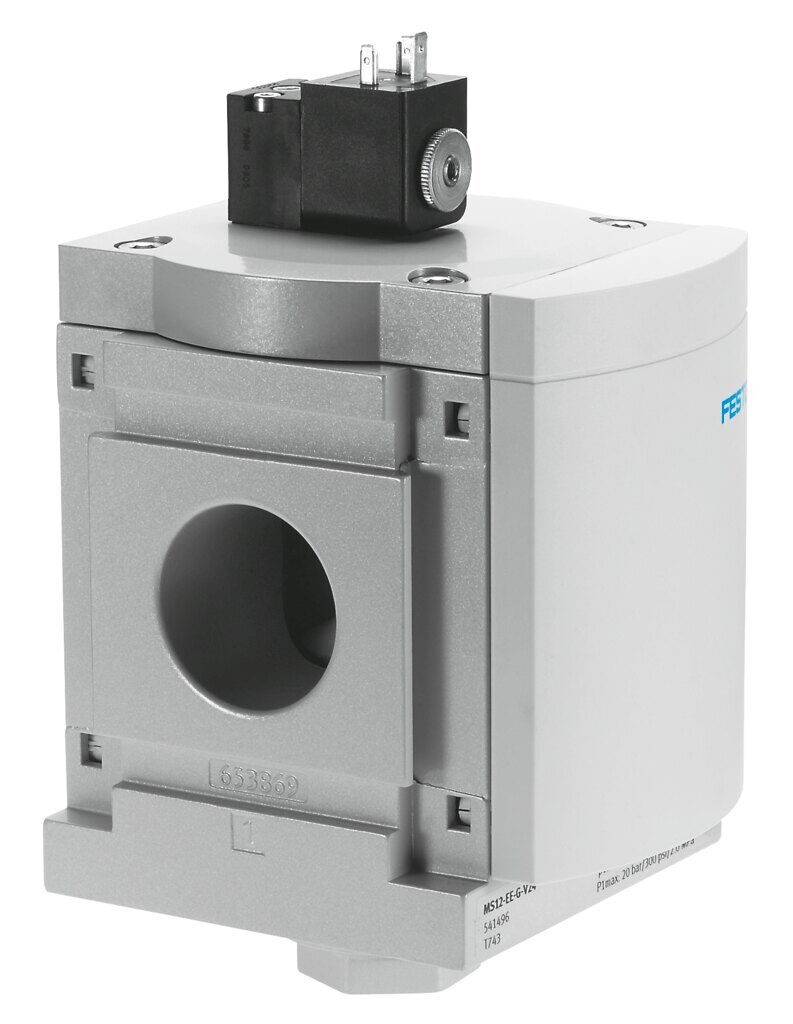

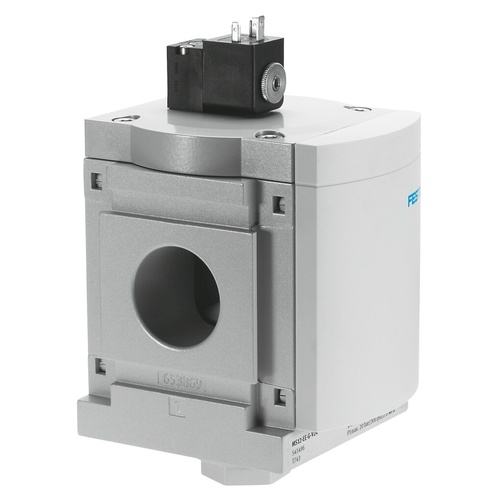

On/off valve

MS12-EE-G-V24

541496





GTIN: 4052568179687

Pneumatic connection, port 1
Manifold module
Standard nominal flow rate (standardised to DIN 1343)
25000 l/min - 32000 l/min
Operating pressure
3 bar - 16 bar
Type of actuation
Electric

Technical Data

  • DesignPiston gate valve
  • Type of actuationElectric
  • Exhaust-air functionWithout flow control option
  • Manual overrideDetenting Non-detenting
  • Type of resetMechanical spring
  • Type of pilotingPilot actuated
  • Symbol00991308
  • Valve function3/2-way, closed, monostable
  • Operating pressure3 bar ... 16 bar
  • lapOverlap
  • Standard nominal flow rate (standardised to DIN 1343)25000 l/min ... 32000 l/min
  • Duty cycle100%
  • Characteristic coil data24 V DC: 4.5 W
  • Permissible voltage fluctuations+/- 10 %
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 50 °C
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 50 °C
  • Type of mountingEither: In-line installation With accessories
  • Mounting positionoptional
  • Flow directionNon-reversible
  • Product weight3800 g
  • Pneumatic connection, port 1Manifold module
  • Pneumatic connection, port 2Manifold module
  • Pneumatic connection, port 3G1
  • Pilot air supplyInternal
  • Electrical connectionTo DIN EN 175301-803 Square design
  • Material sealsNBR
  • Material housingDie-cast aluminium





SKU 541496
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
