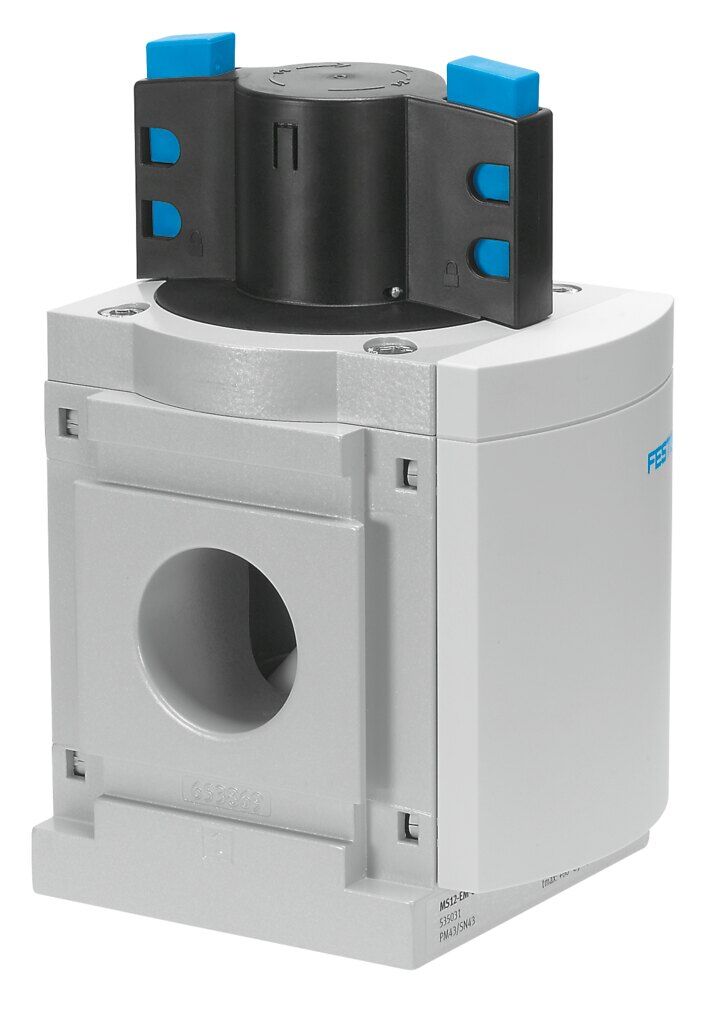

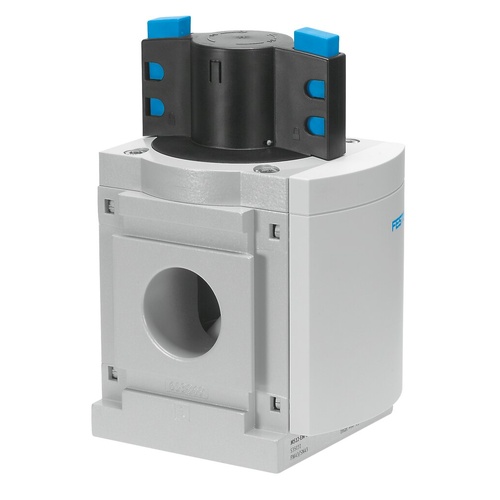

On/off valve

MS12-EM-G

541495





GTIN: 4052568179670


Pneumatic connection, port 1
Manifold module
Standard nominal flow rate (standardised to DIN 1343)
25000 l/min - 32000 l/min
Operating pressure
0 bar - 20 bar
Type of actuation
Manual

Technical Data

  • DesignPiston gate valve
  • Type of actuationManual
  • Exhaust-air functionWithout flow control option
  • Type of pilotingDirect
  • Symbol00991309
  • Valve function3/2 bistable
  • Operating pressure0 bar ... 20 bar
  • lapOverlap
  • Standard nominal flow rate (standardised to DIN 1343)25000 l/min ... 32000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:-:-]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Type of mountingEither: In-line installation With accessories
  • Mounting positionoptional
  • Flow directionNon-reversible
  • Product weight3900 g
  • Pneumatic connection, port 1Manifold module
  • Pneumatic connection, port 2Manifold module
  • Pneumatic connection, port 3G1
  • Pilot air supplyInternal
  • Material sealsNBR
  • Material housingDie-cast aluminium





SKU 541495
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
