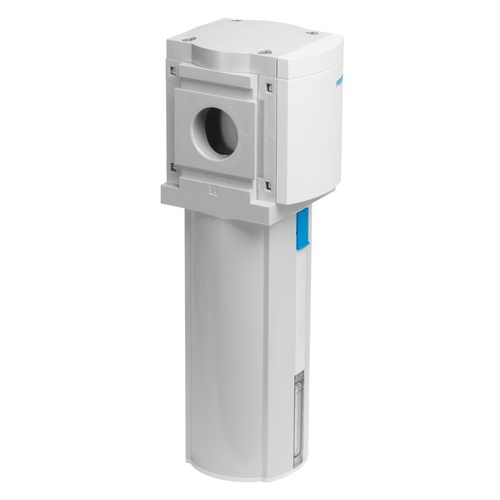

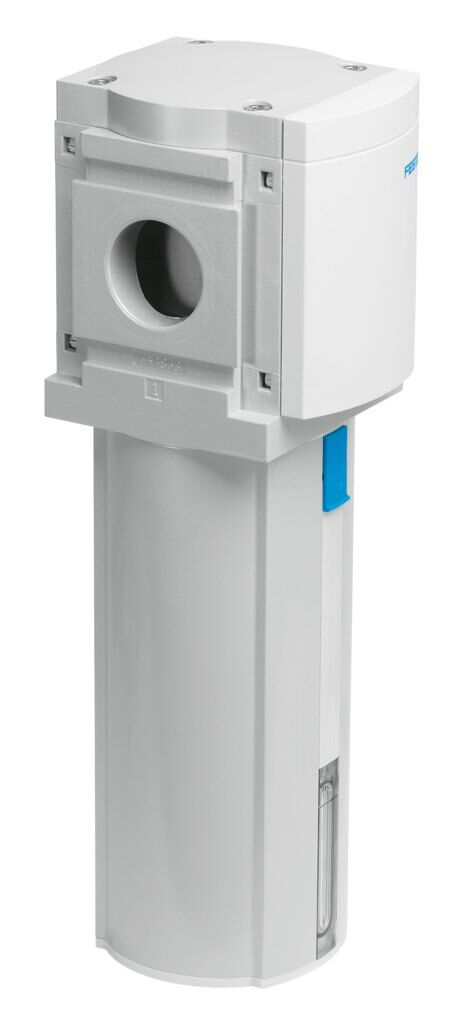

Filter

MS12-LF-G-CUV

537152





GTIN: 4052568172275

Pneumatic connection, port 1
Internal
Standard nominal flow rate (standardised to DIN 1343)
11500 l/min - 14000 l/min
Ambient temperature
5 °C - 60 °C
Operating pressure
2 bar - 12 bar
Grade of filtration
5 µm

Technical Data

  • Size12
  • SeriesMS
  • Mounting positionVertical +/-5°
  • Grade of filtration5 µm
  • Condensate drainManual, non-detenting
  • DesignSintered filter with centrifugal separator
  • Bowl guardIntegrated as metal bowl
  • Degree of condensate separation>75 %
  • Symbol00991519
  • Operating pressure2 bar ... 12 bar
  • Standard nominal flow rate (standardised to DIN 1343)11500 l/min ... 14000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:9:-] Inert gas
  • Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature5 °C ... 60 °C
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [6:8:4]
  • Media temperature5 °C ... 60 °C
  • Ambient temperature5 °C ... 60 °C
  • Pore size5 µm
  • Service-life value≥1000 hrs
  • Product weight7000 g
  • Type of mountingVia mounting bracket
  • Pneumatic connection, port 1Internal
  • Pneumatic connection, port 2Internal
  • Material coveringPA
  • Material sealsNBR
  • Material filterSintered bronze
  • Material housingDie-cast aluminium
  • Material bowlWrought aluminium alloy
  • Material screenPC



SKU 537152
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
