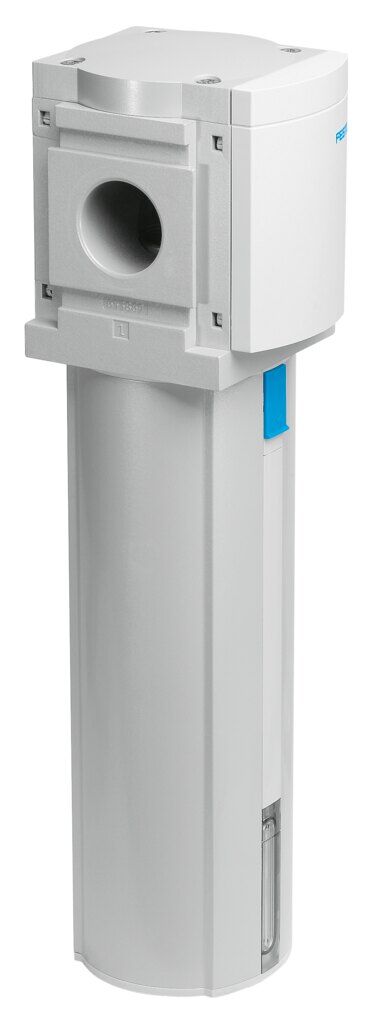

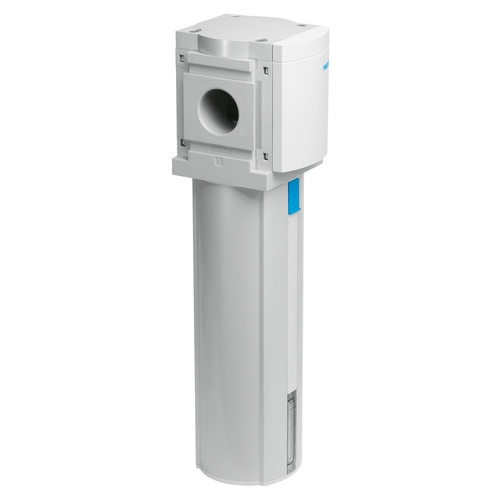

Fine filter

MS12-LFM-G-BUV

537153





GTIN: 4052568172282

Design
Fibre filter
Operating pressure
2 bar - 12 bar
Ambient temperature
5 °C - 60 °C
Grade of filtration
1 µm

Technical Data

  • SeriesMS
  • Size12
  • DesignFibre filter
  • Grade of filtration1 µm
  • Condensate drainManual, non-detenting
  • Symbol00991519
  • Operating pressure0.2 MPa ... 1.2 MPa
  • Operating pressure2 bar ... 12 bar
  • Operating pressure29 psi ... 174 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [6:-:4] Inert gas
  • Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
  • Air purity class at outputCompressed air to ISO 8573-1:2010:[5:-:3]
  • Filter efficiency99.99 %
  • Max. condensate volume400 ml
  • Bowl guardIntegrated as metal bowl
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature5 °C ... 60 °C
  • Ambient temperature5 °C ... 60 °C
  • Storage temperature-10 °C ... 60 °C
  • Filter efficiency, fine particles99 %
  • Residual oil content0.5 mg/m³
  • Filter efficiency, oil aerosol90 %
  • Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • Type of mountingVia mounting bracket
  • Mounting positionVertical +/-5°
  • Material housingDie-cast aluminium
  • Material coveringPA
  • Material filterBorosilicate fibre
  • Material bowlWrought aluminium alloy
  • Material screenPC
  • Material sealsNBR
  • Note on materialsRoHS-compliant
  • Product weight7000 g



SKU 537153
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
