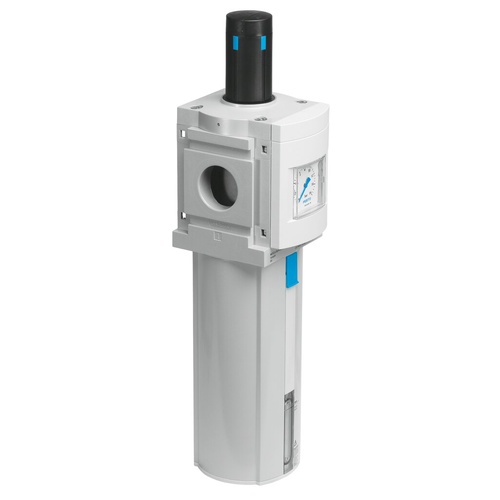

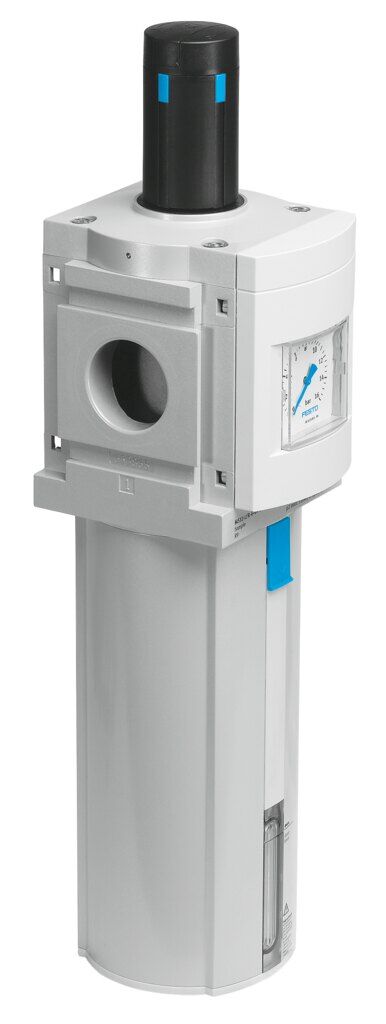

Filter regulator

Technical Data

• Size12
• SeriesMS
• Actuator lockRotary knob with detent can be closed with accessories
• Mounting positionVertical +/-5°
• Grade of filtration40 µm
• Condensate drainManual, non-detenting
• DesignSintered filter with centrifugal separator With condensate drain With secondary exhausting Modular Piloted diaphragm regulator
• Max. condensate volume400 ml
• Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function
• Bowl guardIntegrated as metal bowl
• Degree of condensate separation>75 %

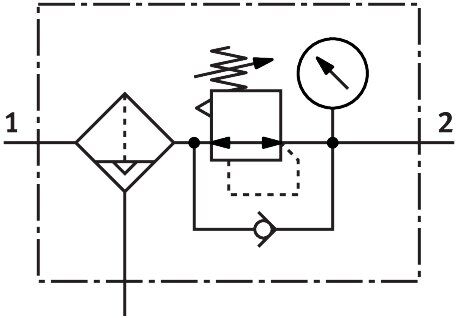

• Symbol00991587
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
• Operating pressure2 bar ... 12 bar
• Pressure regulation range0.5 bar ... 12 bar
• Max. pressure hysteresis0.4 bar
• Flow rate of secondary exhaust500 l/min
• Standard nominal flow rate (standardised to DIN 1343)12000 l/min ... 17000 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:-] Inert gases
• Note on operating and pilot mediumEster oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-10 °C ... 60 °C
• Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
• Media temperature5 °C ... 60 °C
• Ambient temperature5 °C ... 60 °C
• Pore size40 µm
• Product weight7000 g
• Type of mountingVia mounting bracket
• Pneumatic connection, port 1Internal
• Pneumatic connection, port 2Internal
• Material coveringPA
• Material spin discPOM
• Material filter carrierPOM
• Material sight glass metal bowlPC
• Material control panelPA-reinforced POM
• Material sealsNBR
• Material springSpring steel
• Material filterSintered bronze
• Material housingDie-cast aluminium
• Material membraneNBR
• Material bowlWrought aluminium alloy
• Material separating platePOM
• Material valve stemWrought aluminium alloy NBR High-alloy stainless steel
• Material stabilization discPOM
