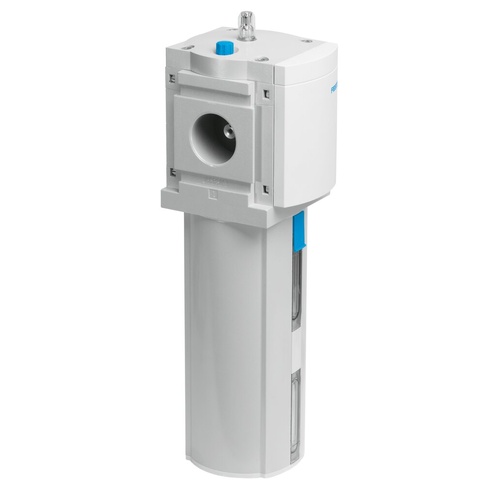

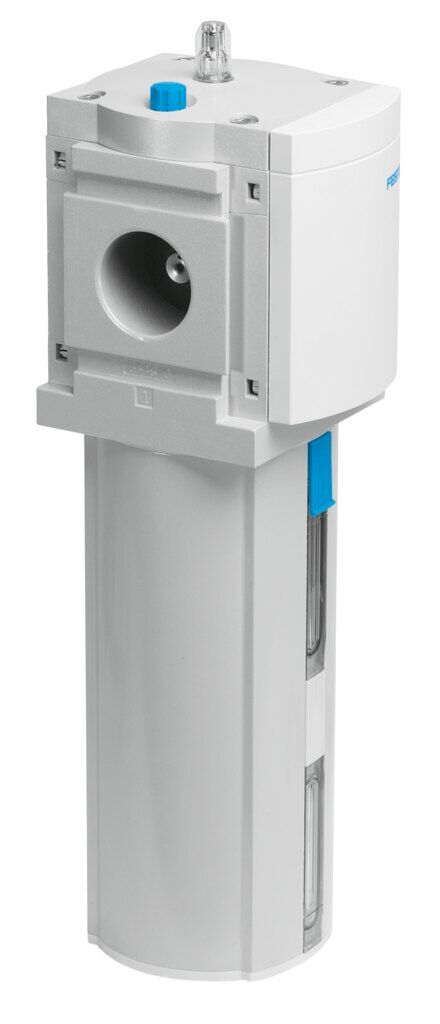

Lubricator

MS12-LOE-G-U

537156





GTIN: 4052568172312

Pneumatic connection, port 1
Internal
Standard nominal flow rate (standardised to DIN 1343)
20000 l/min - 22000 l/min
Operating pressure
1 bar - 16 bar
Min. flow rate for lubricator function
400 l/min

Technical Data

  • Size12
  • SeriesMS
  • Mounting positionVertical +/-5°
  • DesignProportional standard mist lubricator
  • Max. oil capacity1500 cm³
  • Bowl guardIntegrated as metal bowl
  • Symbol00991532
  • Operating pressure1 bar ... 16 bar
  • Min. flow rate for lubricator function400 l/min
  • Standard nominal flow rate (standardised to DIN 1343)20000 l/min ... 22000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Media temperature0 °C ... 60 °C
  • Oil viscosityISO VG 32
  • Ambient temperature0 °C ... 60 °C
  • Product weight6500 g
  • Type of mountingVia mounting bracket
  • Pneumatic connection, port 1Internal
  • Pneumatic connection, port 2Internal
  • Material coveringPA
  • Material sealsNBR
  • Material housingDie-cast aluminium
  • Material bowlWrought aluminium alloy





SKU 537156
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
