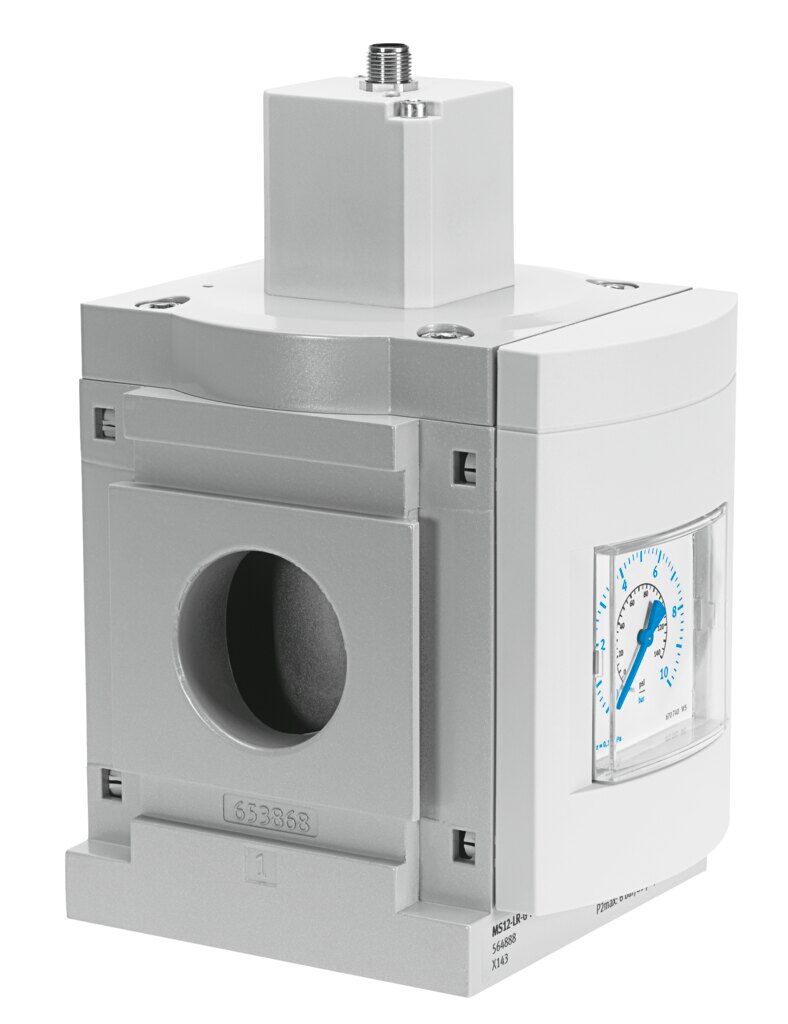

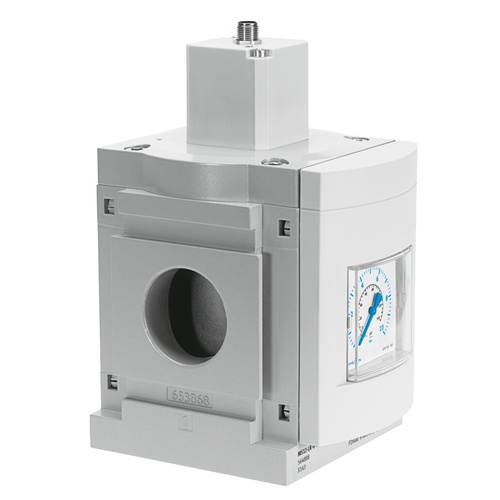

Pressure regulator

MS12-LR-G-PE6

564888





GTIN: 4052568211882

Pneumatic connection, port 1
Sub-base
Standard nominal flow rate (standardised to DIN 1343)
12000 l/min - 21000 l/min
Pressure regulation range
0.15 bar - 6 bar
Max. pressure hysteresis
0.04 bar

Technical Data

  • Size12
  • SeriesMS
  • Mounting positionoptional
  • DesignPiloted diaphragm regulator
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function

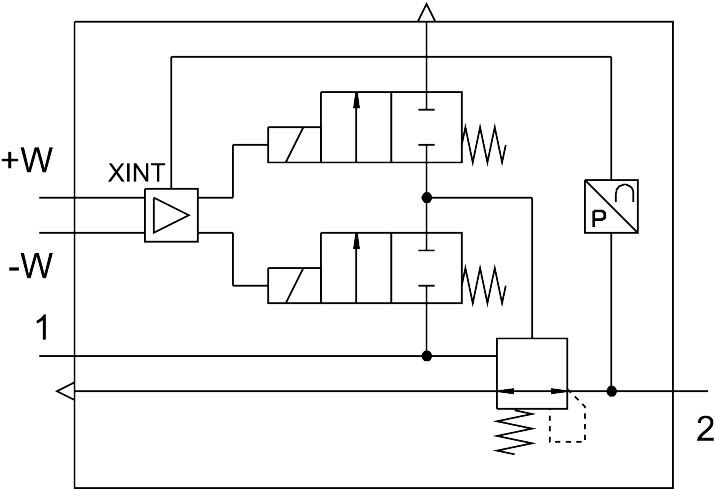

  • Symbol00991856
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.115 MPa ... 0.8 MPa
  • Operating pressure1.15 bar ... 8 bar
  • Pressure regulation range0.15 bar ... 6 bar
  • Max. pressure hysteresis0.004 MPa
  • Max. pressure hysteresis0.04 bar
  • Max. pressure hysteresis0.58 psi
  • Flow rate of secondary exhaust≤600 l/min
  • Standard nominal flow rate (standardised to DIN 1343)12000 l/min ... 21000 l/min
  • Operational voltage range DC21.6 V ... 26.4 V
  • Max. electrical power consumption3.6 W
  • Max. current consumption0.15 A
  • Nominal operating voltage DC24 V
  • Residual ripple10 %
  • Signal range analogue input0 - 10 V
  • KC markKC-EMV
  • CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Media temperature10 °C ... 50 °C
  • Degree of protectionIP65
  • Ambient temperature10 °C ... 50 °C
  • Product weight4000 g
  • Type of mountingVia mounting bracket
  • Pneumatic connection, port 1Sub-base
  • Pneumatic connection, port 2Sub-base
  • Material coveringPA
  • Note on materialsRoHS-compliant
  • Material underneath coverWrought aluminium alloy
  • Material sealsNBR
  • Material springSpring steel
  • Material housingDie-cast aluminium
  • Material membraneNBR
  • Material valve stemWrought aluminium alloy NBR High-alloy stainless steel





SKU 564888
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
