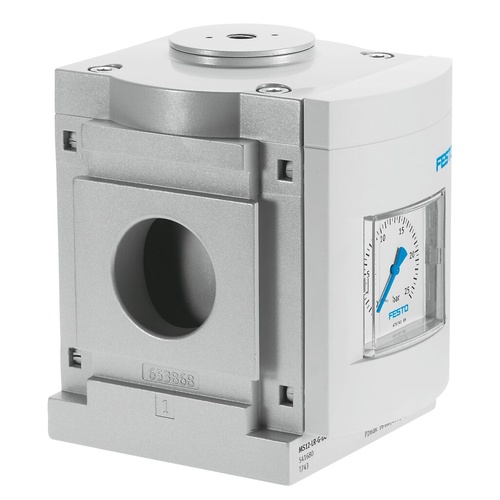

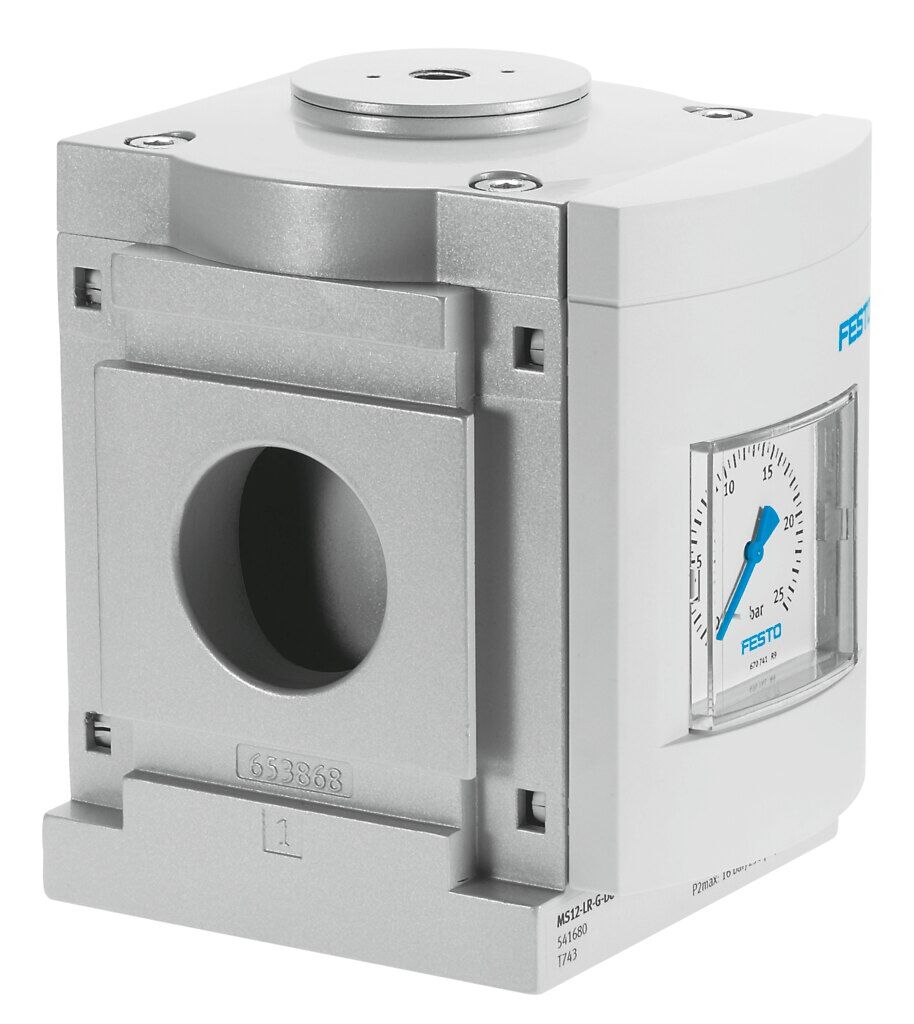

Pressure regulator

MS12-LR-G-PO

541680





GTIN: 4052568179748

Pneumatic connection, port 1
Sub-base
Standard nominal flow rate (standardised to DIN 1343)
13000 l/min - 22000 l/min
Pressure regulation range
0.5 bar - 16 bar
Max. pressure hysteresis
0.4 bar

Technical Data

  • Size12
  • SeriesMS
  • Mounting positionoptional
  • DesignDiaphragm regulator
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function
  • Symbol00991900
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.08 MPa ... 2.1 MPa
  • Operating pressure0.8 bar ... 21 bar
  • Pressure regulation range0.5 bar ... 16 bar
  • Max. pressure hysteresis0.04 MPa
  • Max. pressure hysteresis0.4 bar
  • Max. pressure hysteresis5.8 psi
  • Flow rate of secondary exhaust≤600 l/min
  • Standard nominal flow rate (standardised to DIN 1343)13000 l/min ... 22000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight4000 g
  • Type of mountingVia mounting bracket
  • Pilot air port 12G1/4
  • Pneumatic connection, port 1Sub-base
  • Pneumatic connection, port 2Sub-base
  • Material coveringPA
  • Note on materialsRoHS-compliant
  • Material underneath coverWrought aluminium alloy
  • Material sealsNBR
  • Material springSpring steel
  • Material housingDie-cast aluminium
  • Material membraneNBR
  • Material valve stemWrought aluminium alloy NBR High-alloy stainless steel



SKU 541680
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
