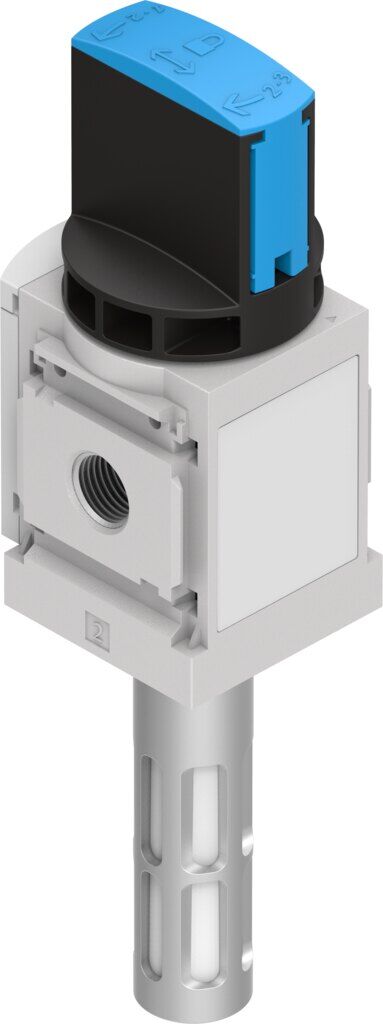

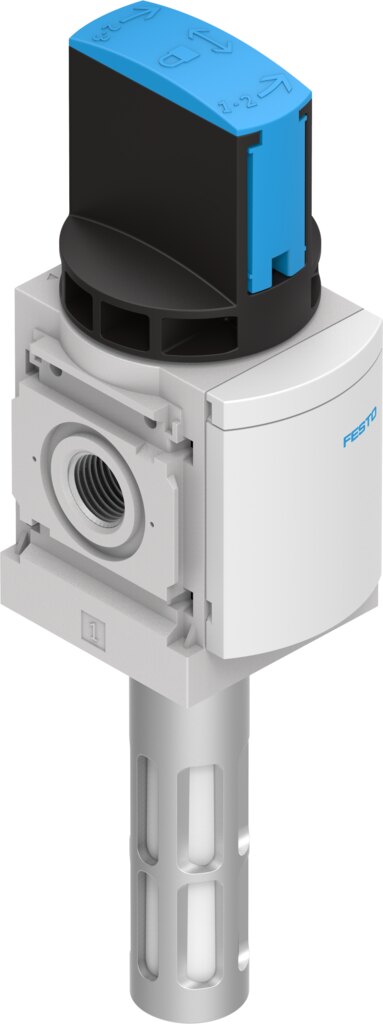

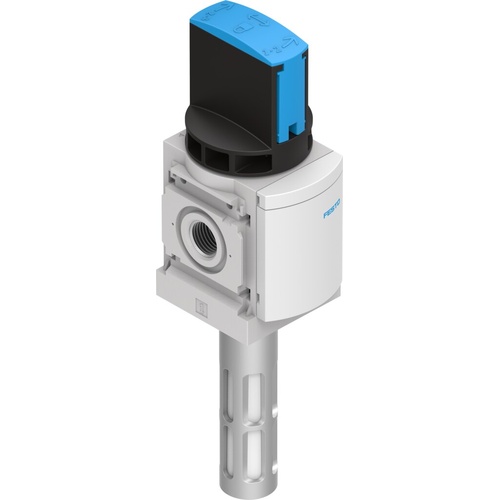

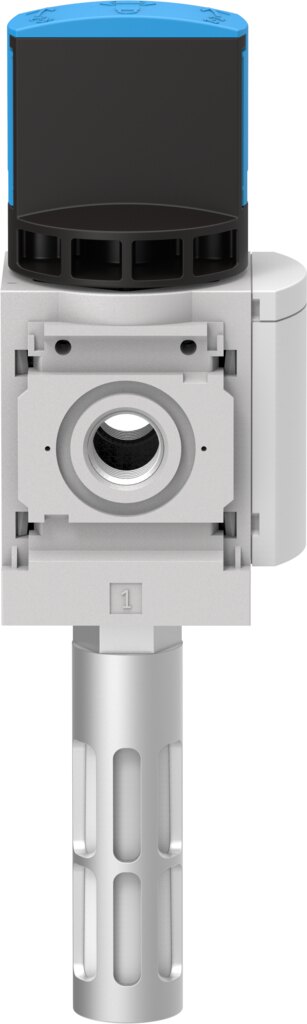

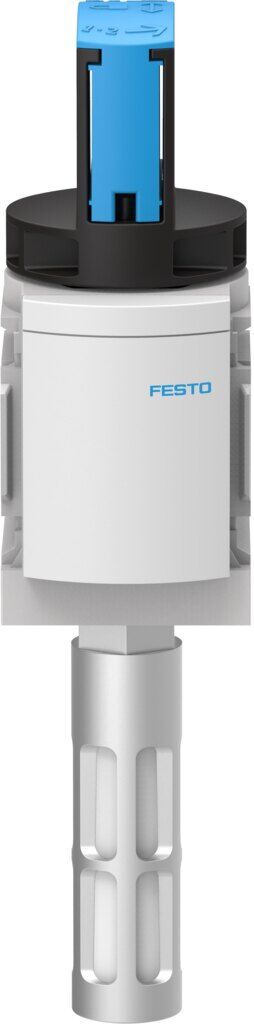

On/off valve

MS6-EM1-1/2-S

541268

Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
8700 l/min
Operating pressure
0 bar - 18 bar
Type of actuation
Manual

On/off valve

Technical Data

  • DesignRotary gate valve
  • Type of actuationManual
  • Exhaust-air functionWithout flow control option
  • Type of pilotingDirect
  • Symbol00991670
  • Valve function3/2 bistable
  • Operating pressure0 bar ... 18 bar
  • C value30.8 l/sbar
  • b value0.57
  • Standard nominal flow rate (standardised to DIN 1343)8700 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Note on materialsRoHS-compliant
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Type of mountingWith accessories
  • Mounting positionoptional
  • Flow directionNon-reversible
  • Product weight655 g
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Pneumatic connection, port 3Integrated silencer Not ducted
  • Material sealsTPE-U(PU)
  • Material housingDie-cast aluminium

GTIN: 4052568007218

Downloads



MS_START_UP_EXHAUST_VALVES_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts



Pneumatic connection, port 1 G1/2

Standard nominal flow rate (standardised to DIN 1343) 8700 l/min

Operating pressure 0 bar - 18 bar

Type of actuation Manual

On/off valve

SKU 541268
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
