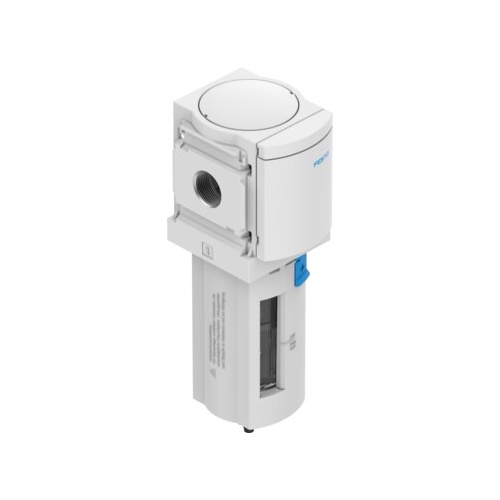

Filter

MS6-LF-3/8-ERV

529649





GTIN: 4052568164119

Pneumatic connection, port 1
G3/8
Standard nominal flow rate (standardised to DIN 1343)
3800 l/min
Ambient temperature
-10 °C - 60 °C
Operating pressure
2 bar - 12 bar
Grade of filtration
40 µm

Technical Data

  • Size6
  • SeriesMS
  • Mounting positionVertical +/-5°
  • Grade of filtration40 µm
  • Condensate drainManual, non-detenting
  • DesignSintered filter with centrifugal separator
  • Bowl guardPlastic bowl guard
  • Degree of condensate separation>75 %
  • Symbol00991520
  • Operating pressure2 bar ... 12 bar
  • Standard nominal flow rate (standardised to DIN 1343)3800 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:9:-] Inert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4]
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Pore size<40 µm
  • Product weight600 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material filterPE
  • Material housingDie-cast aluminium
  • Material bowlPC
  • Material separating platePOM



SKU 529649
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
