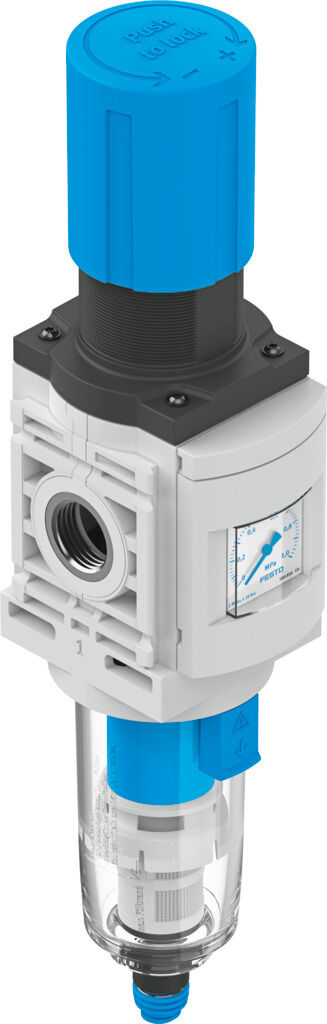

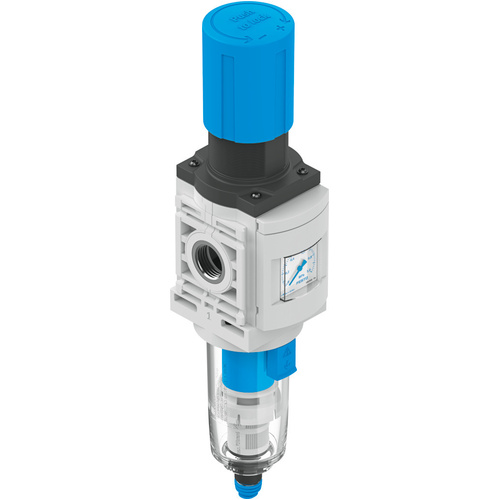

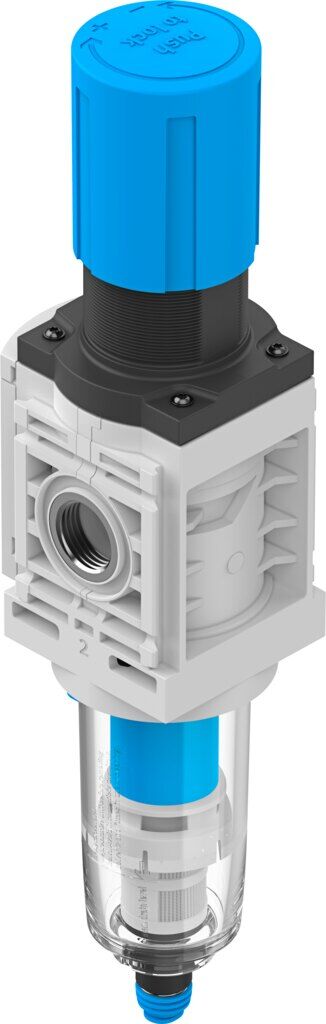

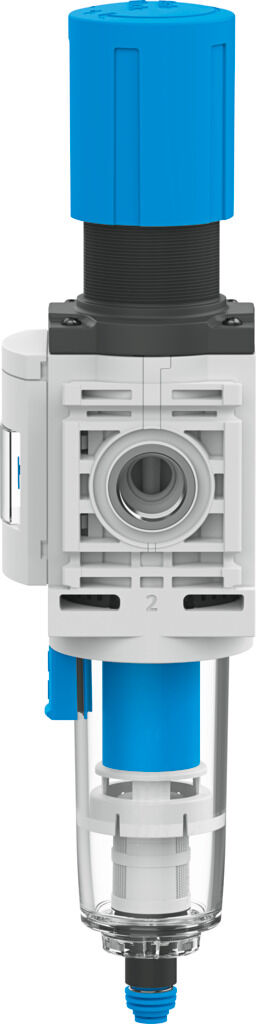

Filter regulator

MS6-LFR-1/2-D6-C-P-VC-AG-MPA-B

8098302





GTIN: 4052568569655

Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
4750 l/min
Pressure regulation range
0.3 bar - 7 bar
Max. pressure hysteresis
0.35 bar

Technical Data

  • Size6
  • SeriesMS
  • Actuator lockRotary knob with detent
  • Mounting positionVertical +/-5°
  • Grade of filtration5 µm
  • Condensate drainManual, non-detenting
  • DesignDirectly actuated piston regulator
  • Max. condensate volume27.3 ml
  • Controller functionOutput pressure constant With secondary venting With return flow function
  • Degree of condensate separation>75 %

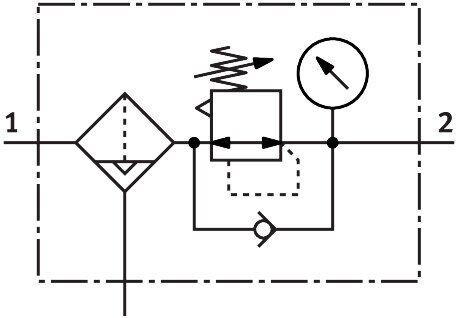

  • Symbol00991587
  • Displayable unitsMPa
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.2 MPa ... 1 MPa
  • Operating pressure2 bar ... 10 bar
  • Pressure regulation range0.3 bar ... 7 bar
  • Max. pressure hysteresis0.035 MPa
  • Max. pressure hysteresis0.35 bar
  • Max. pressure hysteresis5.075 psi
  • Standard nominal flow rate (standardised to DIN 1343)4750 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumCompatibility with ester oil not guaranteed
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
  • Storage temperature-5 °C ... 50 °C
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [6:4:4]
  • Media temperature5 °C ... 50 °C
  • Ambient temperature5 °C ... 50 °C
  • Pore size5 µm
  • Product weight589 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material rotary knobPOM
  • Material springHigh-alloy steel Galvanised steel
  • Material filterPE
  • Material housingPA-reinforced
  • Material bowlPC
  • Material valve stemPOM





SKU 8098302
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
