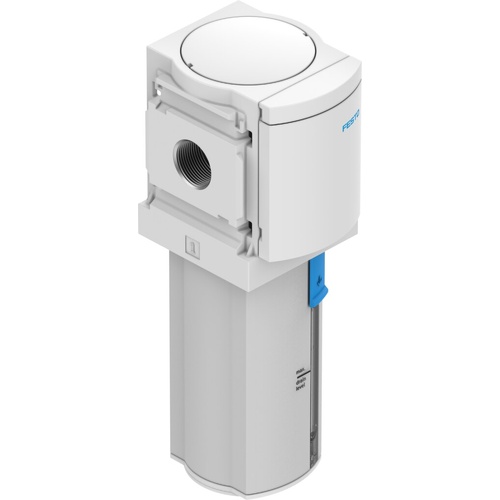

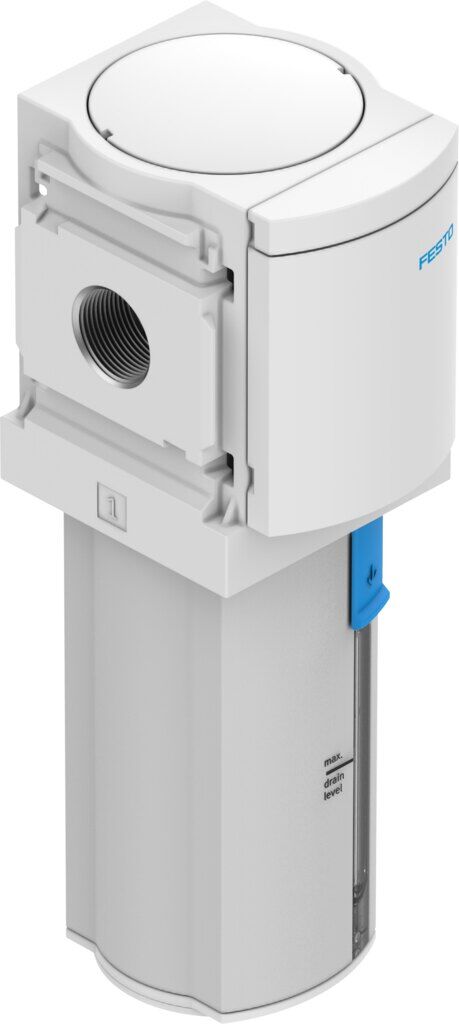

Activated carbon filter

MS6-LFX-1/4-U

529685





GTIN: 4052568164263

Pneumatic connection, port 1
G1/4
Max. standard flow rate for clean air class
900 l/min
Ambient temperature
-10 °C - 60 °C
Operating pressure
0 bar - 20 bar
Design
Activated carbon filter

Technical Data

  • Size6
  • SeriesMS
  • Mounting positionVertical +/-5°
  • DesignActivated carbon filter
  • Bowl guardIntegrated as metal bowl
  • Symbol00991519
  • Operating pressure0 bar ... 20 bar
  • Max. standard flow rate for clean air class900 l/min
  • Operating mediumCompressed air according to ISO 8573-1:2010 [3:4:2]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Air purity class at outputCompressed air according to ISO 8573-1:2010 [3:4:1]
  • Media temperature5 °C ... 30 °C
  • Residual oil content0.003 mg/m³
  • Ambient temperature-10 °C ... 60 °C
  • Product weight820 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Note on materialsRoHS-compliant
  • Material filterActivated carbon
  • Material housingDie-cast aluminium
  • Material bowlWrought aluminium alloy









SKU 529685
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
