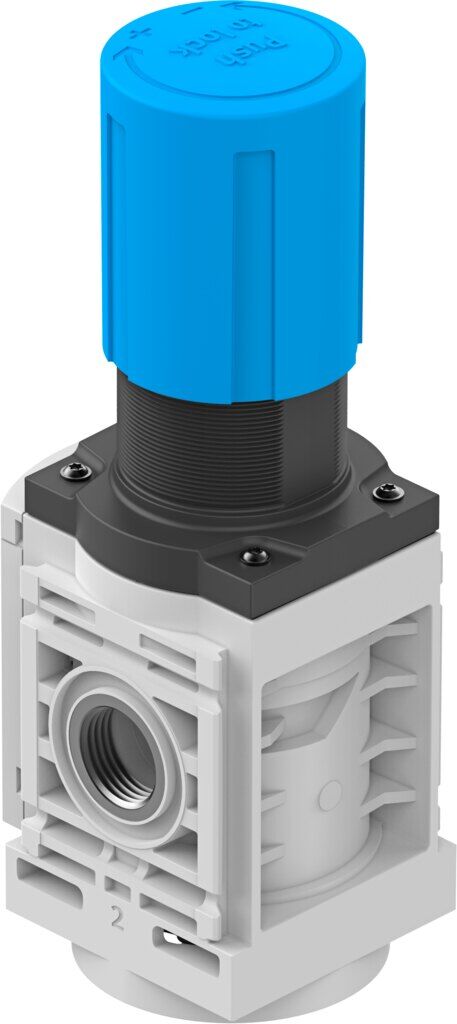

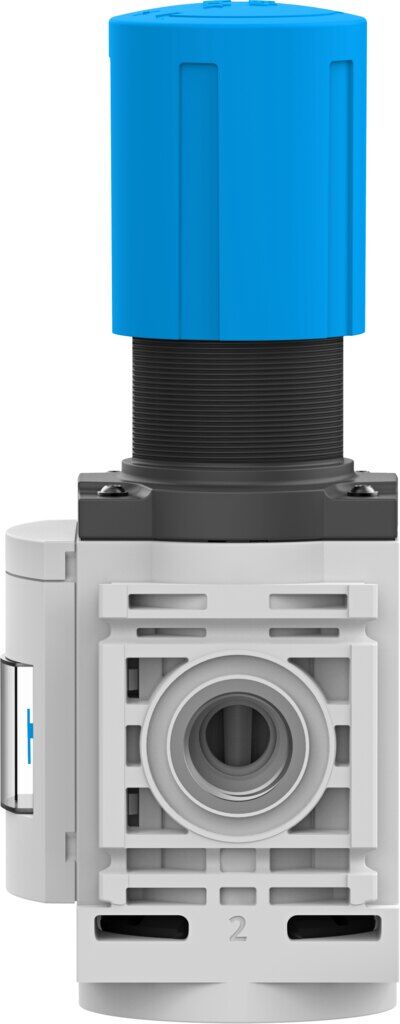

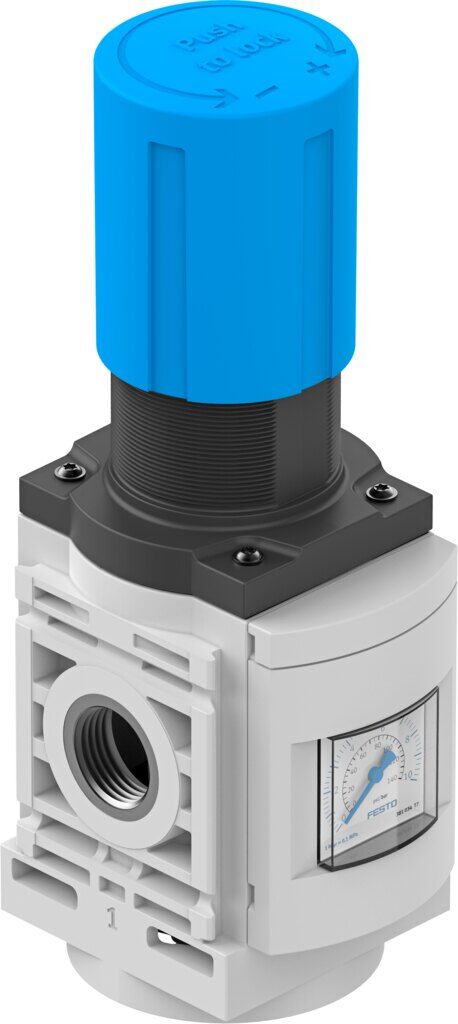

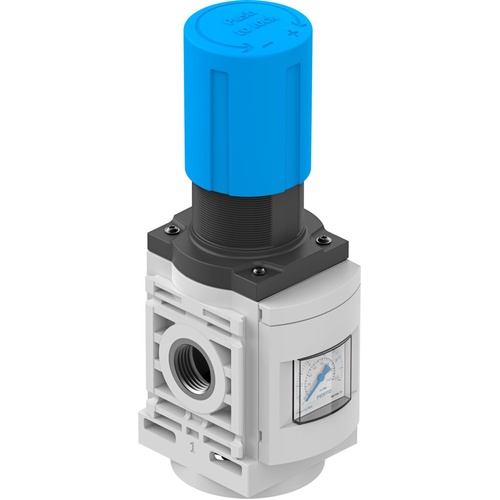

Pressure regulator

MS6-LR-1/2-D6-AG-BAR-B

8099205





GTIN: 4052568557249

Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
6000 l/min
Pressure regulation range
0.3 bar - 7 bar
Max. pressure hysteresis
0.35 bar

Technical Data

  • Size6
  • SeriesMS
  • Actuator lockRotary knob with detent
  • Mounting positionoptional
  • DesignDirectly actuated piston regulator
  • Controller functionOutput pressure constant With secondary venting With return flow function
  • Symbol00991558
  • Displayable unitsbar psi
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Pressure regulation range0.3 bar ... 7 bar
  • Max. pressure hysteresis0.035 MPa
  • Max. pressure hysteresis0.35 bar
  • Max. pressure hysteresis5.075 psi
  • Standard nominal flow rate (standardised to DIN 1343)6000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
  • Storage temperature-5 °C ... 50 °C
  • Media temperature-5 °C ... 50 °C
  • Ambient temperature-5 °C ... 50 °C
  • Product weight482 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Note on materialsRoHS-compliant
  • Material underneath coverPA
  • Material sealsNBR
  • Material rotary knobPOM
  • Material springHigh-alloy steel Galvanised steel
  • Material housingPA-reinforced
  • Material valve stemPOM



SKU 8099205
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
