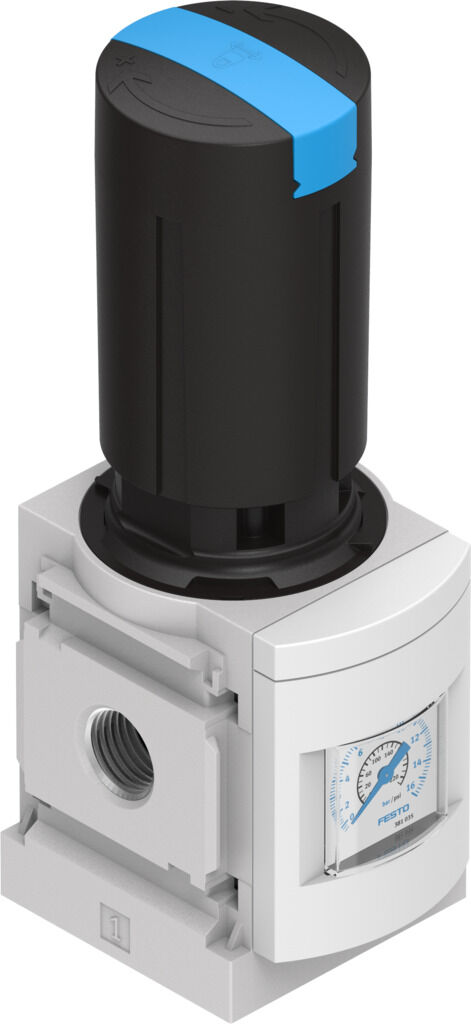

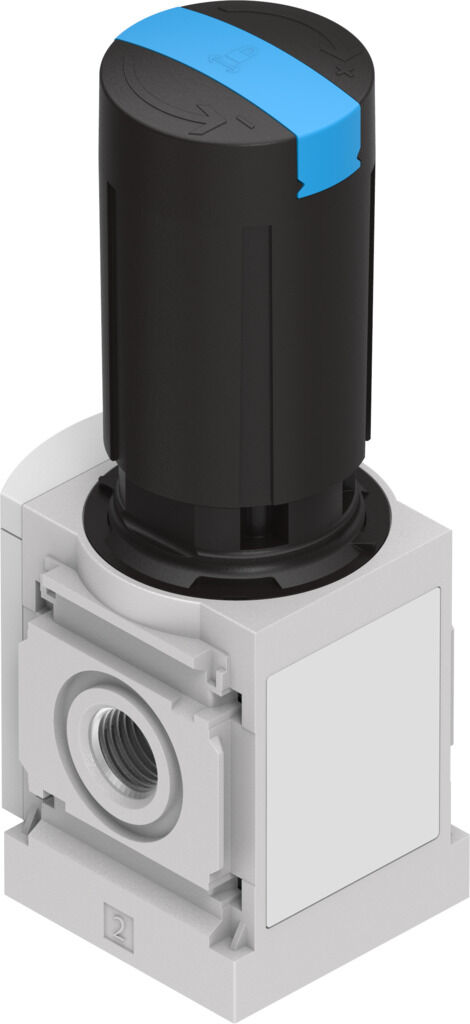

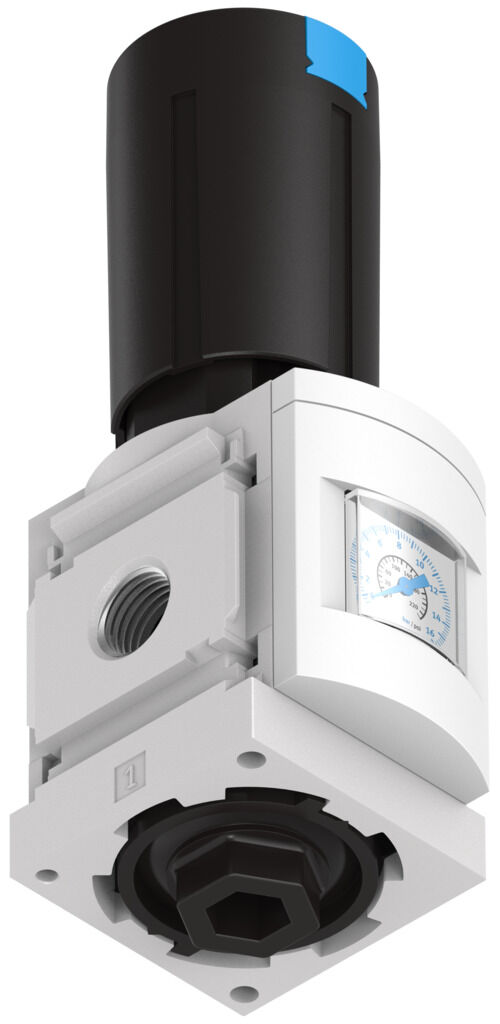

Pressure regulator

Pressure regulator

MS6-LR-1/2-D7-AS

529993

Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
5500 l/min
Pressure regulation range
0.5 bar - 12 bar
Max. pressure hysteresis
0.25 bar

GTIN: 4052568015749

Technical Data

  • Size6
  • SeriesMS
  • Actuator lockRotary knob with detent can be closed with accessories
  • Mounting positionoptional
  • DesignPressure regulator with pressure gauge
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting

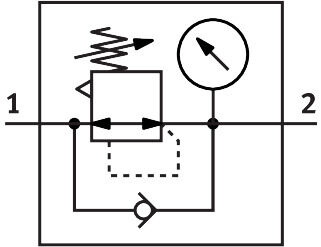

  • Symbol00991558
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure0.8 bar ... 20 bar
  • Pressure regulation range0.5 bar ... 12 bar
  • Max. pressure hysteresis0.25 bar
  • Standard nominal flow rate (standardised to DIN 1343)5500 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight730 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Note on materialsRoHS-compliant
  • Material control panelPA POM
  • Material sealsNBR
  • Material housingDie-cast aluminium
  • Material membraneNBR
  • Material separating platePOM

Downloads

MS_REGULATORS_EN.PDF

Technical data

Reliability datasheet

Links

Spare parts

Pneumatic connection, port 1 G1/2

Standard nominal flow rate (standardised to DIN 1343) 5500 l/min

Pressure regulation range 0.5 bar - 12 bar

Max. pressure hysteresis 0.25 bar



SKU 529993
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
