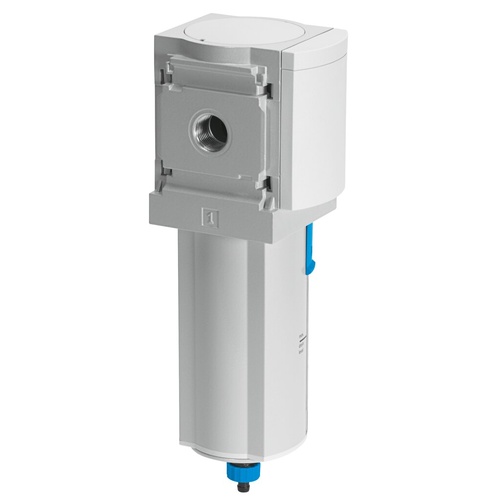

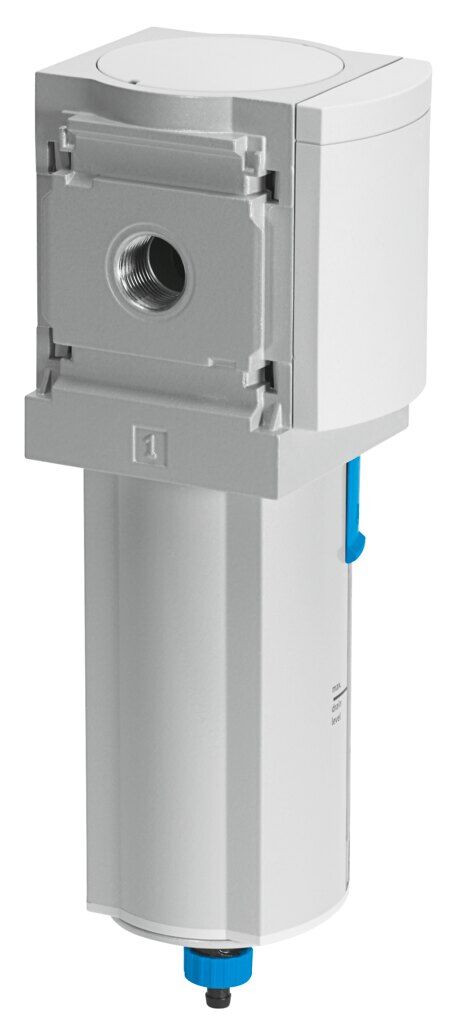

Water separator

MS6-LWS-1/2-U-V

564870





GTIN: 4052568211875

Pneumatic connection, port 1
G1/2
Standard nominal flow rate (standardised to DIN 1343)
3800 l/min
Operating pressure
2 bar - 12 bar

Technical Data

  • Size6
  • SeriesMS
  • Mounting positionVertical +/-5°
  • Condensate drainFully automatic
  • DesignCentrifugal separator
  • Max. condensate volume38 ml
  • Bowl guardIntegrated as metal bowl
  • Degree of condensate separation99 %
  • Symbol00992244
  • Operating pressure2 bar ... 12 bar
  • Standard nominal flow rate (standardised to DIN 1343)3800 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Inert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitable for use with foodSee supplementary material information
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:7:4]
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight820 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/2
  • Pneumatic connection, port 2G1/2
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium
  • Material bowlWrought aluminium alloy
  • Material screenPA









SKU 564870
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
