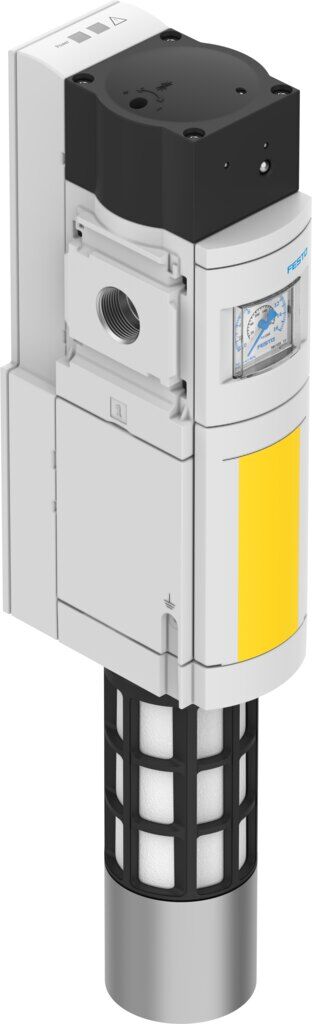

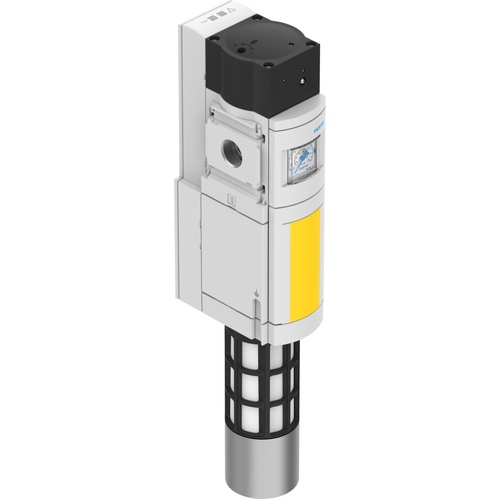

Soft start/quick exhaust valve

Technical Data

• SeriesMS
• Size6
• Grid dimension62 mm
• Safety functionExhaust Prevention of unexpected start-up (pressurisation)
• Safety Integrity Level (SIL)Exhaust/SIL 3 Prevention of unexpected start-up (pressurisation)/SIL 3
• Performance Level (PL)Exhausting/up to category 4, performance level e Prevention of unexpected start-up (pressurisation)/up to category 4, performance level e
• Note on forced dynamizationSwitching frequency min. 1/month
• DesignPiston seat
• lapUnderlap
• Type of actuationElectric
• Pilot air supplyInternal
• Sealing principleSoft
• Exhaust-air functionWithout flow control option
• Position detection principleMagnetic piston principle
• Conforms to standardDIN EN ISO 13849-1
• Manual overrideNone
• Type of resetMechanical spring
• Type of pilotingPilot actuated

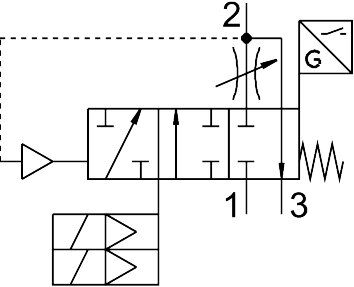

• Symbol00995704
• Valve function3/2-way, closed, monostable Soft-start function
• Operating pressure0.35 MPa ... 1 MPa
• Operating pressure3.5 bar ... 10 bar
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
• C value19.3 l/sbar
• b value0.21
• Standard nominal flow rate (standardised to DIN 1343)4300 l/min
• Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)9000 l/min
• Max. switching frequency0.5 Hz
• Switching time off40 ms
• Switching time on130 ms
• Duty cycle100%
• Signal status displayLED Floating contact
• Nominal operating voltage DC24 V
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• Note on materialsRoHS-compliant
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Sound pressure level75 dB(A)
• Degree of protectionIP65 With plug socket
• Media temperature-10 °C ... 50 °C
• Ambient temperature-10 °C ... 50 °C
• Storage temperature-10 °C ... 50 °C
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• ApprovalRCM trademark
• KC markKC-EMV
• CE mark (see declaration of conformity)To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK regulations for machines To UK RoHS instructions
• Certificate issuing authorityIFA 1001180 Intertek UK-MCR-0086
• Type of mountingEither: In-line installation With accessories
• Mounting positionoptional
• Product weight2200 g
• Pneumatic connection, port 1G1/2
• Pneumatic connection, port 2G1/2
• Pneumatic connection, port 3G1
• Electrical connection9-pin Sub-D
• Material housingDie-cast aluminium
• Material sealsNBR
• Material piston rodHigh-alloy stainless steel
