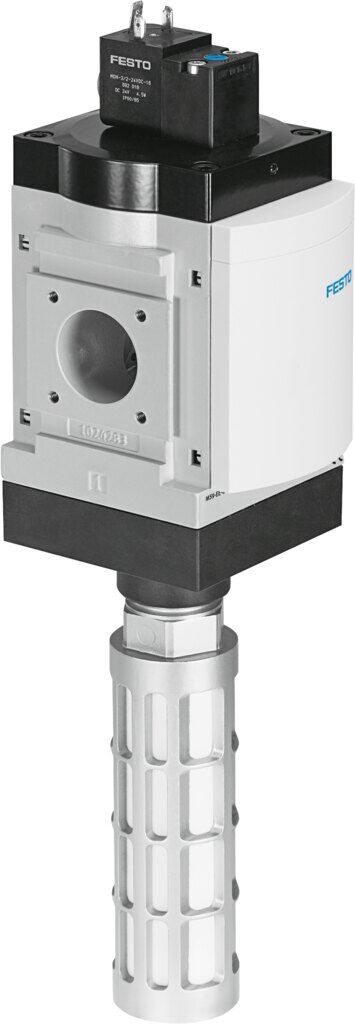

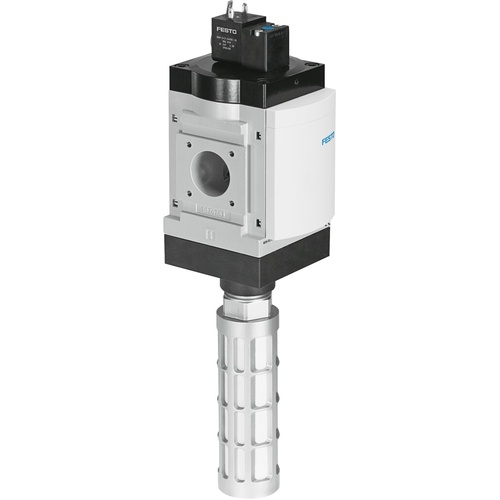

On/off valve

MS9-EE-G-V24-S-VS

562940





GTIN: 4052568210557

Pneumatic connection, port 3
G1
Standard nominal flow rate (standardised to DIN 1343)
18000 l/min
Operating pressure
3.5 bar - 16 bar
Type of actuation
Electric

Technical Data

  • SeriesMS
  • Size9
  • Grid dimension90 mm
  • DesignPiston gate valve
  • Type of actuationElectric
  • Sealing principleSoft
  • Exhaust-air functionWithout flow control option
  • Manual overrideDetenting Non-detenting
  • Type of resetMechanical spring
  • Type of pilotingPilot actuated
  • Symbol00991008
  • Valve function3/2-way, closed, monostable
  • Operating pressure3.5 bar ... 16 bar
  • lapOverlap
  • Standard nominal flow rate (standardised to DIN 1343)18000 l/min
  • Standard nominal flow rate 2-314100 l/min
  • Duty cycle100%
  • Characteristic coil data24 V DC: 4.5 W
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Note on materialsRoHS-compliant
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
  • Media temperature-10 °C ... 60 °C
  • Sound pressure level93 dB(A)
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 60 °C
  • Type of mountingEither: In-line installation With accessories
  • Mounting positionoptional
  • Product weight2300 g
  • Pneumatic connection, port 3G1
  • Electrical connectionType A Plugs To DIN EN 175301-803 Square design
  • Material piston slidePOM
  • Material sealsNBR
  • Material housingDie-cast aluminium



SKU 562940
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
