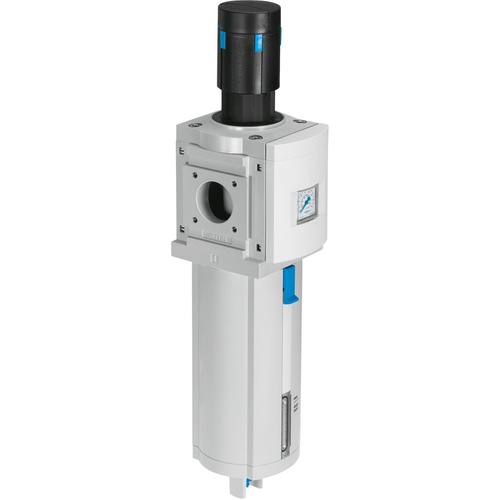

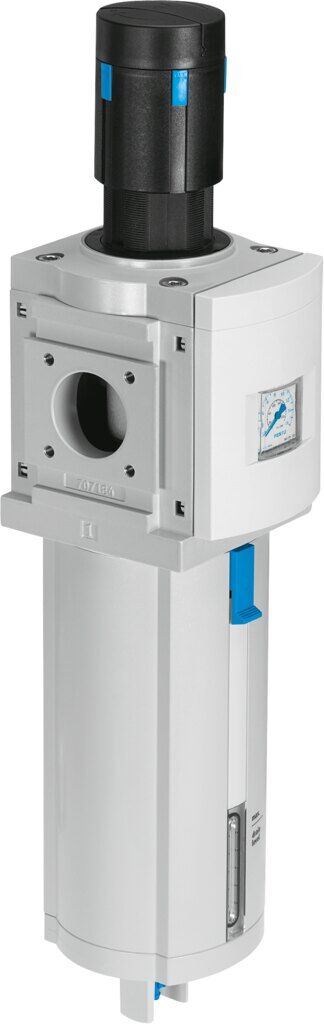

Filter regulator

MS9-LFR-G-D7-EUM-AG-BAR-AS

564118





GTIN: 4052568211493



Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
1 bar - 20 bar
Pressure regulation range
0.5 bar - 12 bar
Grade of filtration
40 µm

Technical Data

  • Size9
  • SeriesMS
  • Actuator lockcan be closed with accessories
  • Mounting positionVertical +/-5°
  • Grade of filtration40 µm
  • Condensate drainManually rotating
  • DesignPiloted filter diaphragm regulator
  • Max. condensate volume220 ml
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function
  • Degree of condensate separation>75 %

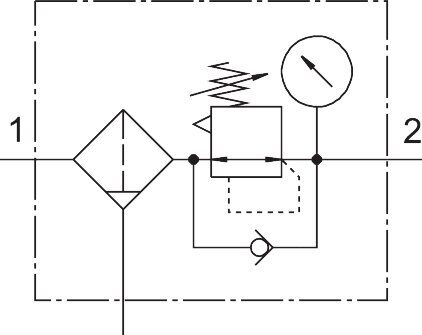

  • Symbol00991589
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure1 bar ... 20 bar
  • Pressure regulation range0.5 bar ... 12 bar
  • Max. pressure hysteresis0.4 bar
  • Operating mediumInert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
  • Storage temperature-10 °C ... 60 °C
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Pore size40 µm
  • Product weight2400 g
  • Type of mountingWith accessories
  • Material coveringPA-reinforced
  • Material spin discPOM
  • Material filter carrierPOM
  • Note on materialsRoHS-compliant
  • Material sub-baseDie-cast aluminium
  • Material mounting bracketDie-cast aluminium
  • Material filterPE
  • Material housingDie-cast aluminium
  • Material module connectorDie-cast aluminium
  • Material membraneNBR
  • Material bowlWrought aluminium alloy
  • Material cup sealNBR
  • Material screenPA
  • Material separating platePOM
  • Material valve stemWrought aluminium alloy NBR POM



SKU 564118
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
