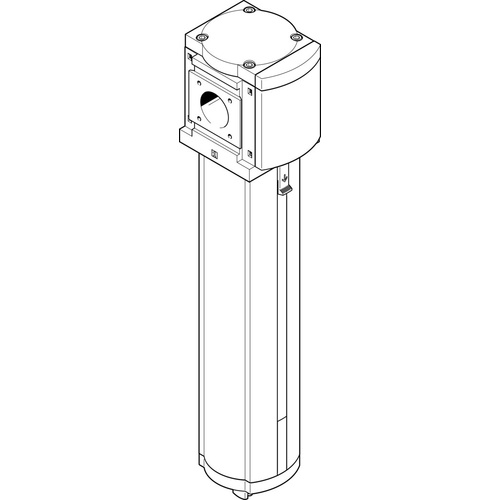

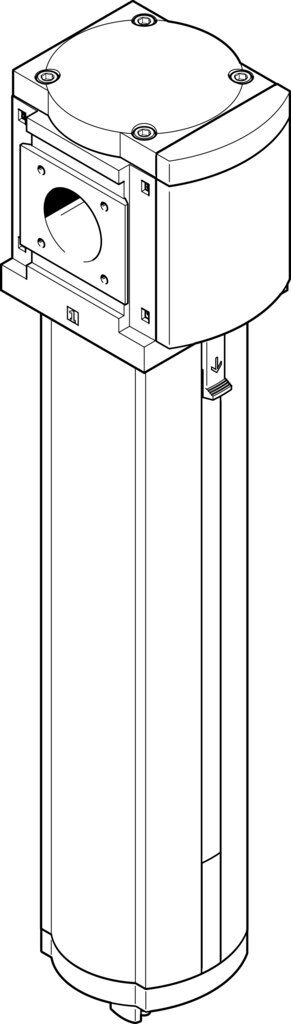

Activated carbon filter

MS9-LFX-1-U

553032





GTIN: 4052568195182

Pneumatic connection, port 1
G1
Max. standard flow rate for clean air class
6500 l/min
Ambient temperature
-10 °C - 60 °C
Operating pressure
0 bar - 20 bar
Design
Activated carbon filter

Technical Data

  • Size9
  • SeriesMS
  • Mounting positionVertical +/-5°
  • DesignActivated carbon filter
  • Symbol00991519
  • Operating pressure0 bar ... 20 bar
  • Max. standard flow rate for clean air class6500 l/min
  • Operating mediumCompressed air according to ISO 8573-1:2010 [3:4:2]
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
  • Storage temperature-10 °C ... 60 °C
  • Air purity class at outputCompressed air according to ISO 8573-1:2010 [3:4:1]
  • Media temperature5 °C ... 30 °C
  • Residual oil content0.003 mg/m³
  • Ambient temperature-10 °C ... 60 °C
  • Product weight2000 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1
  • Pneumatic connection, port 2G1
  • Material coveringPA
  • Material sealsNBR
  • Material filterActivated carbon
  • Material housingDie-cast aluminium
  • Material bowlWrought aluminium alloy
  • Material screenPA



SKU 553032
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
