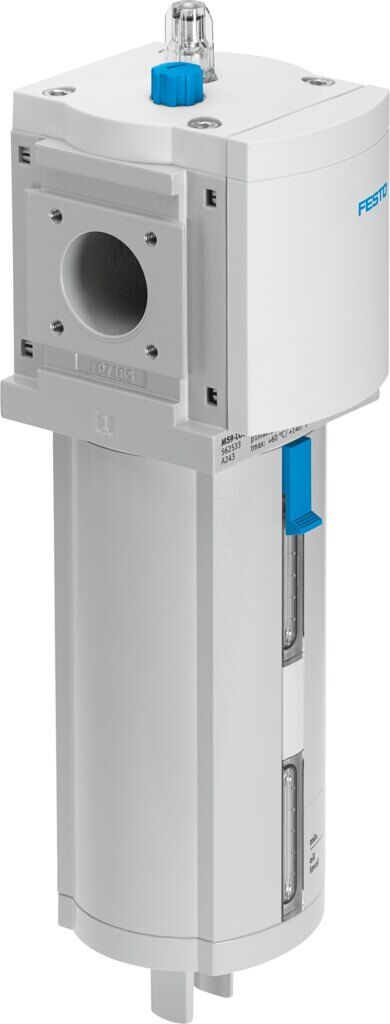

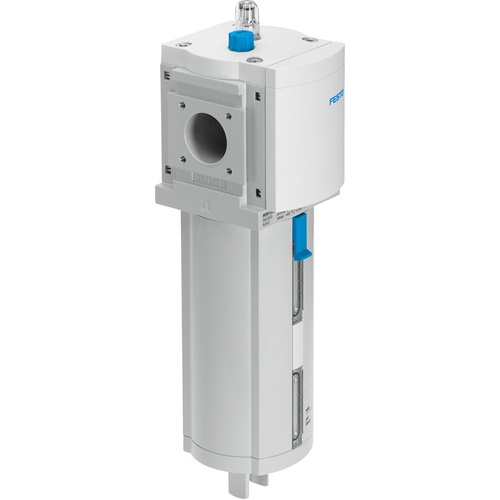

Lubricator

MS9-LOE-G-U

564144





GTIN: 4052568211646



Design
Proportional standard mist lubricator
Operating pressure
1 bar - 16 bar
Min. flow rate for lubricator function
100 l/min

Technical Data

  • Size9
  • SeriesMS
  • Mounting positionVertical +/-5°
  • DesignProportional standard mist lubricator
  • Max. oil capacity490 cm³
  • Bowl guardIntegrated as metal bowl
  • Symbol00991532
  • Operating pressure1 bar ... 16 bar
  • Min. flow rate for lubricator function100 l/min
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • ATEX category gasII 2G
  • ATEX category dustII 2D
  • Explosion ignition protection type for gasEx h IIC T6 Gb X
  • Explosion ignition protection type for dustEx h IIIC T60°C Db X
  • Explosion ambient temperature-10°C <= Ta <= +60°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
  • Storage temperature-10 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Oil viscosityISO VG 32
  • Ambient temperature-10 °C ... 60 °C
  • Product weight2000 g
  • Type of mountingWith accessories
  • Material coveringPA-reinforced
  • Note on materialsRoHS-compliant
  • Material sub-baseDie-cast aluminium
  • Material sealsNBR
  • Material housingDie-cast aluminium
  • Material module connectorDie-cast aluminium
  • Material bowlWrought aluminium alloy
  • Material cup sealNBR
  • Material screenPA



SKU 564144
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
