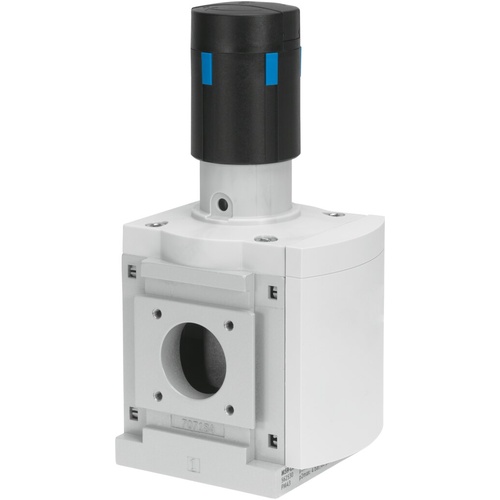

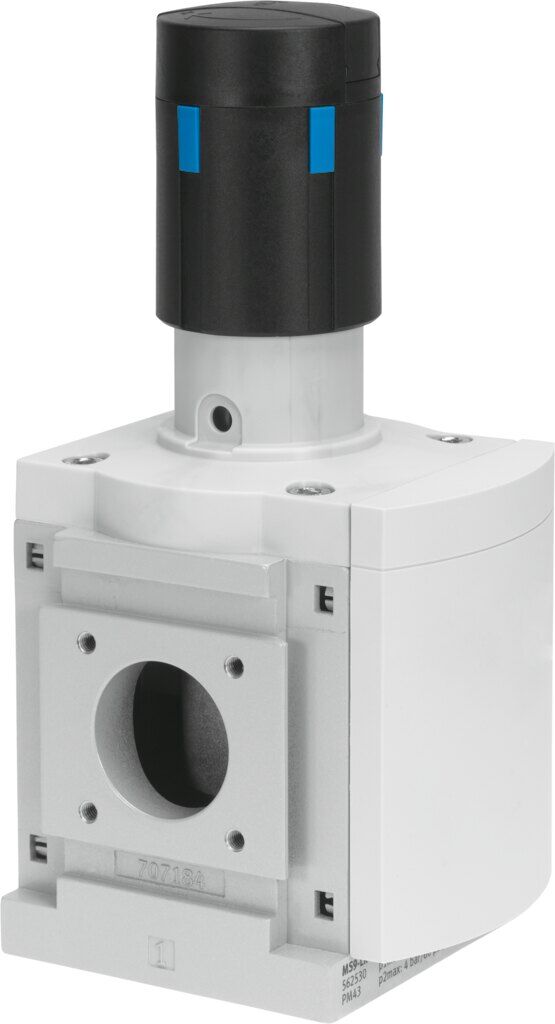

Pressure regulator

MS9-LR-G-D5-AG-BAR-AS

564134





GTIN: 4052568211578

Pressure gauge (ANALOG) or Pressure display (DIGITAL)
With pressure gauge
Operating pressure
1 bar - 20 bar
Pressure regulation range
0.5 bar - 4 bar
Max. pressure hysteresis
0.4 bar

Technical Data

  • Size9
  • SeriesMS
  • Actuator lockcan be closed with accessories
  • Mounting positionoptional
  • DesignPiloted diaphragm regulator
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function
  • Symbol00991536
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure1 bar ... 20 bar
  • Pressure regulation range0.5 bar ... 4 bar
  • Max. pressure hysteresis0.4 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
  • Storage temperature-10 °C ... 60 °C
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight1400 g
  • Type of mountingWith accessories
  • Material coveringPA-reinforced
  • Note on materialsRoHS-compliant
  • Material sub-baseDie-cast aluminium
  • Material mounting bracketDie-cast aluminium
  • Material housingDie-cast aluminium
  • Material module connectorDie-cast aluminium
  • Material membraneNBR
  • Material valve stemWrought aluminium alloy NBR POM



SKU 564134
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
