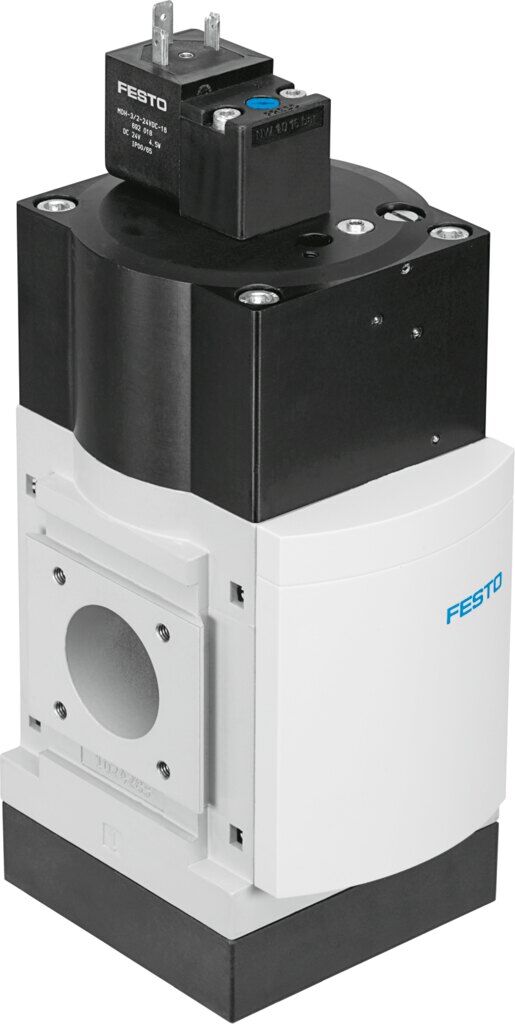

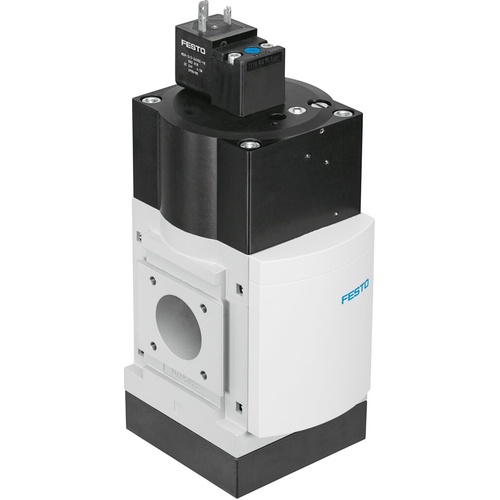

Soft start/quick exhaust valve

Technical Data

• SeriesMS
• Size9
• Grid dimension90 mm
• Safety functionExhaust
• Performance Level (PL)Exhausting/up to category 1, performance level c
• DesignPiston gate valve
• Type of actuationElectric
• Sealing principleSoft
• Exhaust-air functionWithout flow control option
• Manual overrideNone
• Type of resetMechanical spring
• Type of pilotingPilot actuated
• Symbol00995240
• Valve function3/2-way, closed, monostable Soft-start function
• Operating pressure0.35 MPa ... 1.6 MPa
• Operating pressure3.5 bar ... 16 bar
• Standard nominal flow rate (standardised to DIN 1343)8300 l/min ... 16550 l/min
• Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)19730 l/min ... 21720 l/min
• Duty cycle100%
• Characteristic coil data24 V DC: 8.4 W
• Nominal operating voltage DC24 V
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• Note on materialsRoHS-compliant
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
• Sound pressure level93 dB(A)
• Degree of protectionIP65
• Media temperature0 °C ... 60 °C
• Ambient temperature0 °C ... 60 °C
• Storage temperature0 °C ... 60 °C
• Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
• Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
• CE mark (see declaration of conformity)To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK regulations for machines To UK RoHS instructions
• Type of mountingEither: In-line installation With accessories
• Mounting positionoptional
• Product weight3200 g
• Pressure gauge connectionG1/8 G1/4
• Pneumatic connection, port 3G1 1 NPT
• Electrical connectionType A Plugs To EN 175301-803 Square design
• Material housingDie-cast aluminium
• Material sealsNBR
• Material piston slideBrass
• Material coverWrought aluminium alloy
• Material underneath coverPA
