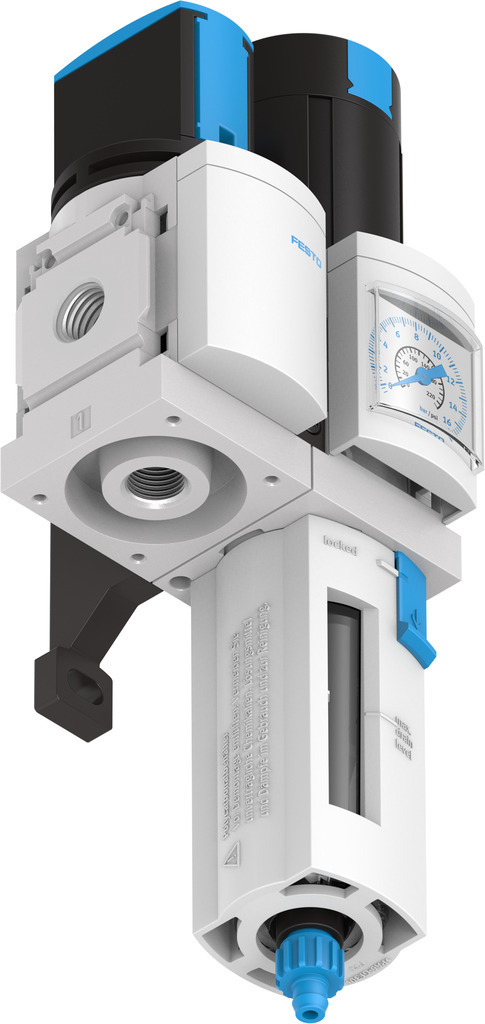

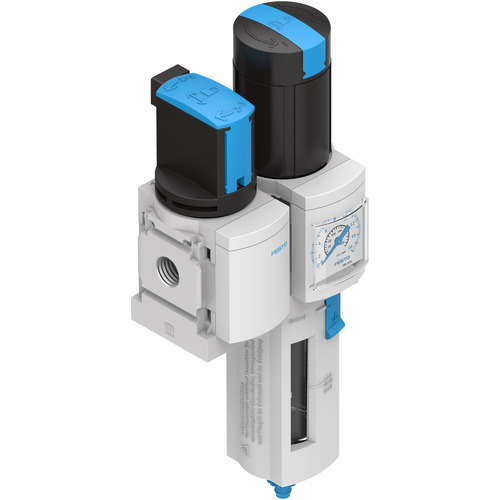

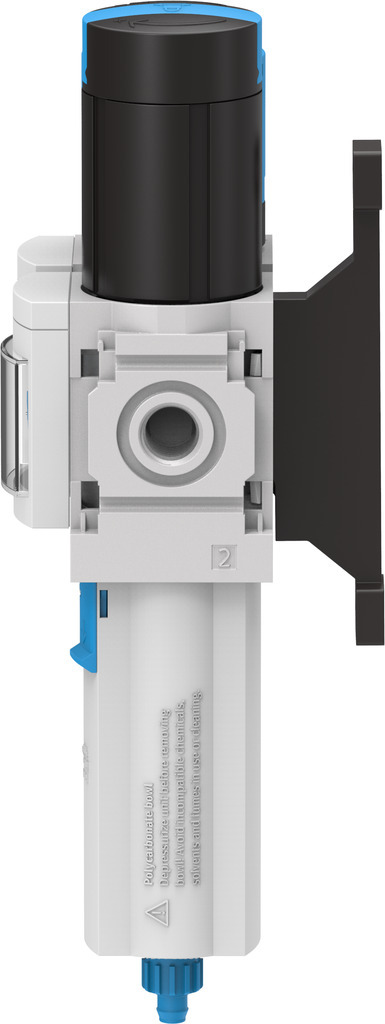

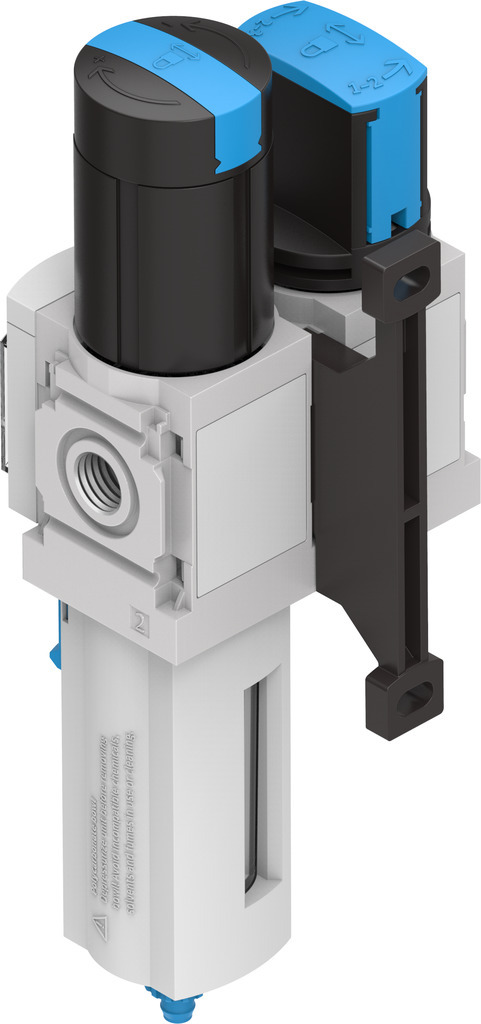

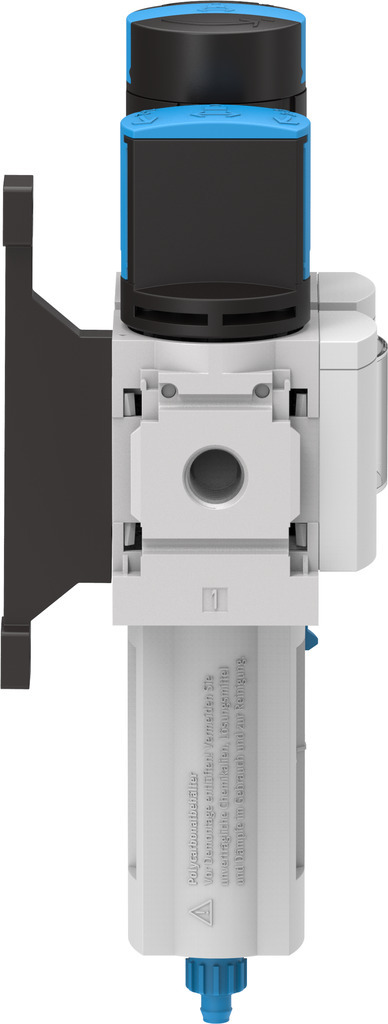

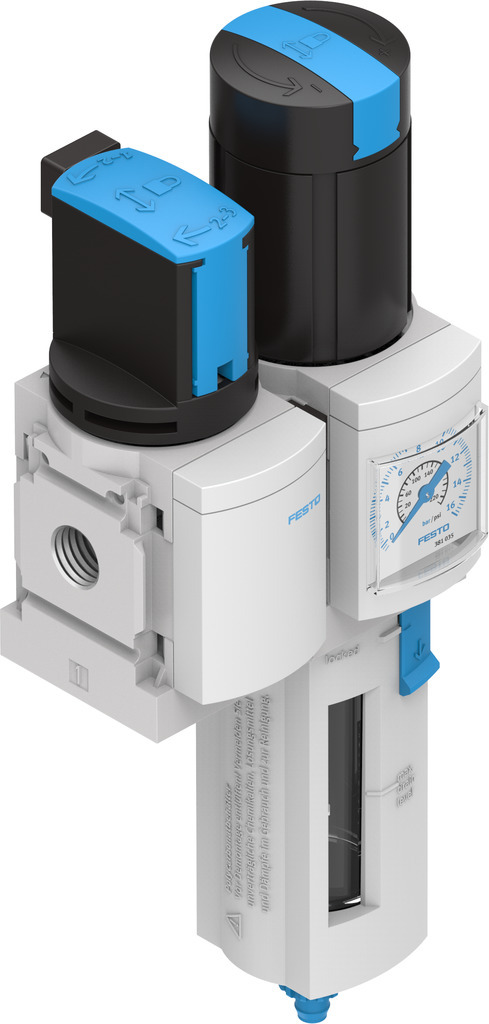

Service unit combination

MSB4-1/4:C3J2-WP

542298

Pneumatic connection, port 1
G1/4
Standard nominal flow rate (standardised to DIN 1343)
1000 l/min
Pressure regulation range
0.5 bar - 12 bar
Grade of filtration
40 µm

GTIN: 4052568180416

Technical Data

  • Size4
  • SeriesMS
  • Actuator lockRotary knob with detent can be closed with accessories
  • Mounting positionVertical +/-5°
  • Grade of filtration40 µm
  • Condensate drainFully automatic
  • DesignOn/off valve Filter regulator with pressure gauge
  • Controller functionOutput pressure constant Via primary pressure compensation With secondary venting With return flow function
  • Bowl guardPlastic bowl guard

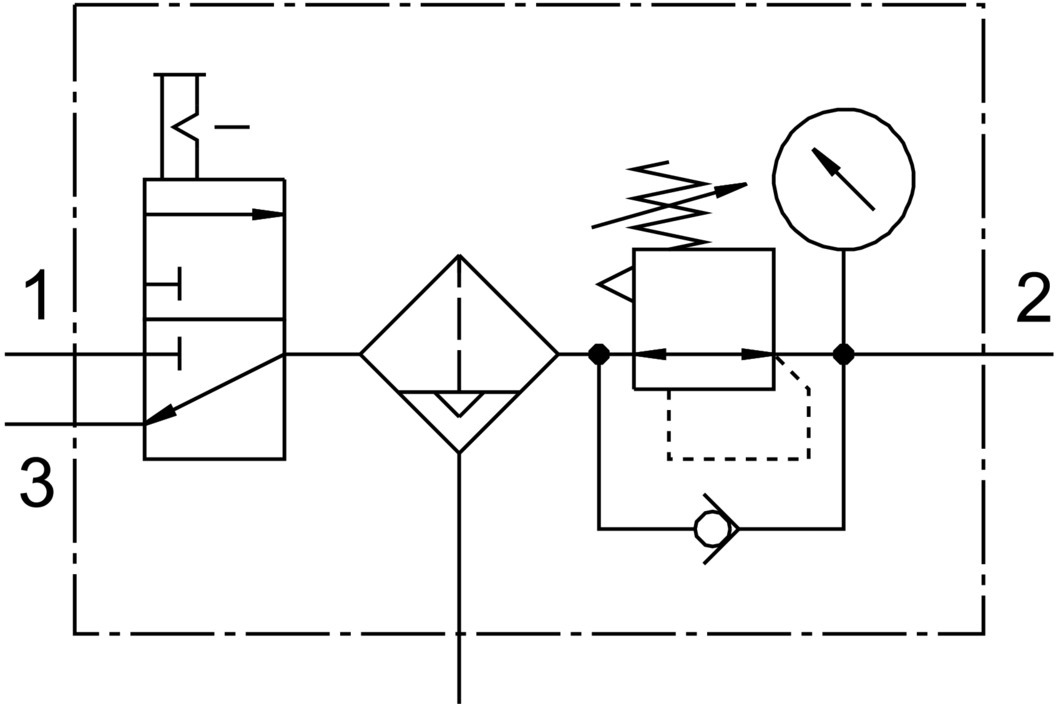

  • Symbol00991756
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure2 bar ... 12 bar
  • Pressure regulation range0.5 bar ... 12 bar
  • Standard nominal flow rate (standardised to DIN 1343)1000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-10 °C ... 60 °C
  • Suitable for use with foodSee supplementary material information
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
  • Media temperature5 °C ... 60 °C
  • Ambient temperature5 °C ... 60 °C
  • Product weight1300 g
  • Type of mountingWith accessories
  • Pneumatic connection, port 1G1/4
  • Pneumatic connection, port 2G1/4
  • Pneumatic connection, port 3G1/4
  • Material housingDie-cast aluminium
  • Material bowlPC

Downloads

Technical data

Links

Spare parts

Pneumatic connection, port 1 - G1/4

Standard nominal flow rate - 1000 l/min

Pressure regulation range - 0.5 bar - 12 bar

Grade of filtration - 40 µm

SKU 542298
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
