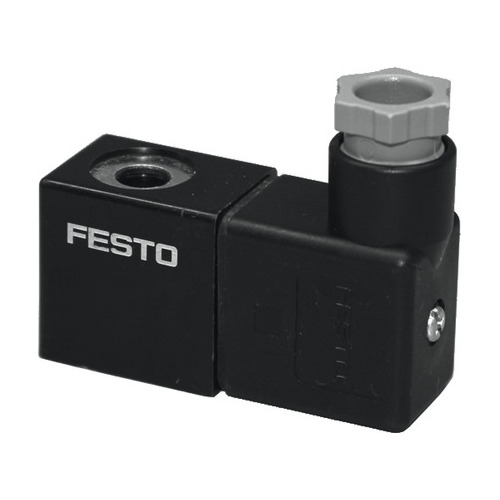

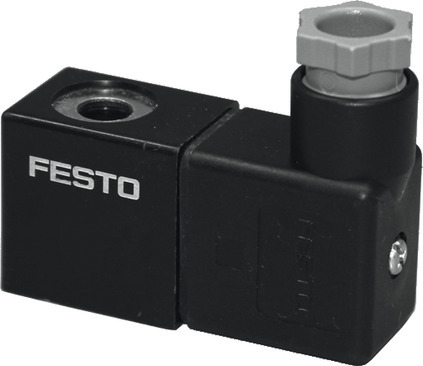

Solenoid coil (x10 pack)

MSFG-12

4526

Electrical connection
3-pin - Plug pins with connection pattern to Festo standard for MSSD-F
Type of mounting
Via knurled nut
Characteristic coil data
12 V DC: 4.1 W
Degree of protection
IP65

GTIN: 4052568019044

Technical Data

  • Mounting positionoptional
  • Switching position indicatorno
  • Min. pick-up time10 ms
  • Duty cycle100%
  • Characteristic coil data12 V DC: 4.1 W
  • Permissible voltage fluctuations+/- 10 %
  • LABS (PWIS) conformityVDMA24364-C1-L
  • Degree of protectionIP65
  • Ambient temperature-5 °C ... 40 °C
  • Max. tightening torque for socket0.4 Nm
  • Product weight55 g
  • Electrical connection3-pin Plug pins with connection pattern to Festo standard for MSSD-F
  • Type of mountingVia knurled nut
  • Note on materialsRoHS-compliant
  • Material solenoid coilDuroplast Copper Steel
  • Material windingCopper





Downloads

VACS_EN.PDF

Technical data

Links

Spare parts

Solenoid coil

SKU 4526
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
