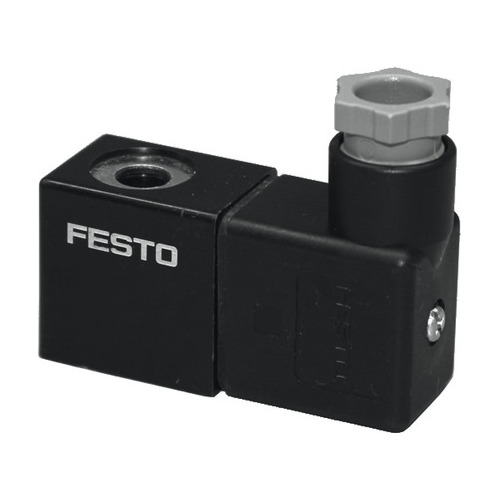

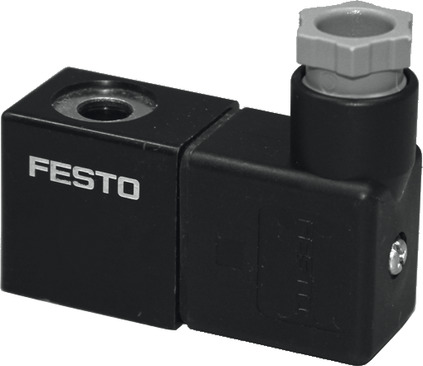

Solenoid coil (x10 pack)

MSFW-230-50/60

4540

Electrical connection

3-pin - Plug pins with connection pattern to Festo standard for MSSD-F

Type of mounting

Via knurled nut

Characteristic coil data

230 V AC: 50/60 Hz, pick-up power 9.0 VA, holding power 7.0 VA

Degree of protection

IP65

GTIN: 4052568019051

Technical Data

Mounting positionoptional
Switching position indicatorno
Min. pick-up time10 ms
Duty cycle100%
Power factor (cos phi)0.7
Characteristic coil data230 V AC: 50/60 Hz, pick-up power 9.0 VA, holding power 7.0 VA
Permissible frequency fluctuations+/- 5%
Permissible voltage fluctuations+/- 10 %
CE mark (see declaration of conformity)To EU Low Voltage Directive
UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
LABS (PWIS) conformityVDMA24364-C1-L
Degree of protectionIP65
Ambient temperature-5 °C ... 40 °C
Max. tightening torque for socket0.4 Nm
Product weight55 g
Electrical connection3-pin Plug pins with connection pattern to Festo standard for MSSD-F
Type of mountingVia knurled nut
Note on materialsRoHS-compliant
Material solenoid coilDuroplast Copper Steel
Material windingCopper
