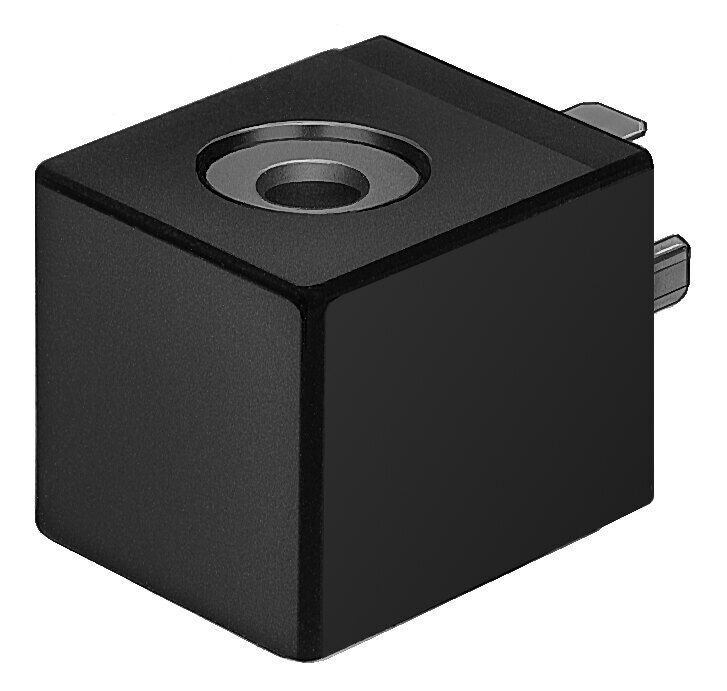

Solenoid coil (x10 pack)

MSN1W-110AC-OD

123061





GTIN: 4052568023522

Electrical connection
3-pin - Type A - To DIN EN 175301-803
Type of mounting
Clamped - Via retaining clamp - With accessories
Characteristic coil data
110 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5.0 VA - 110 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA - 120 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
Degree of protection
IP65

Technical Data

  • Mounting positionoptional
  • Min. pick-up time10 ms
  • Duty cycle100%
  • Power factor (cos phi)0.7
  • Characteristic coil data110 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5.0 VA 110 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA 120 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
  • Permissible voltage fluctuationsAt 50 Hz ± 10% With 60 Hz -10...+20%
  • Maritime classificationSee certificate
  • CE mark (see declaration of conformity)To EU Low Voltage Directive
  • UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
  • Certificate issuing authorityDNV-TAA000032X
  • LABS (PWIS) conformityVDMA24364-C1-L
  • Media temperature-10 °C ... 50 °C
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 50 °C
  • Product weight80 g
  • Electrical connection3-pin Type A To DIN EN 175301-803
  • Type of mountingClamped Via retaining clamp With accessories
  • Material housingPA
  • Material electrical contactSteel
  • Material windingCopper
SKU 123061
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
