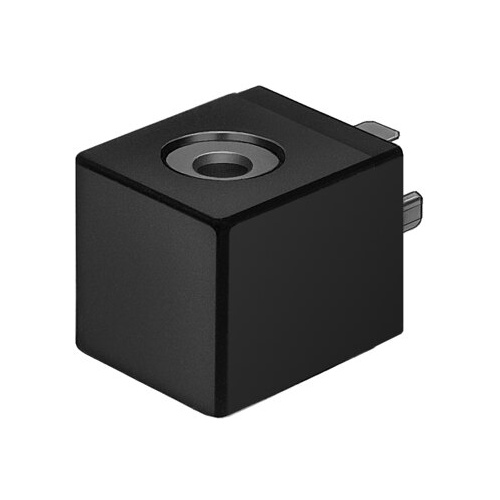

Solenoid coil

MSN1W-24AC/12DC

170152





GTIN: 4052568037321

Electrical connection
3-pin - Type A - Clip-on - To DIN EN 175301-803
Type of mounting
Clamped - With retaining clamp
Characteristic coil data
12 V DC: 5.0 W - 24 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5.0 VA - 24 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
Degree of protection
IP65

Technical Data

  • Mounting positionAny
  • Min. pick-up time10 ms
  • Duty cycle100%
  • Power factor (cos phi)0.7
  • Characteristic coil data12 V DC: 5.0 W 24 V AC: 50 Hz, pick-up power 7.5 VA, holding power 5.0 VA 24 V AC: 60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
  • Permissible voltage fluctuationsat 50Hz ±10% With 60 Hz -10...+20%
  • LABS (PWIS) conformityVDMA24364-C1-L
  • Media temperature-10 °C ... 50 °C
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 50 °C
  • Product weight80 g
  • Electrical connection3-pin Type A Clip-on To DIN EN 175301-803
  • Type of mountingClamped With retaining clamp
  • Material housingProcess automation
  • Material electrical contactSteel
  • Material windingCopper



SKU 170152
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
