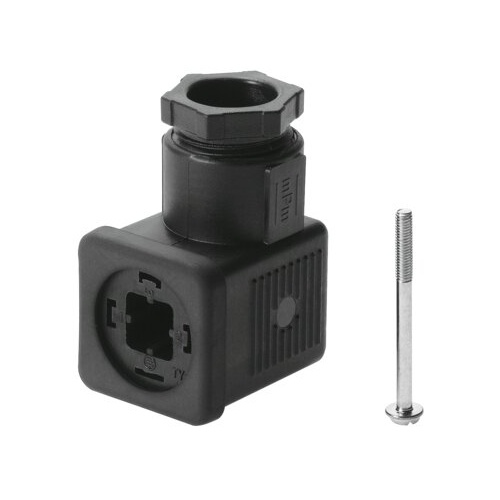

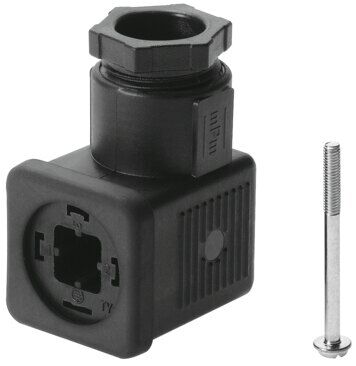

Plug socketMSSD-C-4P

171157

GTIN: 405256803734

Electrical connection
3-pin - Angled socket - Type A - To DIN EN 175301-803 - Square design MSC - Square design MSN1
Degree of protection
IP65



Technical Data Plug socket MSSD-C-4P

  • Type of mountingOn solenoid valve via M3 central screw
  • Mounting positionAny
  • Product weight22 g
  • Electrical connection3-pin Angled socket Type A To DIN EN 175301-803 Square design MSC Square design MSN1
  • Cable fittingPg9
  • Cable diameter6 mm ... 8 mm
  • Nominal cross section conductor≤1.5 mm²
  • Degree of protectionIP65
  • Ambient temperature-25 °C ... 90 °C
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS compliant
  • Material housingPolymer
  • Housing colourBlack
SKU 171157
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
