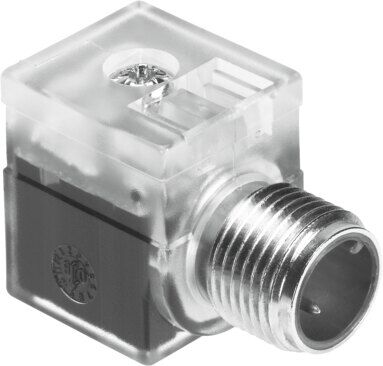

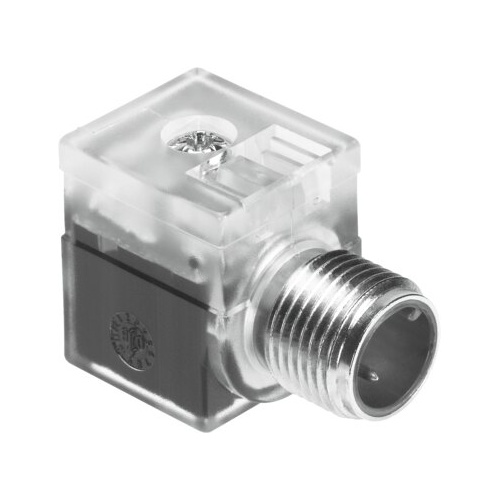

Plug socket MSSD-EB-M12-MONO

188024

GTIN: 4052568006624

Degree of protection
IP65



Technical Data Plug socket MSSD-EB-M12-MONO

  • Based on standardEN 61076-2-101 EN 61984
  • Switching position indicatorLED
  • Type of mountingOn solenoid valve via M2.5 central screw
  • Product weight13.18 g
  • Electrical connection 1Socket, to EN 175301-803, type C
  • Electrical connection 2Straight plug connector, M12x1, 2-pin, A-coded
  • Operational voltage range DC12 V ... 24 V
  • Nominal operating voltage DC24 V
  • Operational voltage range AC12 V ... 24 V
  • Permissible current load0.12 A
  • Immunity to surge2.5 kV
  • Degree of protectionIP65
  • Ambient temperature-10 °C ... 50 °C
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Pollution degree3
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • Material housingPA
  • Housing colourTransparent
  • Material screw-type lockNickel-plated steel
  • Material sealsHNBR NBR
  • Material electrical contactSilver-plated copper alloy Gold-plated brass



SKU 188024
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
