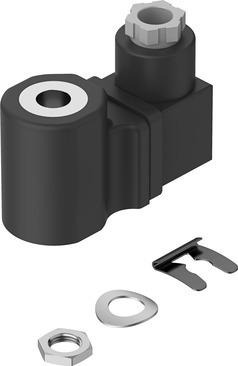

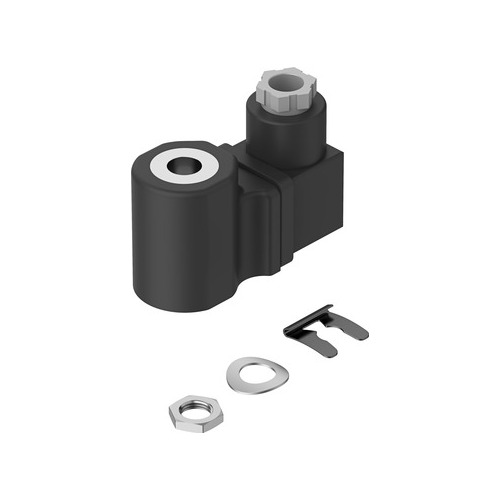

Solenoid coil

MSW-42AC

3594

Electrical connection
Type A - Plugs - To EN 175301-803
Type of mounting
External hex 1/8 - Retaining clip
Characteristic coil data
42 V AC: 50 Hz, pick-up power 30 VA, holding power 22 VA
Degree of protection
IP65

GTIN: 4052568064365

Technical Data

  • Type of actuationElectric
  • Mounting positionoptional
  • Min. pick-up time10 ms
  • Duty cycle100%
  • Insulation material classF
  • Characteristic coil data42 V AC: 50 Hz, pick-up power 30 VA, holding power 22 VA
  • Permissible voltage fluctuations+/- 10 %
  • LABS (PWIS) conformityVDMA24364-C1-L
  • Storage temperature-10 °C ... 60 °C
  • Degree of protectionIP65
  • Ambient temperature-5 °C ... 50 °C
  • Product weight175 g
  • Electrical connectionType A Plugs To EN 175301-803
  • Type of mountingExternal hex 1/8 Retaining clip
  • Note on materialsRoHS-compliant
  • Material solenoid coilDuroplast
  • Material electrical contactBrass, tin-plated
  • Material windingCopper

Downloads

VACS_EN.PDF

Technical data

Links

Spare parts

Solenoid coil

SKU 3594
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
