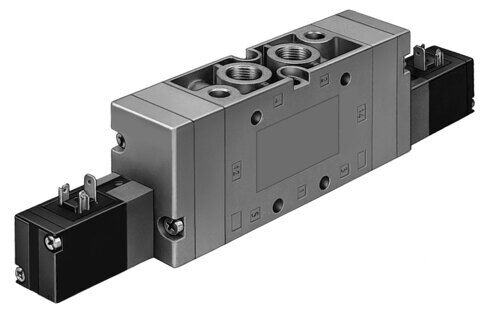

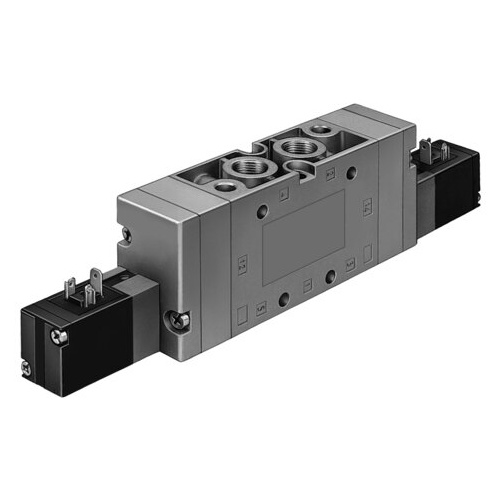

Solenoid valve

MVH-5/3E-3/8-B

14943





GTIN: 4052568112578

Valve function
5/3 exhausted
Standard nominal flow rate (standardised to DIN 1343)
2200 l/min
Pneumatic connection, port 1
G3/8
Type of actuation
Electric

Technical Data

  • Valve function5/3 exhausted
  • Type of actuationElectric
  • Construction width40 mm
  • Standard nominal flow rate (standardised to DIN 1343)2200 l/min
  • pneumatic working portG3/8
  • Operating voltage24V DC
  • Operating pressure0.3 MPa ... 1 MPa
  • Operating pressure3 bar ... 10 bar
  • DesignPiston gate valve
  • Type of resetMechanical spring
  • Nominal size12 mm
  • Grid dimension41 mm
  • Exhaust-air functionWith flow control option
  • Sealing principleSoft
  • Mounting positionoptional
  • Manual overrideNon-detenting
  • Type of pilotingPilot actuated
  • Pilot air supplyInternal
  • Flow directionNon-reversible
  • Symbol00991036
  • lapOverlap
  • Max. switching frequency3 Hz
  • Switching time off87 ms
  • Switching time on35 ms
  • Switching time reversal75 ms
  • Max. positive test pulse with 0 signal2200 µs
  • Max. negative test pulse with 1 signal3700 µs
  • Characteristic coil data24 V DC: 2.5 W
  • Permissible voltage fluctuations+/- 10 %
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Storage temperature-40 °C ... 60 °C
  • Media temperature-5 °C ... 50 °C
  • Ambient temperature-5 °C ... 50 °C
  • Product weight1000 g
  • Type of mountingOn PR rail With through-hole
  • Pilot exhaust port 82M5
  • Pilot exhaust port 84M5
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Pneumatic connection, port 3G3/8
  • Pneumatic connection, port 4G3/8
  • Pneumatic connection, port 5G3/8
  • Note on materialsRoHS-compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium





SKU 14943
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
