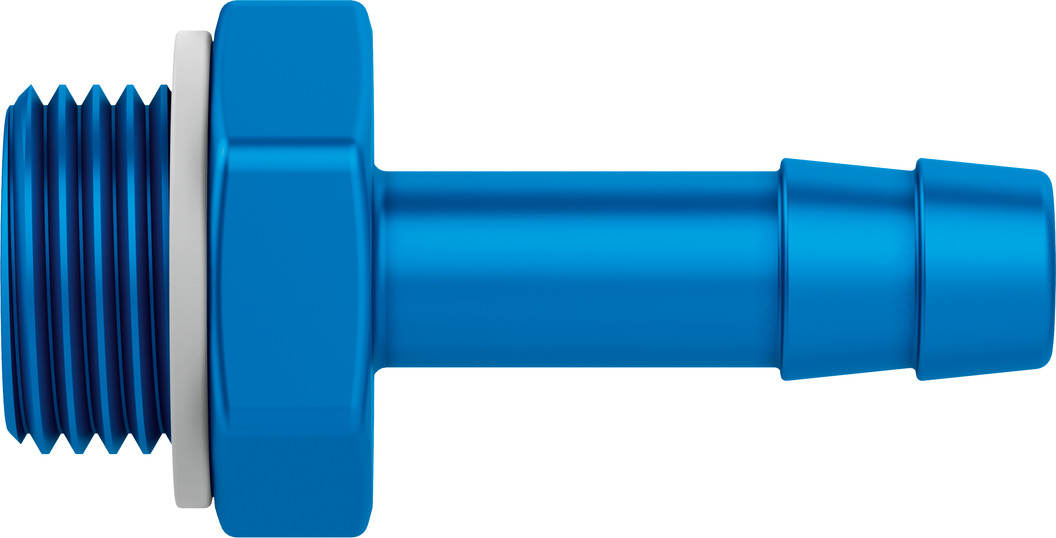

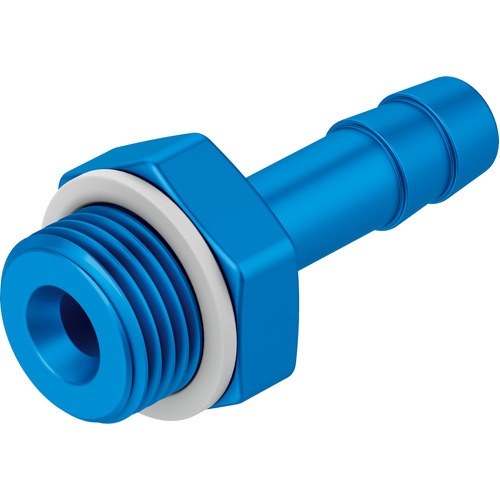

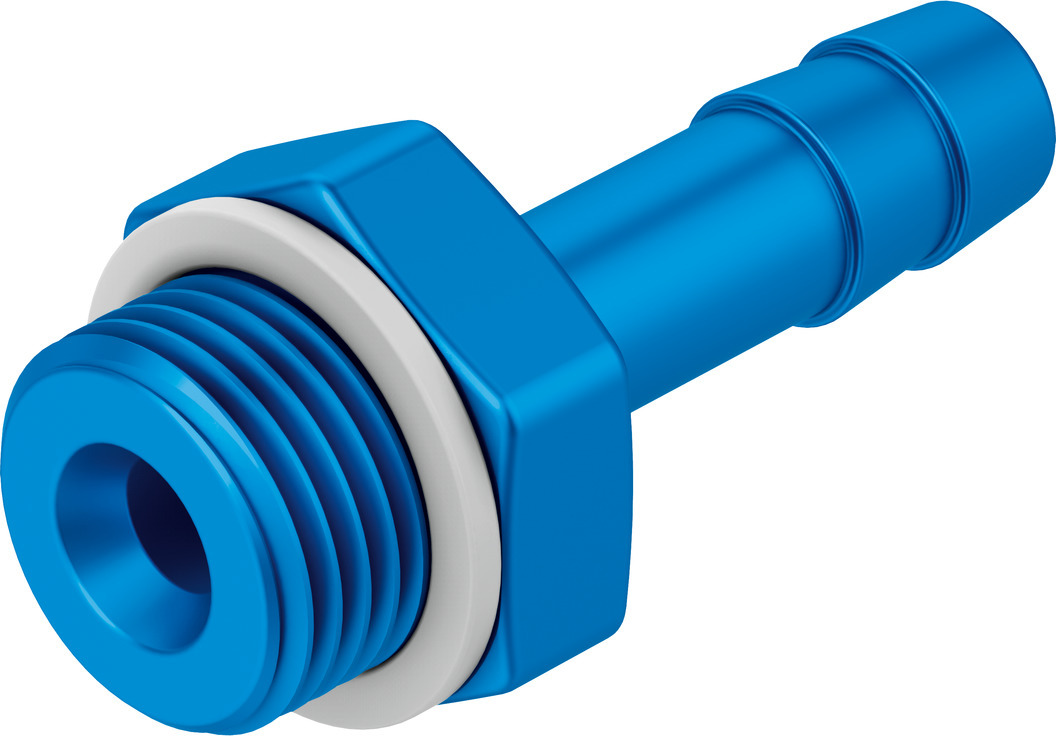

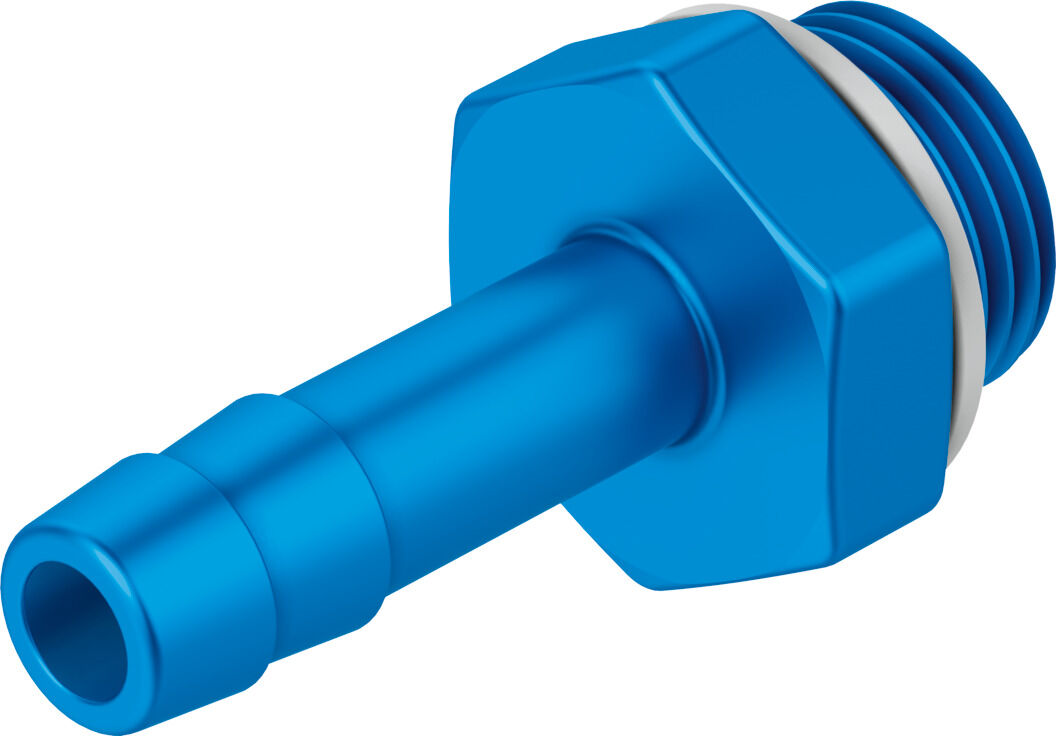

Barbed hose fitting (x10 pack)

N-1/2-P-9

3610

Pneumatic connection, port 1

Male thread G1/2

Pneumatic connection, port 2

For tubing inside diameter of 9 mm

Nominal size

8 mm

GTIN: 4052568018481

Technical Data

Nominal size8 mm
Type of seal on screwed plugSealing ring
Mounting positionoptional
DesignStraight design
Size of pack1
Operating pressure complete temperature range-0.95 bar ... 16 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10 °C ... 60 °C
Max. tightening torque18 Nm
Product weight15.1 g
Pneumatic connection, port 1Male thread G1/2
Pneumatic connection, port 2For tubing inside diameter of 9 mm
Note on materialsRoHS-compliant
Material housingAnodised aluminium
