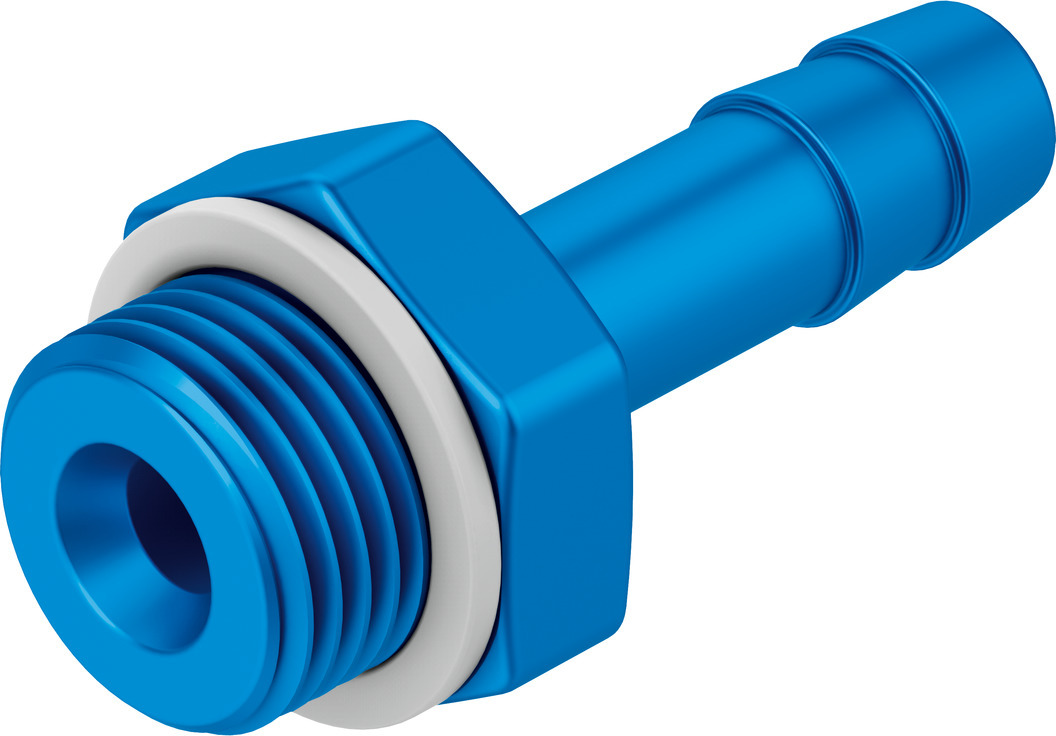

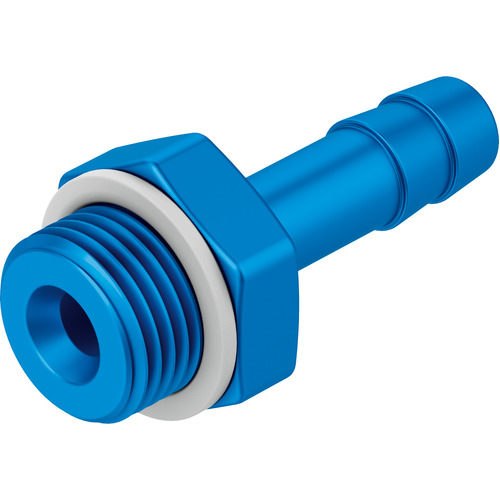

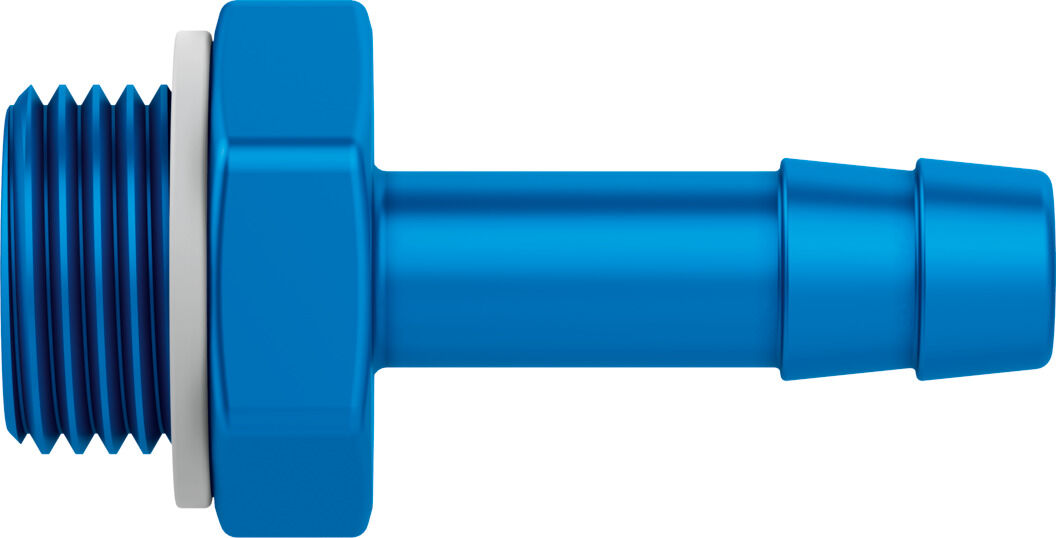

Barbed hose fitting (x10 pack)

N-1/8-P-6

3605

Pneumatic connection, port 1
Male thread G1/8
Pneumatic connection, port 2
For tubing I.D. 6 mm
Nominal size
4.5 mm

GTIN: 4052568018443

Technical Data

  • Nominal size4.5 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack10
  • Operating pressure complete temperature range-0.95 bar ... 16 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Max. tightening torque5 Nm
  • Product weight3.33 g
  • Pneumatic connection, port 1Male thread G1/8
  • Pneumatic connection, port 2For tubing I.D. 6 mm
  • Note on materialsRoHS-compliant
  • Material housingAnodised aluminium

Downloads

CN_EN.PDF

Technical data

Links

Spare parts

Barbed hose fittingBarbed hose fitting

Barbed hose fitting

SKU 3605
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
