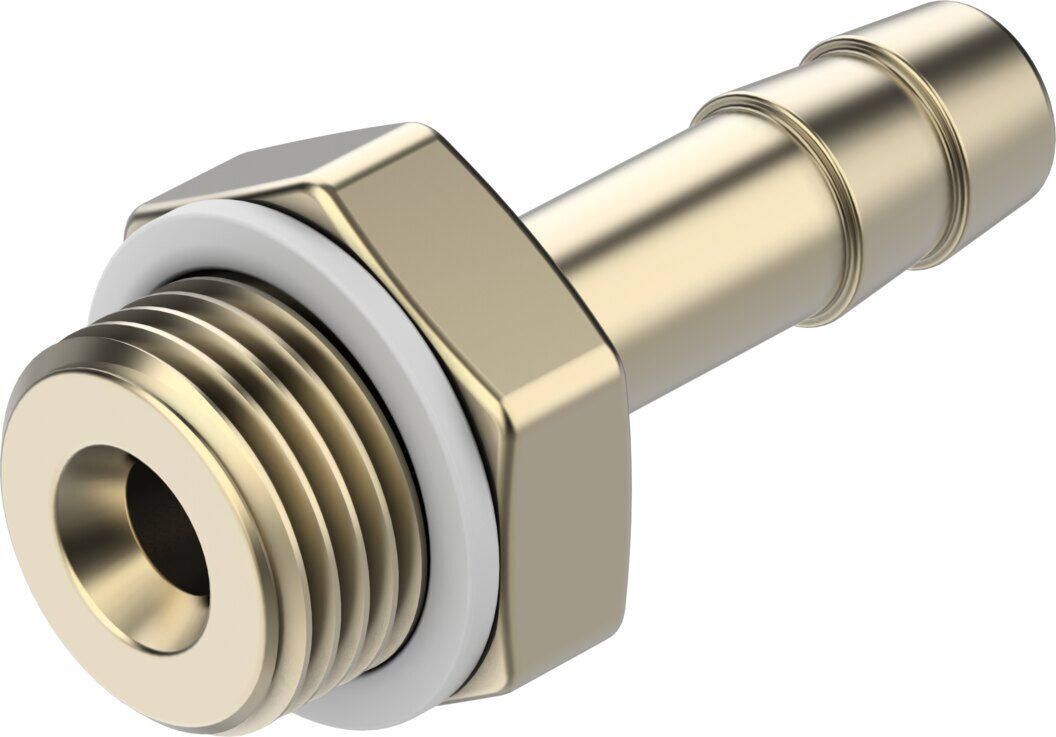

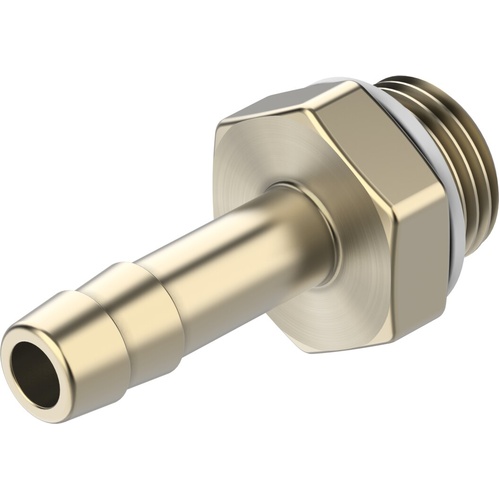

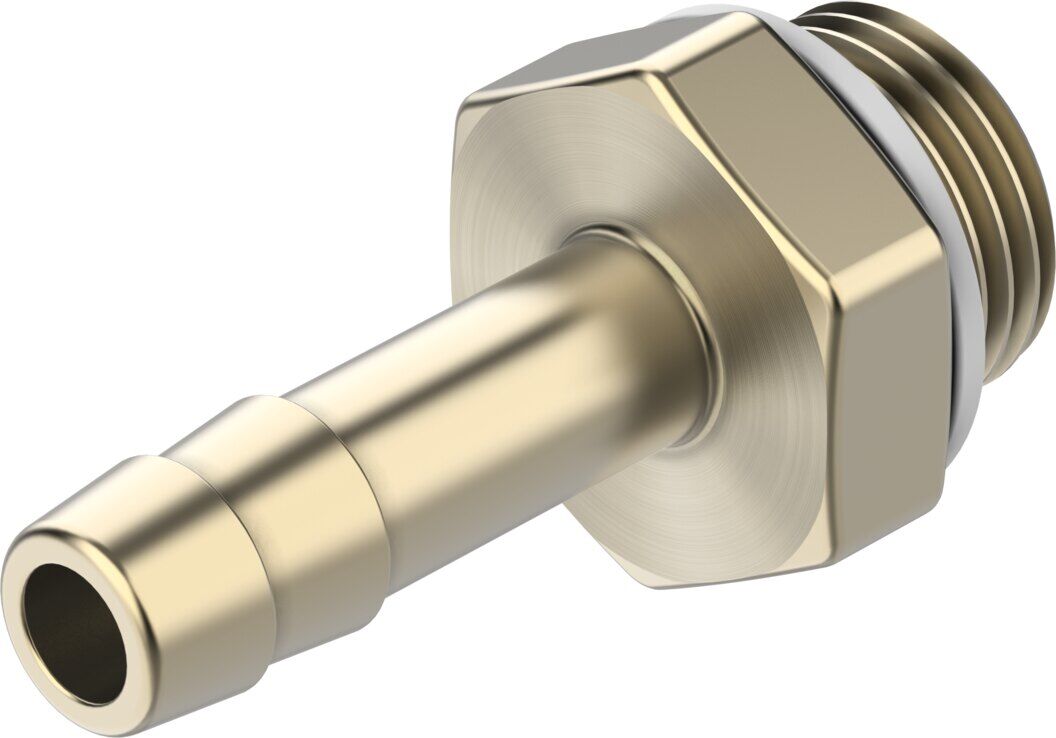

Barbed hose fitting

N-3/8-P-13-MS

36161





GTIN: 4052568023430

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing inside diameter of 13 mm
Nominal size
11 mm

Technical Data

  • Nominal size11 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack1
  • Operating pressure complete temperature range-0.95 bar ... 16 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Max. tightening torque15 Nm
  • Product weight31.97 g
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing inside diameter of 13 mm
  • Note on materialsRoHS-compliant
  • Material housingBrass
SKU 36161
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
