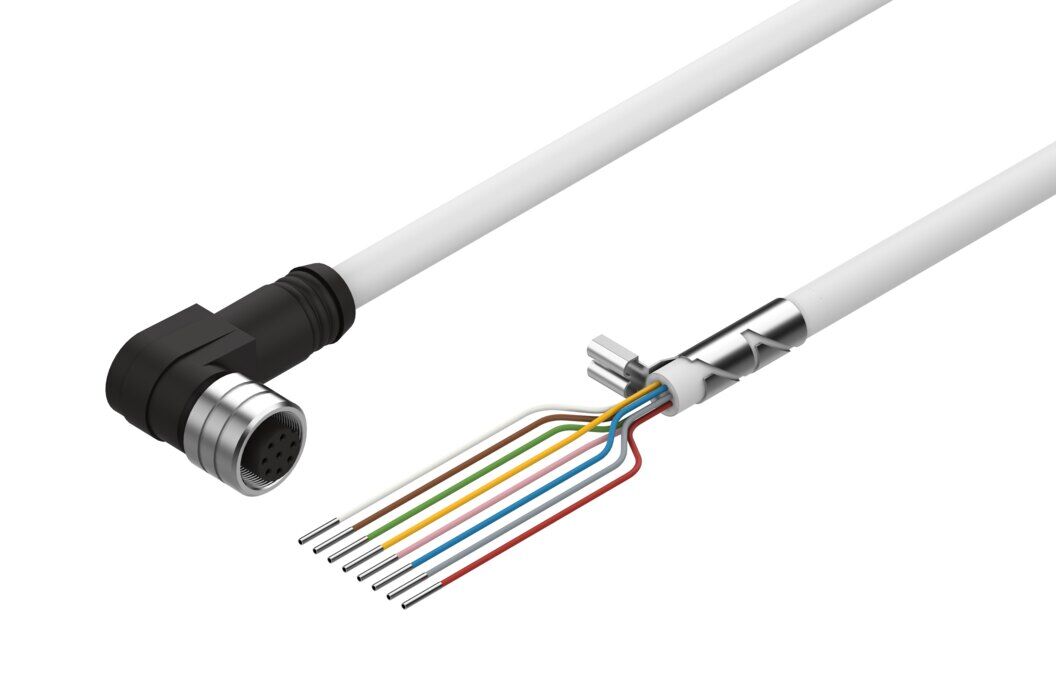

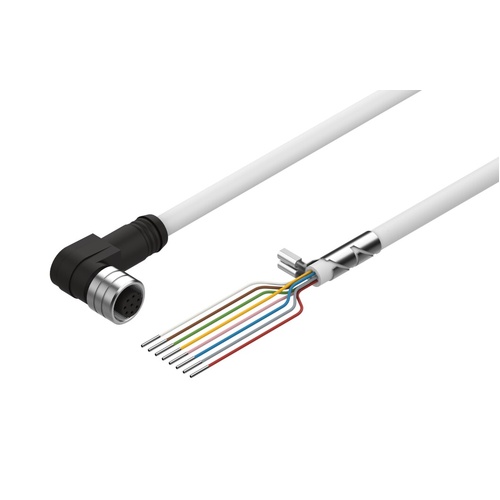

Encoder cable

NEBM-M12W8-E-5-LE8

1451676





GTIN: 4052568233013

Electrical connection 1, connection type
Socket
Electrical connection 1, connector system
M12x1, A-coded to EN 61076-2-101
Electrical connection 2, connection type
Cable
Electrical connection 2, connector system
Open end
Cable length
5 m

Technical Data

  • Cable designationWithout inscription label holder
  • Electrical connection 1, functionField device side
  • Electrical connection 1, designRound
  • Electrical connection 1, connection typeSocket
  • Electrical connection 1, cable outletAngled
  • Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
  • Electrical connection 1, number of connections/cores8
  • Electrical connection 1, used connections/cores8
  • Electrical connection 1, connection pattern00992265
  • Electrical connection 2, functionController side
  • Electrical connection 2, connection typeCable
  • Electrical connection 2, connector systemOpen end
  • Electrical connection 2, number of connections/cores8
  • Electrical connection 2, used connections/cores8
  • Operational voltage range DC0 V ... 30 V
  • Nominal operating voltage DC24 V
  • Operational voltage range AC0 V ... 30 V
  • Nominal operating voltage AC24 V
  • Shieldingyes
  • Cable length5 m
  • Cable characteristicSuitable for energy chains
  • Bending radius, moving cable≥68 mm
  • Cable diameter6.8 mm
  • Cable structure4 x 2 x 0.14 mm²
  • Nominal cross section conductor0.14 mm²
  • Wire endsWire ferrule
  • Degree of protectionIP65
  • Note on degree of protectionIn assembled state
  • Ambient temperature-40 °C ... 80 °C
  • Ambient temperature with moving cable-5 °C ... 80 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS-compliant
  • Material cable sheathTPE-U(PUR)
  • Cable sheath colourGrey



SKU 1451676
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
