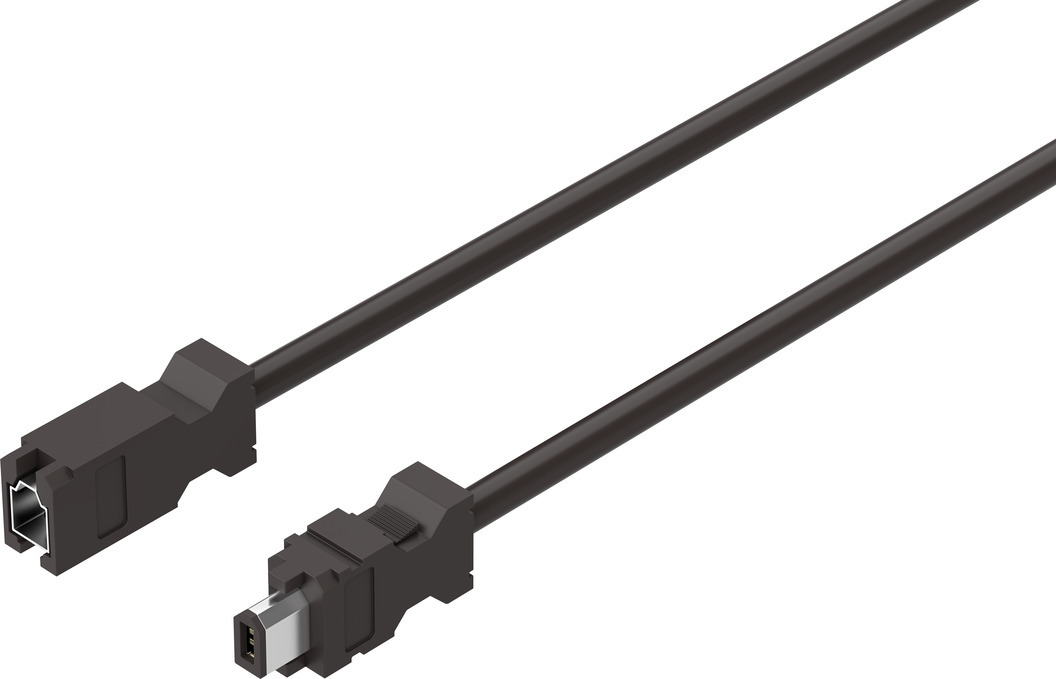

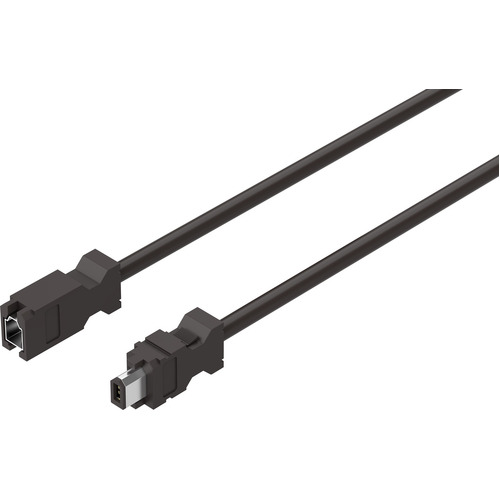

Encoder cable

NEBM-REG6-E-15-Q14N-REG6

8097200

GTIN: 4052568459260

Downloads

Product information

Technical data

CAD data

Links

Spare parts

Pieces



Electrical connection 1, connection type Socket

Electrical connection 1, connector system Connection pattern RE

Electrical connection 2, connection type Plugs

Electrical connection 2, connector system Connection pattern RE

Cable length 15 m

Technical Data

• Cable designationWithout inscription label holder
• Electrical connection 1, functionField device side
• Electrical connection 1, designAngular
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletStraight
• Electrical connection 1, connector systemConnection pattern RE
• Electrical connection 1, number of connections/cores6
• Electrical connection 1, used connections/cores6
• Electrical connection 1, connection pattern00995793
• Electrical connection 2, functionController side
• Electrical connection 2, designAngular
• Electrical connection 2, connection typePlugs
• Electrical connection 2, cable outletStraight
• Electrical connection 2, connector systemConnection pattern RE
• Electrical connection 2, number of connections/cores6
• Electrical connection 2, used connections/cores6
• Electrical connection 2, connection pattern00995792
• Operational voltage range DC0 V ... 30 V
• Operational voltage range AC0 V ... 30 V
• Current rating at 40° C1.6 A
• Immunity to surge2 kV
• Cable length15 m
• Cable characteristicSuitable for energy chains
• Test conditions cableTest conditions on request
• Bending radius, fixed cable≥55 mm
• Bending radius, moving cable≥55 mm
• Cable diameter7.4 mm
• Cable structure2 x 0.51 mm² + 4 x 0.205 mm²
• Nominal cross section conductor0.205 mm²
• Conductor nominal cross sectionAWG20 AWG24
• Degree of protectionIP20
• Note on degree of protectionIn assembled state
• Ambient temperature-40 °C ... 80 °C
• Ambient temperature with moving cable-10 °C ... 80 °C
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• CE marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364 zone III
• Note on materialsRoHS-compliant
• Pollution degree3
• Corrosion resistance class CRC0 - No corrosion stress
• Material cable sheath PVC
• Cable sheath colour Black
• Material housing PVC
• Housing colour grey
• Material insulating sheath PVC
