Product Lifecycle Information




Product is planned to be discontinued. Do not use for new designs.



10/2024 - Product is being phased out. Do not use for new designs.




06/2027 - Product is discontinued. Products for replacement may be available while stocks permit.




06/2027 - Product is discontinued.

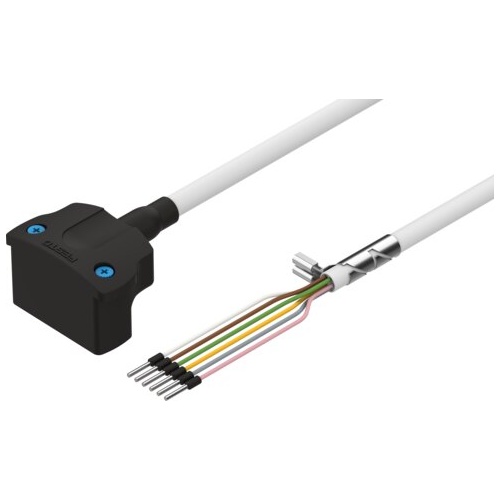

Motor cable

NEBM-S1W15-E-7-Q7-LE6

1450946





GTIN: 4052568232924

Electrical connection 1, connection type
Socket
Electrical connection 1, connector system
Sub-D
Electrical connection 2, connection type
Cable
Electrical connection 2, connector system
Open end
Cable length
7 m

Technical Data

  • Cable designationWithout inscription label holder
  • Electrical connection 1, functionField device side
  • Electrical connection 1, designAngular
  • Electrical connection 1, connection typeSocket
  • Electrical connection 1, cable outletAngled
  • Electrical connection 1, connector systemSub-D
  • Electrical connection 1, number of connections/cores15
  • Electrical connection 1, used connections/cores10
  • Electrical connection 1, connection pattern00995640
  • Electrical connection 2, functionController side
  • Electrical connection 2, connection typeCable
  • Electrical connection 2, connector systemOpen end
  • Electrical connection 2, number of connections/cores6
  • Electrical connection 2, used connections/cores6
  • Operational voltage range DC0 V ... 72 V
  • Nominal operating voltage DC24 V
  • Shieldingyes
  • Cable length7 m
  • Cable characteristicSuitable for energy chains
  • Bending radius, moving cable≥80 mm
  • Cable diameter8 mm
  • Cable structure6 x 0.75 mm²
  • Nominal cross section conductor0.75 mm²
  • Wire endsWire ferrule
  • Degree of protectionIP65
  • Note on degree of protectionIn assembled state
  • Ambient temperature-40 °C ... 80 °C
  • Ambient temperature with moving cable-5 °C ... 80 °C
  • CE mark (see declaration of conformity)In accordance with EU RoHS Directive
  • UKCA marking (see declaration of conformity)To UK RoHS instructions
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Note on materialsRoHS-compliant
  • Corrosion resistance class CRC0 - No corrosion stress
  • Material cable sheathTPE-U(PUR)
  • Cable sheath colourGrey
SKU 1450946
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
