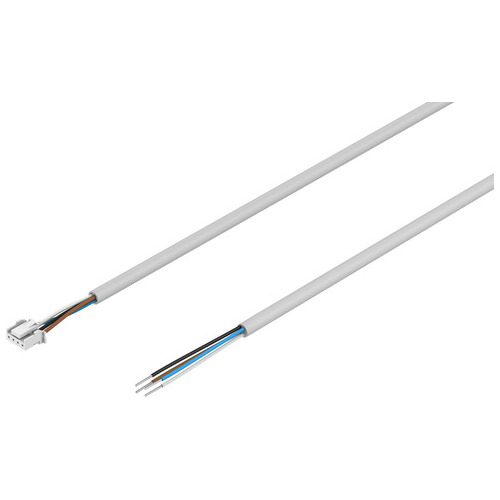

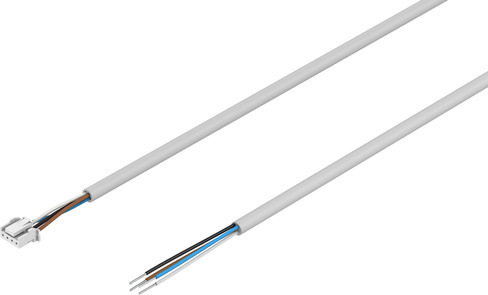

Connecting cable

NEBS-L1G4-K-2.5-LE4

572576

Technical Data

• Cable designationWith label holder
• Frequency of connection100
• Product weight53 g
• Electrical connection 1, functionField device side
• Electrical connection 1, designAngular
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletStraight
• Electrical connection 1, connector systemConnection pattern L1J
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, used connections/cores4
• Electrical connection 1, type of mountingSnap-locking
• Electrical connection 1, connection pattern00995720
• Electrical connection 2, functionController side
• Electrical connection 2, connection typeCable
• Electrical connection 2, connector systemOpen end
• Electrical connection 2, number of connections/cores4
• Electrical connection 2, used connections/cores4
• Operational voltage range DC0 V ... 30 V
• Current rating at 40° C1 A
• Immunity to surge0.8 kV
• Cable length2.5 m
• Cable characteristicStandard
• Test conditions cableTest conditions on request
• Bending radius, fixed cable≥13 mm
• Bending radius, moving cable≥42 mm
• Cable diameter4.1 mm
• Cable diameter tolerance± 0.15 mm
• Cable structure4 x 0.17 mm²
• Nominal cross section conductor0.17 mm²
• Wire endsCut off bluntly
• Degree of protectionIP40
• Note on degree of protectionIn assembled state
• Ambient temperature-20 °C ... 60 °C
• Ambient temperature with moving cable-5 °C ... 60 °C
• Storage temperature-20 °C ... 60 °C
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364 zone III
• Note on materialsRoHS-compliant
• Pollution degree2
• Corrosion resistance class CRC4 - Very high corrosion stress
• Material cable sheathPVC
• Cable sheath colourGrey
• Material housingPA
• Housing colourWhite
• Material electrical contactBronze, tin-plated
• Material insulating sheathPVC

GTIN: 4052568058890
