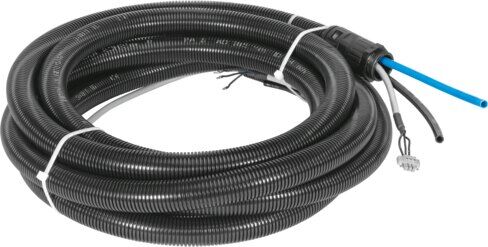

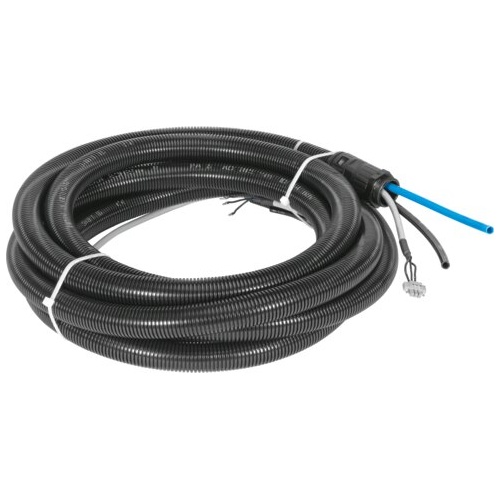

Connecting cable

NHSB-A1-5-BLG3-LE3-PU8-2XBB

1686608





GTIN: 4052568244804



Technical Data

  • Protective conduit length5 m
  • Mounting positionAny
  • Outdoor applicationsWeather-protected application areas Class C1 based on IEC 60654-1
  • Operational voltage range DC0 V ... 30 V
  • LABS (PWIS) conformityVDMA24364 zone III
  • Relative air humidity5 - 100% Condensing
  • Degree of protectionIP65 IP67 IP69K NEMA 4
  • Ambient temperature-20 °C ... 60 °C
  • Ambient temperature with moving cable-5 °C ... 60 °C
  • Electrical connection 1Straight plug, 3-pin
  • Electrical connection 2Open end, 3-core
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible
  • Pneumatic connectionFor tubing O.D. 8 mm
  • Min. cable bending radius100 mm
  • Cable structure3 x 0.75 mm²
  • Product weight1250 g
  • Note on materialsRoHS compliant
  • Material conduitProcess automation
  • Material protective conduit fittingProcess automation
  • Material cable sheathPVC
  • Material sealsTPE





SKU 1686608
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
