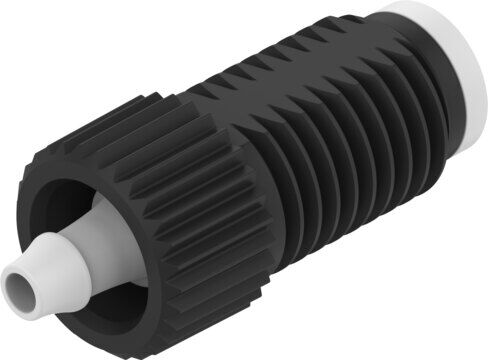

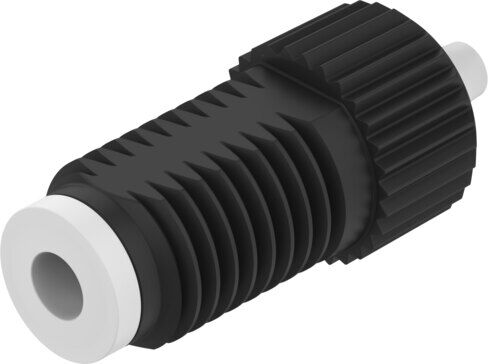

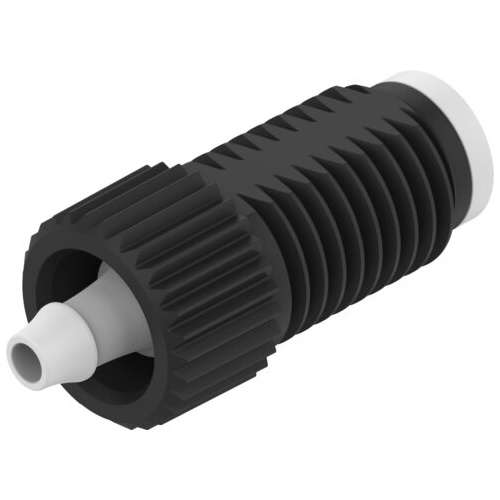

Fitting

NLFA-D-U14-B2.1-PP-P10

8104289





GTIN: 4052568578640

Fluid connection
UNF1/4-28
Fluid connection 2
For tubing I.D. 2.1 mm
Design
Straight design
Media temperature
0 °C - 35 °C
Design
Tubing mount via barbed connector

Technical Data

  • Size of pack10
  • DesignTubing mount via barbed connector
  • DesignStraight design
  • Sizeø 8 mm
  • Fluid connectionUNF1/4-28
  • Fluid connection 2For tubing I.D. 2.1 mm
  • MediumLiquid media Gaseous media
  • Note on the mediumObserve resistance of materials that come into contact with the media
  • Operating pressure complete temperature range-0.075 MPa ... 0.4 MPa
  • Operating pressure complete temperature range-0.75 bar ... 4 bar
  • Operating pressure complete temperature range-10.875 psi ... 58 psi
  • Media temperature0 °C ... 35 °C
  • Ambient temperature0 °C ... 35 °C
  • Storage temperature-20 °C ... 70 °C
  • Sealing principleHard
  • Mounting positionoptional
  • Nominal torque0.15 Nm
  • Tolerance for nominal tightening torque± 15%
  • Product weight0.5 g
  • Material in contact with the mediumPP
  • Material screwed plugPA-reinforced
  • Note on materialsRoHS-compliant
  • Suitable for use with foodSee supplementary material information
  • LABS (PWIS) conformityVDMA24364 zone III
  • Instructions on useSee application note (available on the Support Portal at festo.com)



SKU 8104289
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
