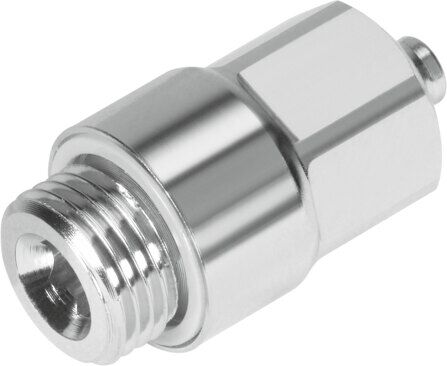

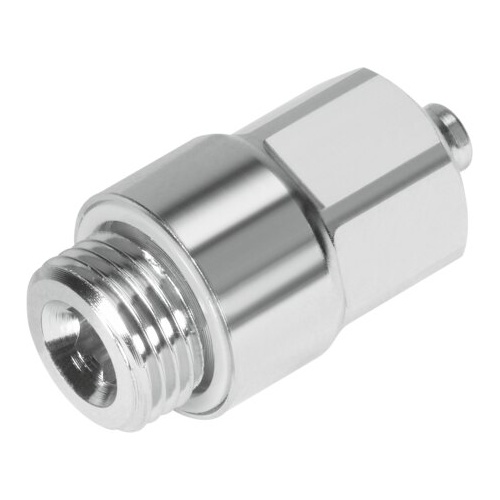

Fitting

NPCK-C-D-G38-K10

1489614





GTIN: 4052568106225

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing outside diameter of 10 mm
Nominal size
6.2 mm
Operating pressure complete temperature range
-0.95 bar - 12 bar

Technical Data

  • Nominal size6.2 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Operating pressure complete temperature range-0.095 MPa ... 1.2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 12 bar
  • Operating pressure complete temperature range-13.775 psi ... 174 psi
  • Note on operating pressureWater: max. 0.6 MPa at 0 - 85 °C Water vapour: 0 – 0.15 MPa, 0 – 1.5 bar, 0 – 22 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Water vapour
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Suitable for use with foodSee supplementary material information
  • Note on temperature of mediumWater vapour: max. 120 °C
  • Degree of protectionIP69K
  • Ambient temperature-20 °C ... 120 °C
  • Note on ambient temperatureThe NPCK can be used from -40 to 60 °C when using suitable tubing and observing the maximum operating pressure of the tube.
  • Nominal torque35 Nm
  • Note on the nominal tightening torque12 Nm +/- 10% for NPCK on MPA-C
  • Tolerance for nominal tightening torque± 10%
  • Product weight51.15 g
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing outside diameter of 10 mm
  • Material union nutHigh-alloy stainless steel
  • Material screwed plugHigh-alloy stainless steel
  • Note on materialsRoHS-compliant
  • Material sealing ringPEEK





SKU 1489614
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
