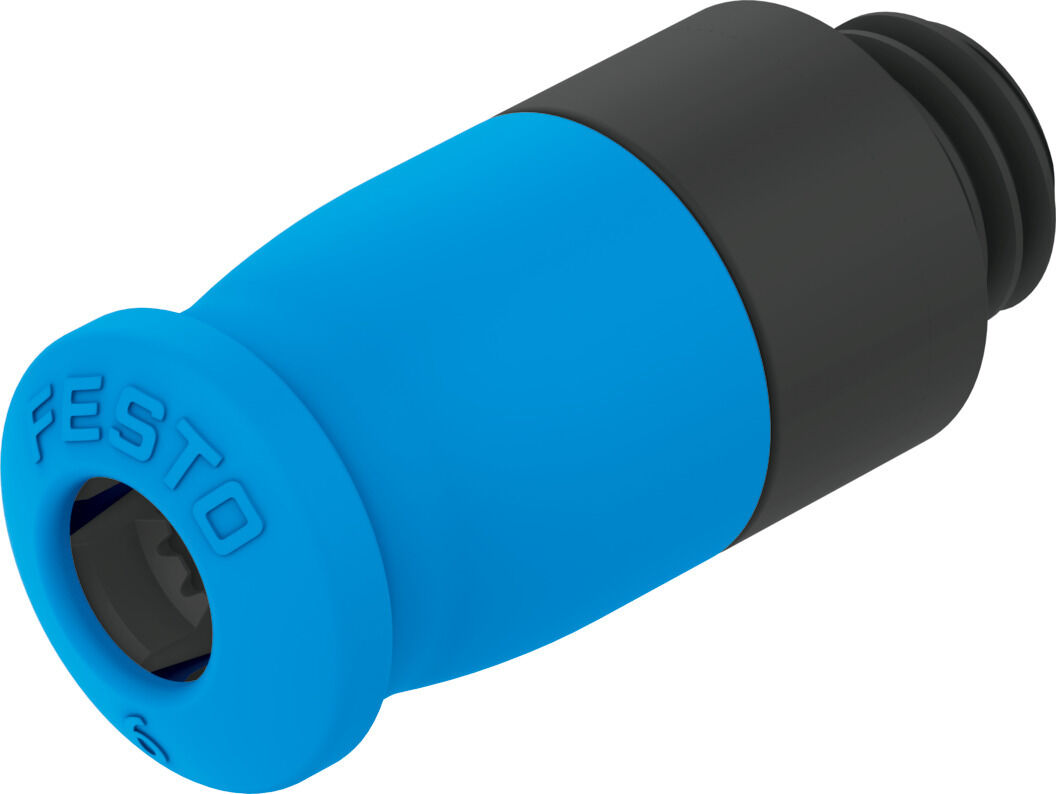

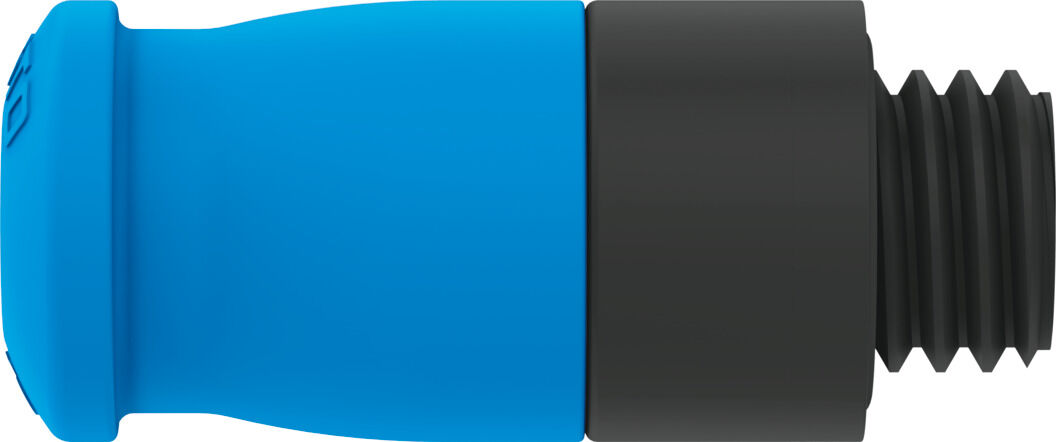

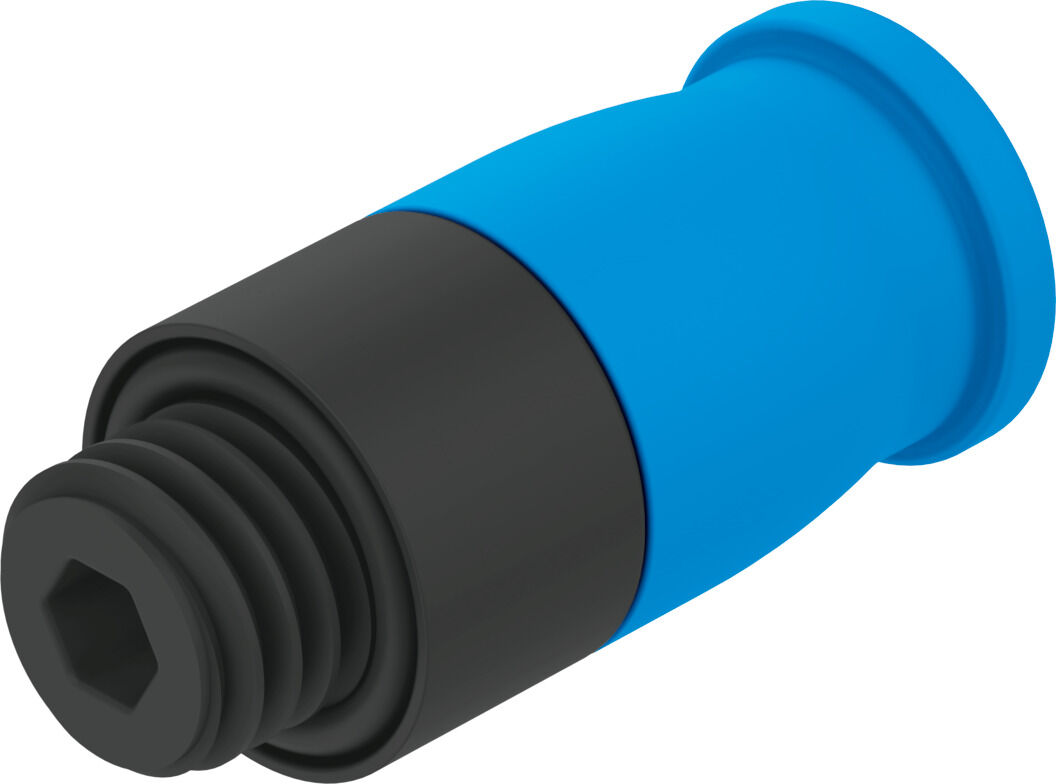

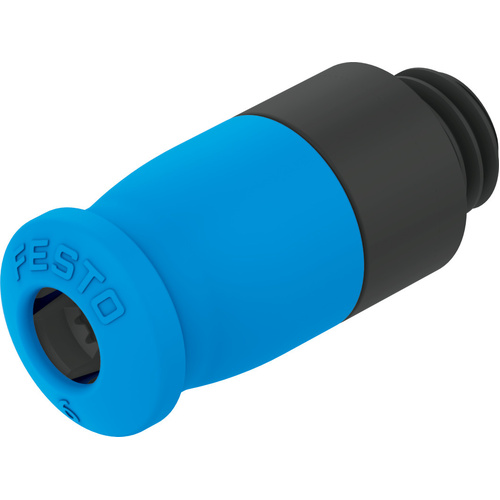

Click fitting (x100 pack)

NPKA-D-G18-Q6-P10

1243489

Technical Data

  • SizeStandard
  • Nominal size4 mm
  • Tubing insertion depth25.8 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure-0.095 MPa ... 1 MPa
  • Operating pressure-0.95 bar ... 10 bar
  • Operating pressure-13.775 psi ... 145 psi
  • Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-10 °C ... 60 °C
  • Max. tightening torque2 Nm
  • Nominal torque1.25 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight4.2 g
  • Pneumatic connection, port 1Male thread G1/8
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm
  • Note on materialsRoHS-compliant
  • Material housingPA66-GF30
  • Material thread sealNBR
  • Material sleevePOM
  • Material tubing sealNBR



GTIN: 4052568061838



Pneumatic connection, port 1
Male thread G1/8
Pneumatic connection, port 2
For tubing outside diameter of 6 mm
Ambient temperature
-10 °C - 60 °C
SKU 1243489
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
