NPQH-D-G14F-Q8-P10

Pack of 100

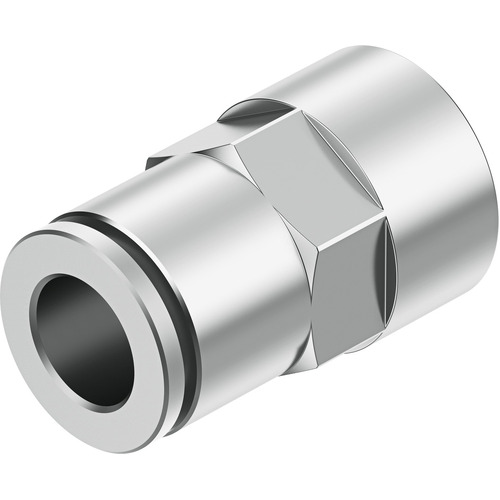

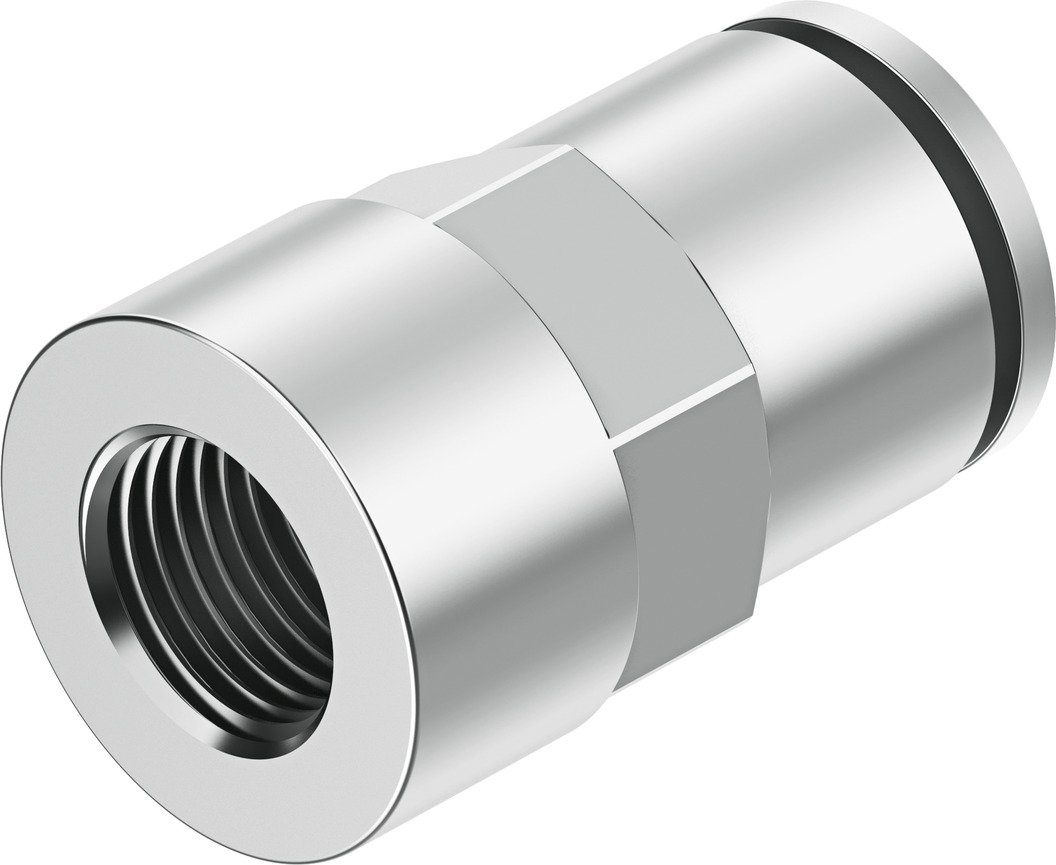

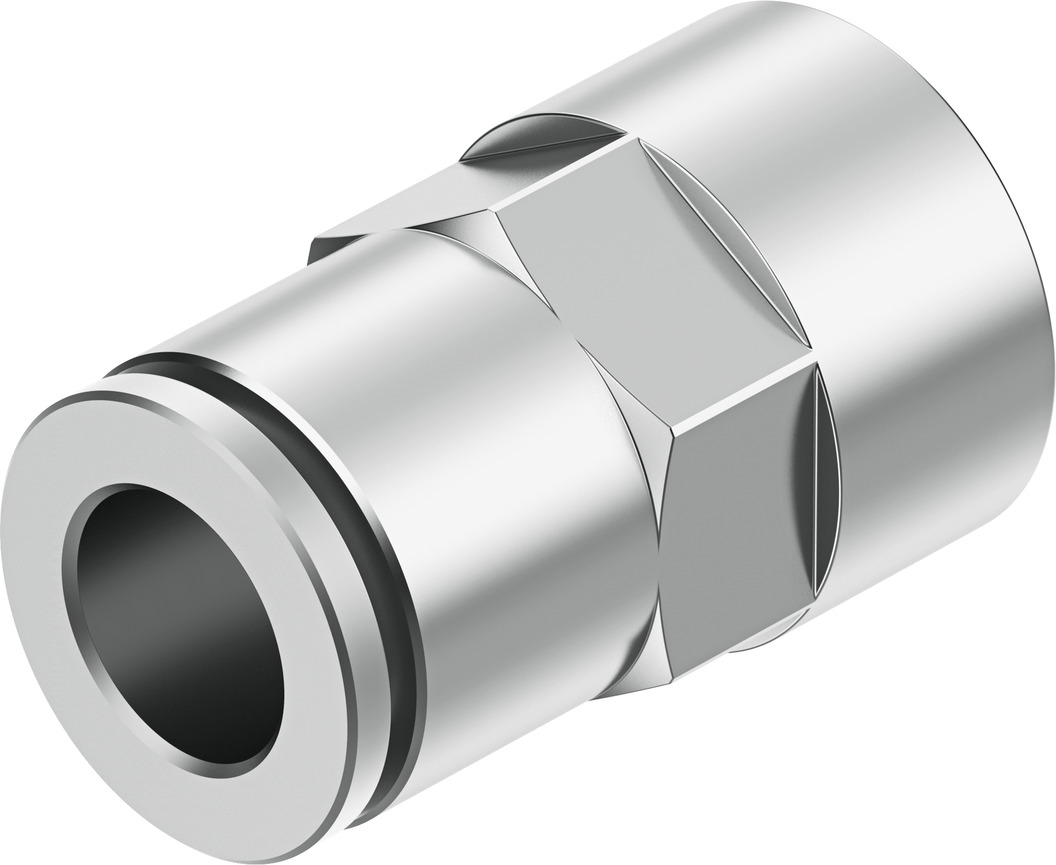

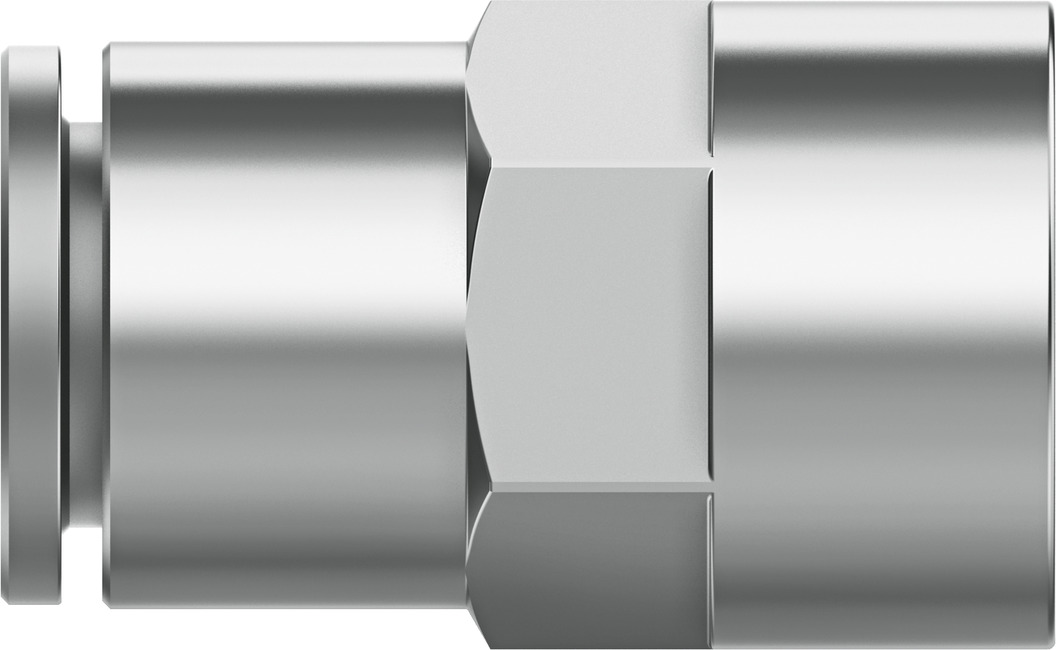

Push-in fitting

NPQH-D-G14F-Q8-P10

578357

• Solid-metal brass, chemically nickel-plated
• High corrosion and chemical resistance
• Highly resistant to temperatures and pressure

Push-in fitting

NPQH-D-G14F-Q8-P10

578357

GTIN: 4052568060602

Technical Data

• SizeStandard
• Nominal size7 mm
• Tubing insertion depth16 mm
• Mounting positionoptional
• DesignStraight design
• Size of pack10
• DesignPush-pull principle
• Symbol00997424
• Operating pressure complete temperature range-0.095 MPa ... 2 MPa
• Operating pressure complete temperature range-0.95 bar ... 20 bar
• Operating pressure complete temperature range-13.775 psi ... 290 psi
• Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
• Certificate issuing authorityNSF C0523185
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC3 - high corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
• Suitable for use with foodSee declaration of conformity NSF/ANSI 169
• Ambient temperature0 °C ... 150 °C
• Product weight20.3 g
• Type of mountingExternal hexagon, size 14 mm
• Pneumatic connection, port 1Female thread G1/4
• Pneumatic connection, port 2For tubing outside diameter of 8 mm
• Colour of release ringSilver
• Note on materialsRoHS-compliant
• Material housingBrass, chemically nickel-plated
• Guard ring materialPEI
• Material release ringBrass, chemically nickel-plated
• Material tubing sealFPM
• Material tubing clamp componentHigh-alloy stainless steel
• Thrust ring materialPEI

Downloads

NPQH_EN.PDF

Technical data

Links

Spare parts

Pieces - 10

Pneumatic connection, port 1

Female thread G1/4

Pneumatic connection, port 2

For tubing outside diameter of 8 mm

Operating pressure complete temperature range -0.95 bar - 20 bar

Ambient temperature 0 °C - 150 °C

Nominal size 7 mm
