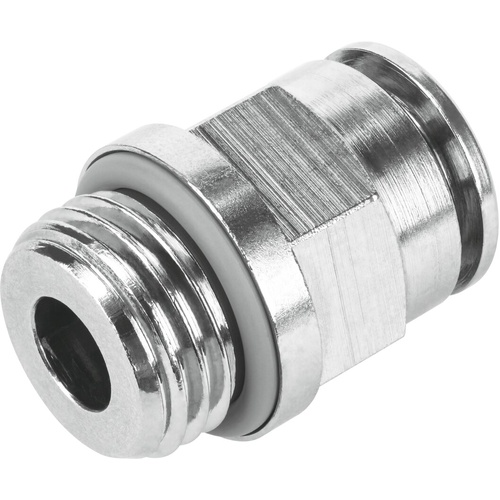

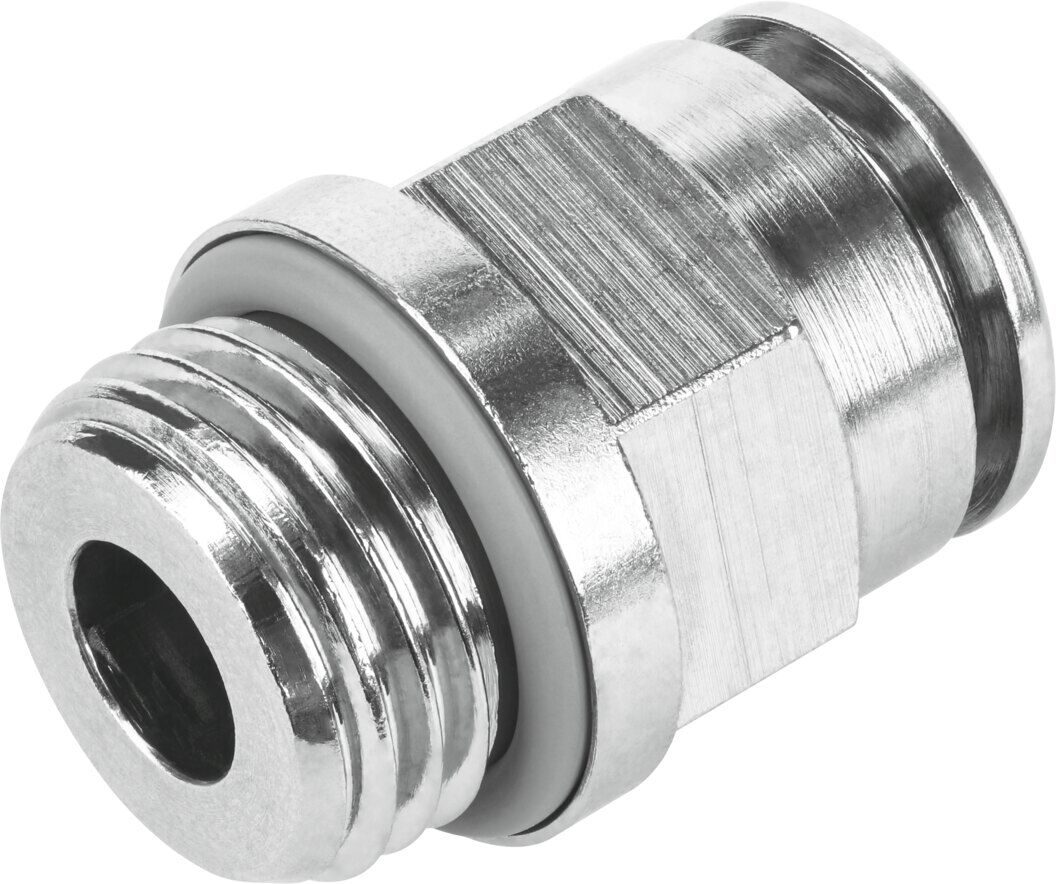

Push-in fitting

NPQH-D-G38-Q12-P10

578347





GTIN: 4052568060503

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing outer diameter of 12 mm
Operating pressure complete temperature range
-0.95 bar - 20 bar
Ambient temperature
0 °C - 150 °C
Nominal size
10 mm

Technical Data

  • SizeStandard
  • Nominal size10 mm
  • Tubing insertion depth19.5 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack10
  • DesignPush-pull principle
  • Symbol00997424
  • Operating pressure complete temperature range-0.095 MPa ... 2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 20 bar
  • Operating pressure complete temperature range-13.775 psi ... 290 psi
  • Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
  • Certificate issuing authorityNSF C0523185
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Suitable for use with foodSee declaration of conformity NSF/ANSI 169
  • Ambient temperature0 °C ... 150 °C
  • Nominal torque9 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight29.8 g
  • Type of mountingExternal hexagon, A/F 19 mm Internal hexagon, size 10 mm
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing outer diameter of 12 mm
  • Colour of release ringSilver
  • Note on materialsRoHS-compliant
  • Material housingBrass, chemically nickel-plated
  • Material thread sealFPM
  • Guard ring materialPEI
  • Material release ringBrass, chemically nickel-plated
  • Material tubing sealFPM
  • Material tubing clamp componentHigh-alloy stainless steel
  • Thrust ring materialPEI
