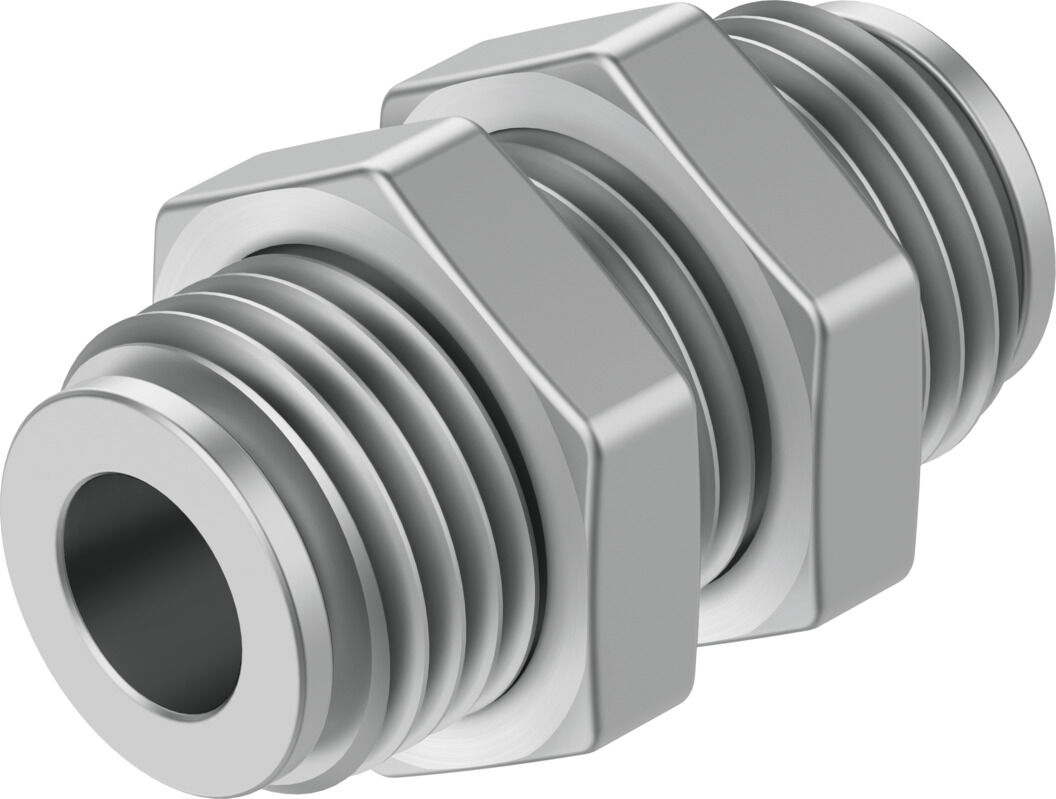

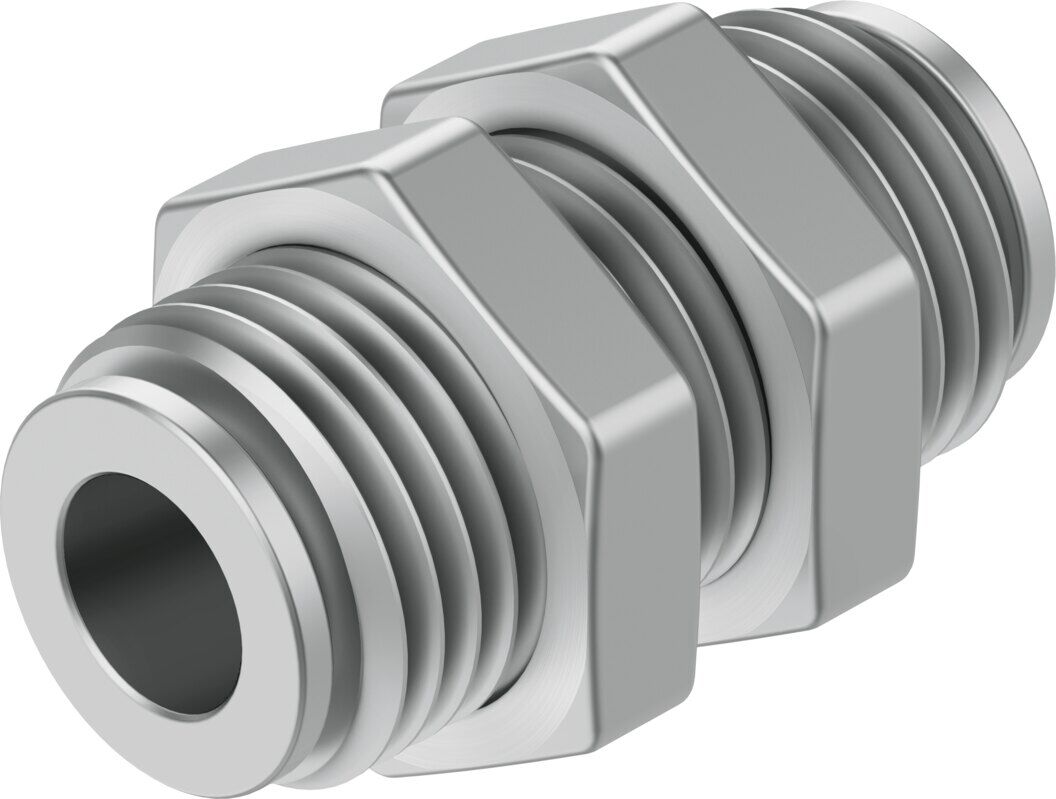

Push-in bulkhead connector

NPQH-H-Q8-E-P10

578301





GTIN: 4052568060046

Pneumatic connection, port 1
For tubing outer diameter of 8 mm
Pneumatic connection, port 2
For tubing outside diameter of 8 mm
Operating pressure complete temperature range
-0.95 bar - 20 bar
Ambient temperature
0 °C - 150 °C
Nominal size
7 mm

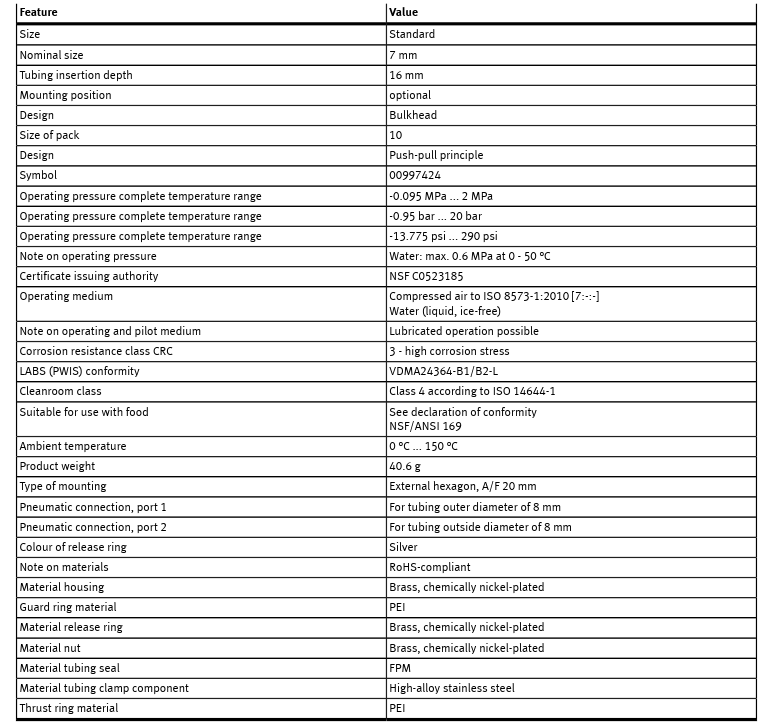

Technical Data

  • SizeStandard
  • Nominal size7 mm
  • Tubing insertion depth16 mm
  • Mounting positionoptional
  • DesignBulkhead
  • Size of pack10
  • DesignPush-pull principle
  • Symbol00997424
  • Operating pressure complete temperature range-0.095 MPa ... 2 MPa
  • Operating pressure complete temperature range-0.95 bar ... 20 bar
  • Operating pressure complete temperature range-13.775 psi ... 290 psi
  • Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
  • Certificate issuing authorityNSF C0523185
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
  • Suitable for use with foodSee declaration of conformity NSF/ANSI 169
  • Ambient temperature0 °C ... 150 °C
  • Product weight40.6 g
  • Type of mountingExternal hexagon, A/F 20 mm
  • Pneumatic connection, port 1For tubing outer diameter of 8 mm
  • Pneumatic connection, port 2For tubing outside diameter of 8 mm
  • Colour of release ringSilver
  • Note on materialsRoHS-compliant
  • Material housingBrass, chemically nickel-plated
  • Guard ring materialPEI
  • Material release ringBrass, chemically nickel-plated
  • Material nutBrass, chemically nickel-plated
  • Material tubing sealFPM
  • Material tubing clamp componentHigh-alloy stainless steel
  • Thrust ring materialPEI

Technical data

Push-in bulkhead connector

SKU 578301
Brand Festo
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
