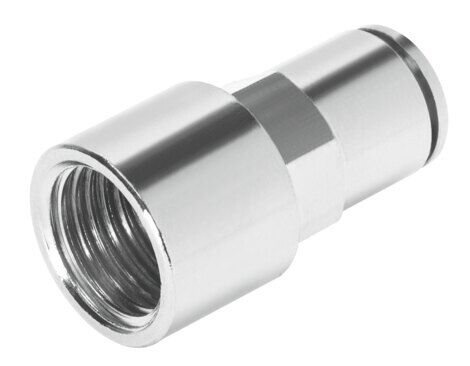

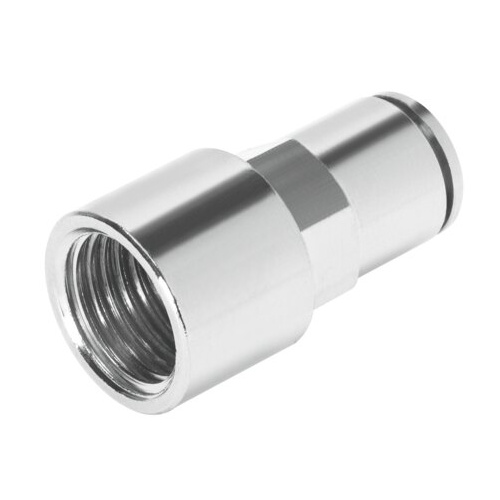

Technical Data

• SizeStandard
• Nominal size7 mm
• DesignStraight design
• Size of pack10
• DesignPush-pull principle
• Operating pressure complete temperature range-0.095 MPa ... 1.6 MPa
• Operating pressure complete temperature range-0.95 bar ... 16 bar
• Operating pressure complete temperature range-13.775 psi ... 232 psi
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 70 °C
• Product weight17.5 g
• Type of mountingExternal hexagon, size 14 mm
• Pneumatic connection, port 1Female thread G1/8
• Pneumatic connection, port 2For tubing outside diameter of 8 mm
• Colour of release ringSilver
• Note on materialsRoHS-compliant
• Material housingBrass, nickel-plated
• Material tubing sealNBR
